1980 Yamaha XS650 (XS650G) Frame Diagram

← All diagrams

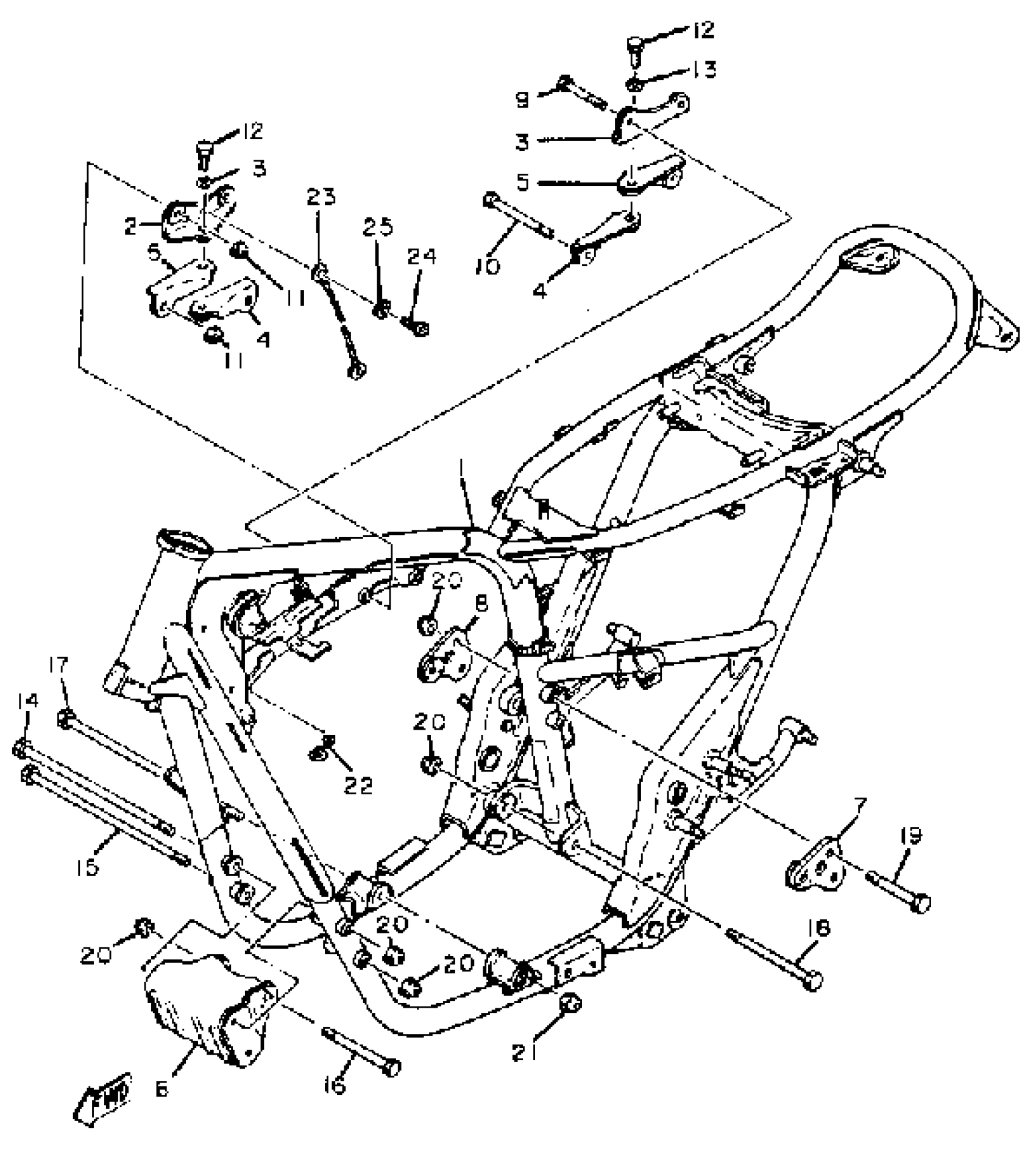

Find the part on the Frame diagram for your 1980 Yamaha XS650 (XS650G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha XS650 (XS650G) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(3G0-21110-00-33)

1
Out of stock

2

STAY, ENGINE 1

447-21314-00-00

1
Out of stock

3

STAY, ENGINE 2

447-21315-00-00

1
Out of stock

4

STAY, ENGINE 3

256-21316-01-00

1
Out of stock

5

STAY, ENGINE 4

256-21317-01-00

1
Out of stock

6

STAY, ENGINE 5

447-21318-00-98

1
Out of stock

7

STAY, ENGINE 6

447-21319-00-00

1
Out of stock

8

STAY, ENGINE 7

447-21387-00-00

1
Out of stock

9

BOLT, FLANGE

95817-08055-00

1

$2.82

In stock

10

BOLT, FLANGE

95817-08090-00

1

$3.54

In stock

11

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

12

BOLT, FLANGE(3GD)

95817-10025-00

1

$6.17

In stock

13

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

14

BOLT, WASHER BASED (3Y1)

90105-10139-00

1
Out of stock

15

BOLT, FLANGE

90105-10N53-00

1
Out of stock

16

BOLT, WASHER BASED(1RU)

90105-10747-00

—
Out of stock

17

BOLT, DOME HEAD

90106-10029-00

1
Out of stock

18

BOLT(30W)

90109-101A0-00

—

$14.05

In stock

19

BOLT, FLANGE(7LU)

95817-10070-00

—

$5.11

In stock

20

—

$6.02

In stock

21

—

$6.02

In stock

22

CLAMP

(90465-20138-00)

1
Out of stock

23

WIRE, LEAD

256-81615-00-00

1
Out of stock

24

SCREW, PAN HEAD(6A3)

97885-06008-00

1

$1.07

In stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
