1980 Yamaha XS650 (XS650G) Electrical 2 Diagram

← All diagrams

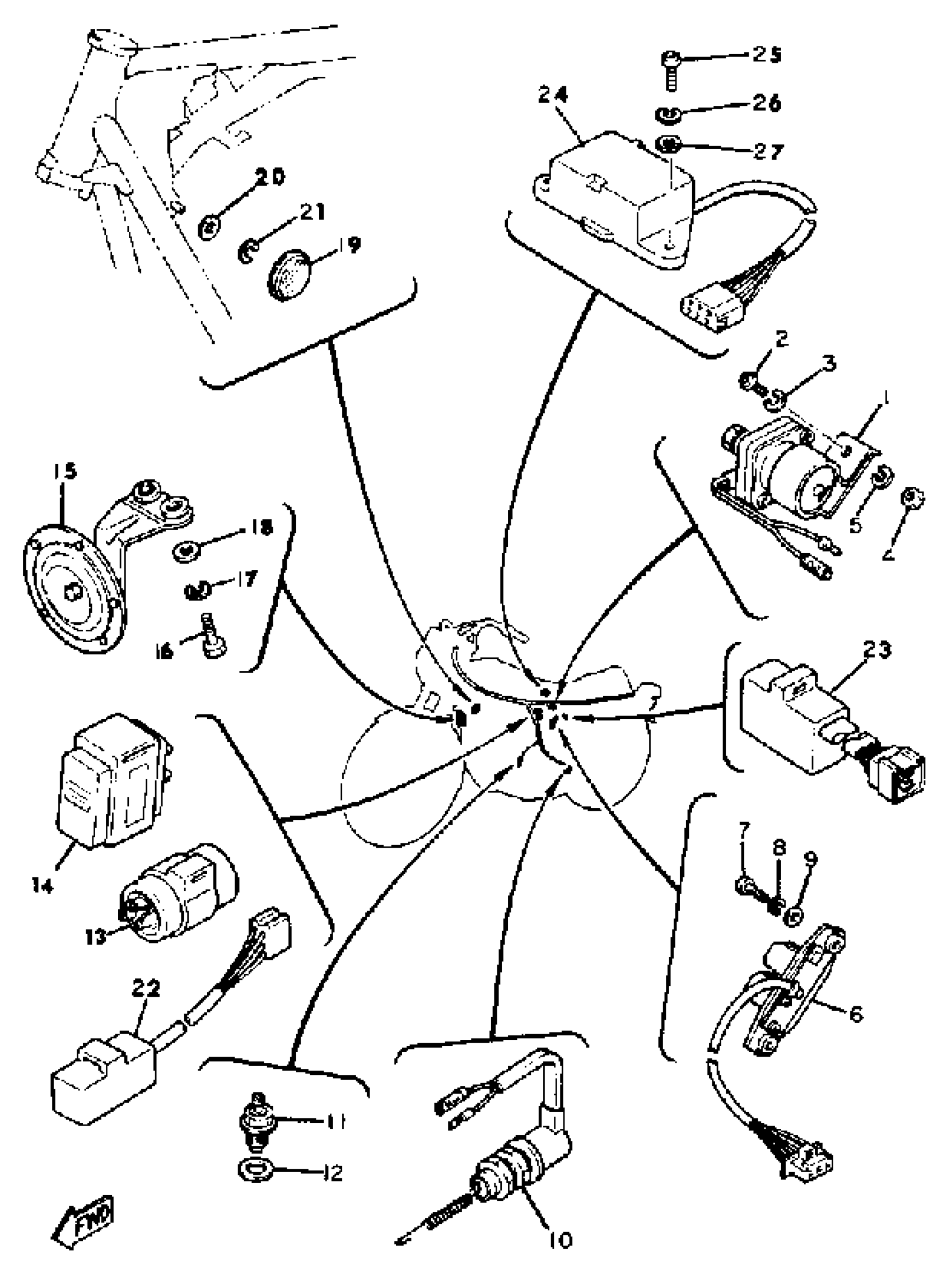

Find the part on the Electrical 2 diagram for your 1980 Yamaha XS650 (XS650G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha XS650 (XS650G) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER SWITCH ASSEMBLY

447-81940-10-00

1
Out of stock

2

SCREW, PAN

98507-06014-00

1
Out of stock

3

WASHER, SPRING

92995-06100-00

1
Out of stock

4

NUT(650)

95380-06700-00

1
Out of stock

5

WASHER, SPRING

92995-06100-00

1
Out of stock

6

RELAY ASSEMBLY

2F0-81950-50-00

1
Out of stock

7

SCREW, PAN HEAD (76T)

98517-06025-00

1
Out of stock

8

WASHER, SPRING

92995-06100-00

1
Out of stock

9

WASHER, PLATE

90201-06M08-00

1
Out of stock

10

STOP SWITCH ASSEMBLY

533-82530-02-00

1
Out of stock

11

NEUTRAL SWITCH ASSY

136-82540-03-00

1
Out of stock

12

WASHER, PLATE

90201-12790-00

1
Out of stock

13

FLASHER RELAY ASSY

2NV-83350-00-00

1
Out of stock

14

FLASHER RELAY ASSEMBLY

3G1-83350-70-00

1
Out of stock

15

HORN

3N0-83371-50-00

1
Out of stock

16

BOLT, HEXAGON

97017-08025-00

—
Out of stock

17

YBS67-8 WASHER, SPRING

92990-08100-00

—
Out of stock

18

WASHER, PLATE (4W3)

90201-086A3-00

—
Out of stock

19

REFLECTOR, FRONT 1

355-85111-01-00

—
Out of stock

20

. WASHER, PLAIN

92990-05200-00

1
Out of stock

21

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

22

FLASHER CANCELING UNIT

1A0-83395-03-00

1
Out of stock

23

CHECKER, LIGHT

2M0-84708-01-00

1
Out of stock

24

RSRV LIGHTING UNIT ASSEMBLY

1T3-84308-00-00

1
Out of stock

25

SCREW, PAN HEAD(6E5)

97880-06018-00

1
Out of stock

26

WASHER, SPRING

92995-06100-00

1
Out of stock

27

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock
