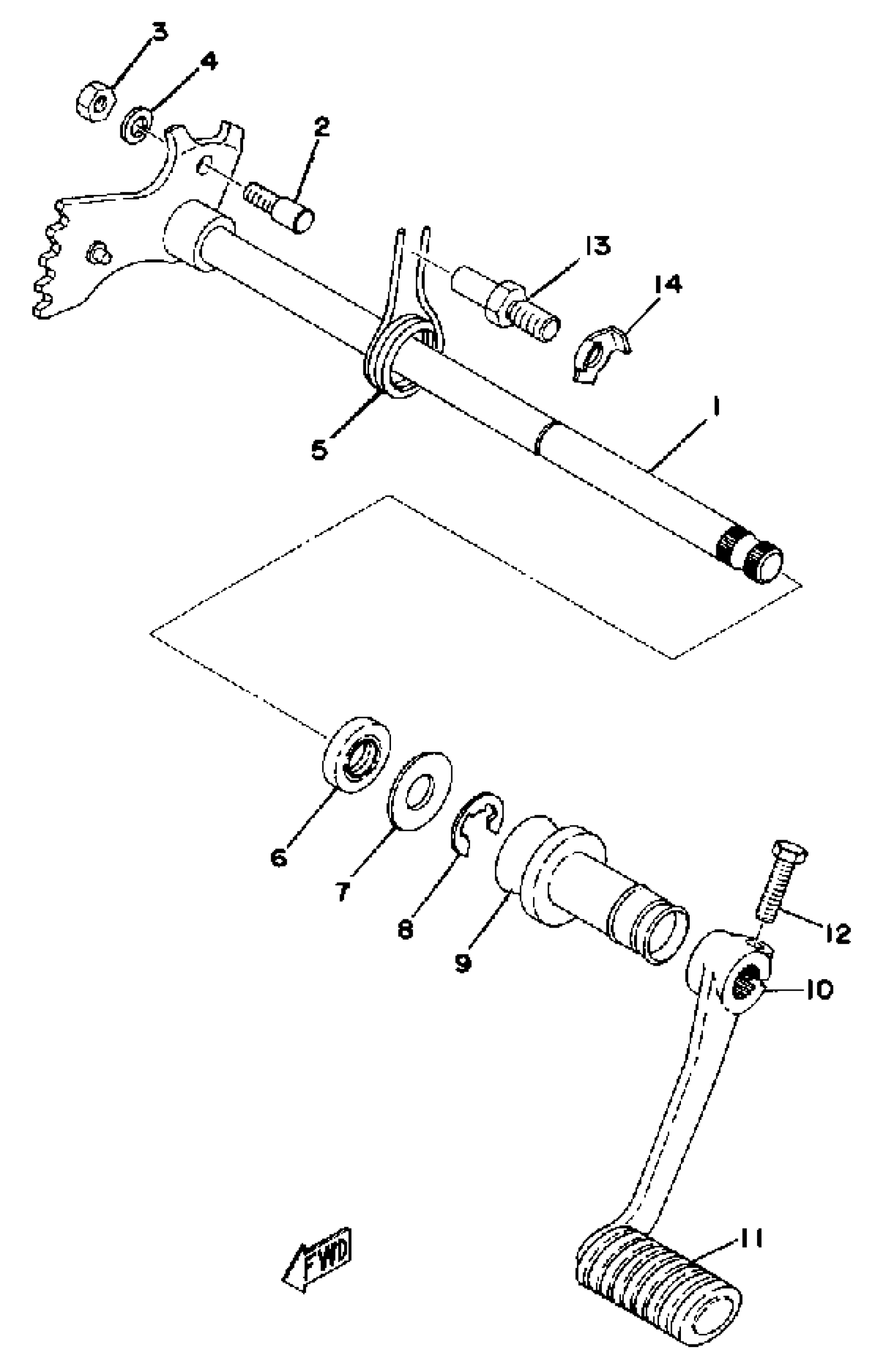

Yamaha XS500E (XS500) 1978 SHIFTER 2 Diagram

#

Description
Price

1

SHIFT SHAFT ASSEMBLY.1

371-18101-00-00

Unavailable

2

SCREW 214181860000

90149-06017-00

$5.59

3

NUT, HEXAGON

95380-06600-00

$4.11

4

WASHER, SPRING

92995-06100-00

$2.95

5

SPRING TORSION 214181240000

90508-32052-00

$5.23

6

SEAL, OIL (30X)

93102-12321-00

$9.45

7

WASHER, PLATE (353)

90201-12575-00

$5.75

8

CIRCLIP

99006-10600-00

$6.45

9

BOOT, SEALING

(371-18131-00-00)

Unavailable

10

PEDAL, SHIFT (371-18111-00-93)

1A8-18111-00-00

Unavailable

11

COVER, CHANGE PEDAL

132-18113-01-00

$5.96

12

BOLT, HEXAGON

97017-06020-00

$2.37

13

STOPPER, SCREW

278-18127-01-00

$15.32

14

WASHER

90215-08015-00

Unavailable
