1978 Yamaha XS500 (XS500E) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1978 Yamaha XS500 (XS500E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

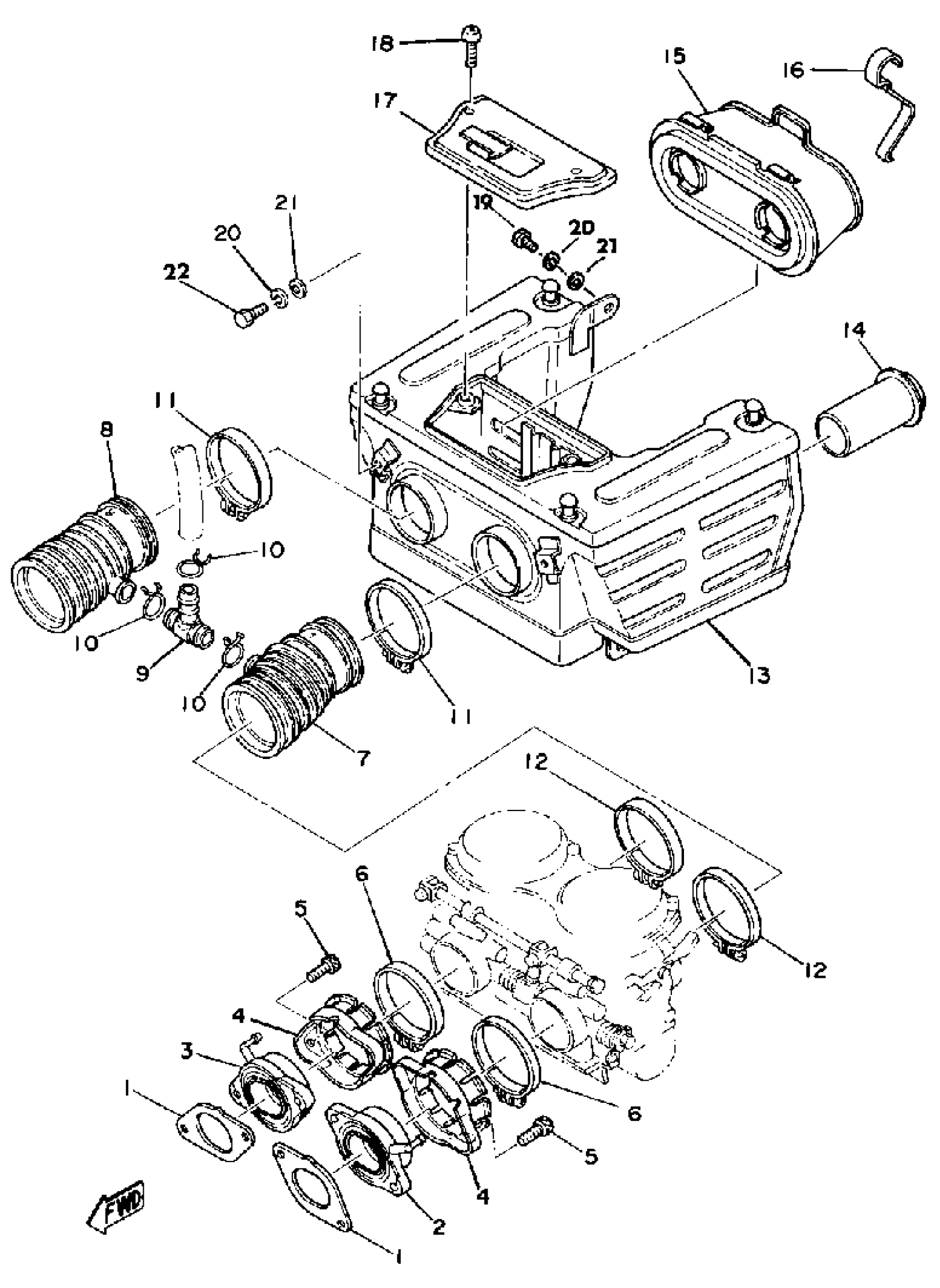

1978 Yamaha XS500 (XS500E) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, MANFOLD

2F1-13556-10-00

1
Out of stock

2

JOINT, CARBURETOR 1

2F1-13586-00-00

1
Out of stock

3

JOINT, CARBURETOR 2

2F1-13596-00-00

1
Out of stock

4

COVER, CARB.JOINT

(2F1-13564-00-00)

1
Out of stock

5

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

6

HOSE CLAMP ASSY

90450-53005-00

—

$8.63

In stock

7

JOINT, AIR CLNR 1

(2F1-14453-00-00)

1
Out of stock

8

JOINT, AIR CLNR 2

(2F1-14463-00-00)

1
Out of stock

9

WAY, 3

90413-13004-00

1
Out of stock

10

CLIP (371)

90467-14015-00

1

$7.51

In stock

11

HOSE CLAMP ASSY

90450-56002-00

1
Out of stock

12

CLAMP, HOSE

90460-61133-00

1
Out of stock

13

CASE, AIR CLEANER 1

(2F1-14411-00-00)

1
Out of stock

14

DUCT

(2F1-14437-00-00)

1
Out of stock

15

ELEMENT, AIR CLNR

2F1-14451-00-00

1
Out of stock

16

PLATE, ELEMENT FTNG

(2F1-14468-00-00)

1
Out of stock

17

CAP, CLEANER CASE 1

(2F1-14412-00-00)

1
Out of stock

18

SCREW, PANHEAD (A93)

98580-05525-00

—

$1.54

In stock

19

BOLT (661)

97013-06012-00

—

$4.71

In stock

20

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

21

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

22

BOLT

90101-06407-00

1
Out of stock
