1978 Yamaha XS500 (XS500E) Front Wheel Diagram

← All diagrams

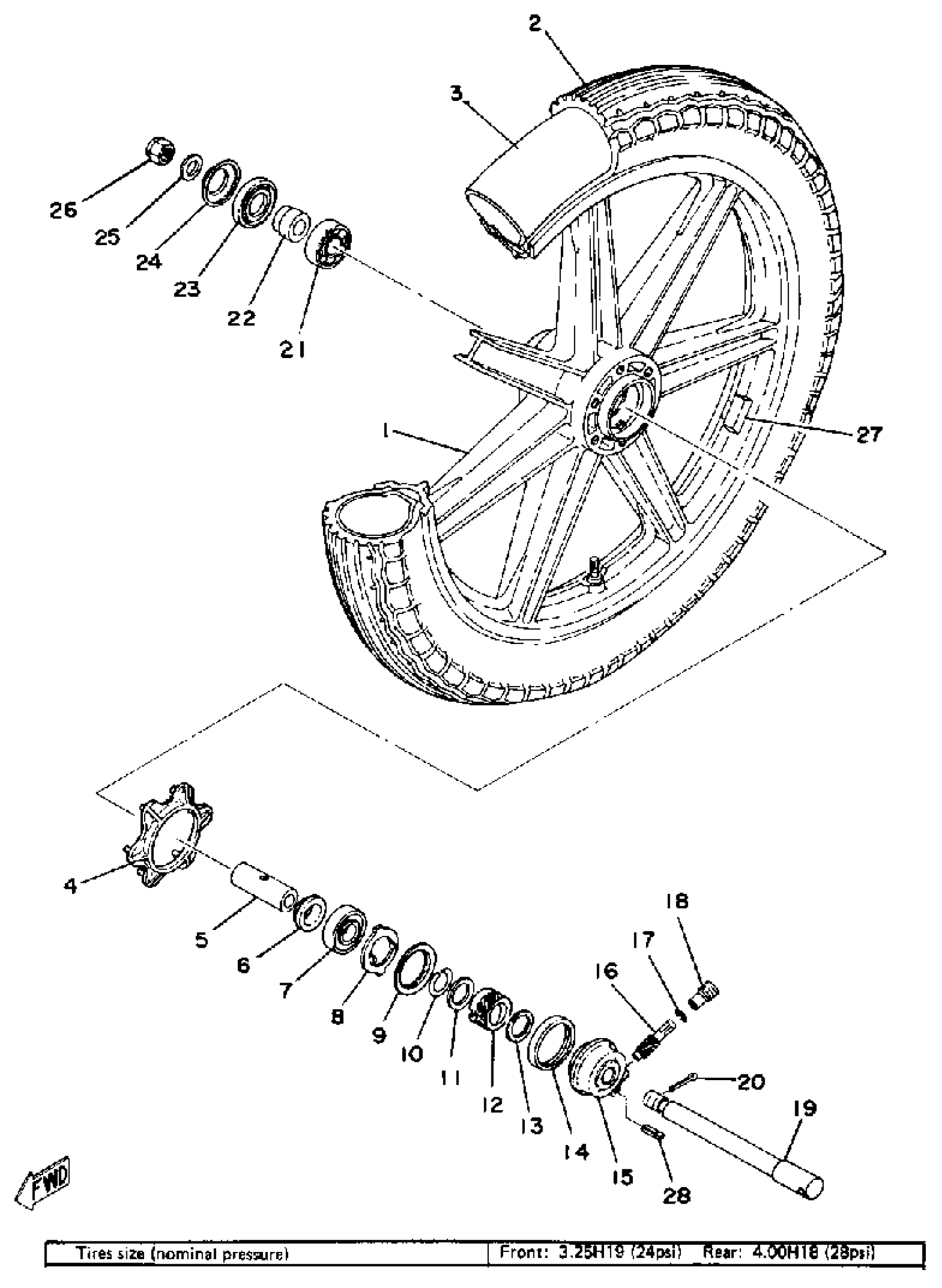

Find the part on the Front Wheel diagram for your 1978 Yamaha XS500 (XS500E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha XS500 (XS500E) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, CAST FRONT 000

(2F1-25168-20-00)

1
Out of stock

2

325H19Y986SPEDMSTR

(94132-19357-00)

1
Out of stock

3

TUBE

(94232-19064-00)

1
Out of stock

4

COVER, HOUSING

1U4-25847-00-00

1
Out of stock

5

SPACER

90560-17125-00

1
Out of stock

6

FLANGE, SPACER

146-25315-00-00

1

$6.38

In stock

7

BEARING(4HM)

93306-30317-00

1

$33.54

In stock

8

CLUTCH, METER (371,447)

341-25149-00-00

1
Out of stock

9

RETAINER, CLUTCH (371,447)

341-25846-00-00

1
Out of stock

10

RING, STOP

341-25137-00-00

1
Out of stock

11

WASHER PLATE 341251470000

90201-25286-00

—
Out of stock

12

GEAR, DRIVE

341-25135-01-00

1
Out of stock

13

WASHER PLATE 152172260000

90201-25490-00

1
Out of stock

14

OIL SEAL (45X56X6)

93105-45017-00

1
Out of stock

15

HOUSING, GEAR

341-25191-01-00

1
Out of stock

16

GEAR, METER

306-25138-00-00

1
Out of stock

17

SHIM, ROD

102-18416-00-00

1
Out of stock

18

BUSH

306-25136-00-00

1
Out of stock

19

AXLE, WHEEL

351-25181-10-00

1
Out of stock

20

PIN, COTTER

91490-30030-00

—

$7.15

In stock

21

BEARING(4HM)

93306-30317-00

1

$33.54

In stock

22

COLLAR

90387-17433-00

1
Out of stock

23

OIL SEAL (28X47X7-102)

93102-28022-00

—

$12.63

In stock

24

COVER, HUB DUST

341-25118-00-00

1
Out of stock

25

WASHER, PLAIN

92990-14200-00

—

$1.71

In stock

26

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock

27

BALANCER, WHEEL

5MT-25398-00-00

—

$15.54

In stock

27

BALANCER, WHEEL

5MT-25398-00-00

—

$15.54

In stock

28

PIN, SPRING (V60)

91609-20014-00

—

$1.78

In stock
