1982 Yamaha XS400S (XS400SJ) Speedometer Tachometer Diagram

← All diagrams

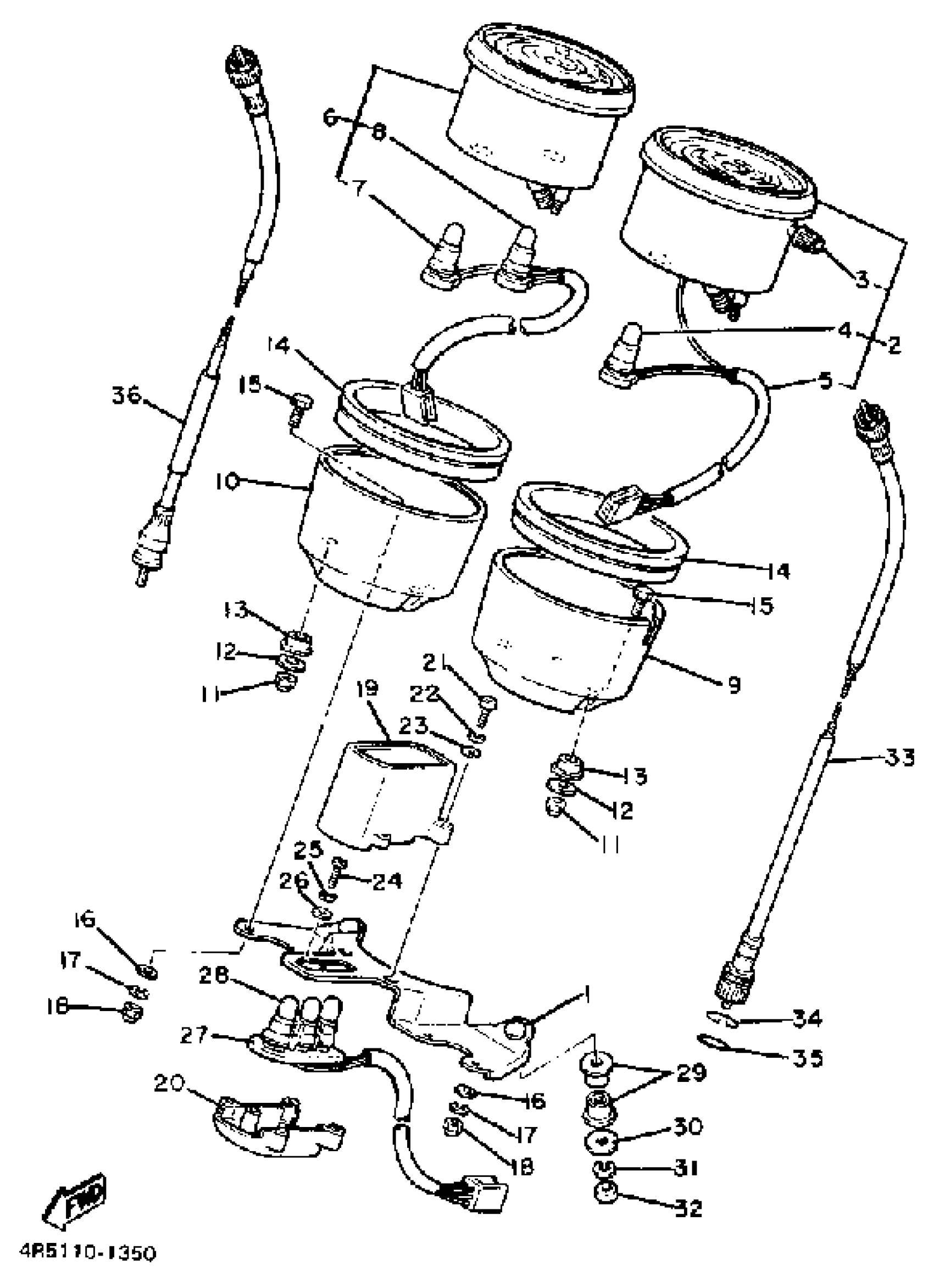

Find the part on the Speedometer Tachometer diagram for your 1982 Yamaha XS400S (XS400SJ), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XS400S (XS400SJ) Speedometer Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, METER

3F9-83519-01-00

1
Out of stock

2

SPEEDOMETER ASSY

5H1-83570-A0-00

1
Out of stock

3

KNOB, TRIP METER

4SV-83578-00-00

1
Out of stock

4

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

5

. SOCKET CORD ASSY

10M-83520-20-00

1
Out of stock

6

TACHOMETER ASSY

3J3-83540-A1-00

1
Out of stock

7

SOCKET CORD ASSEMBLY

(10M-83509-10-00)

1
Out of stock

8

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

9

COVER, SPEEDOMETER

5U5-83507-00-00

1
Out of stock

10

COVER, TACHOMETER

5U5-83508-00-00

1
Out of stock

11

NUT, CAP

95307-05800-00

1
Out of stock

12

WASHER PLATE 803835240000

90201-05032-00

—
Out of stock

13

DAMPER, METER COVER FITTING

584-83523-00-00

—
Out of stock

14

DAMPER

3H3-83513-00-00

1
Out of stock

15

BOLT

584-83546-00-00

1
Out of stock

16

WASHER(6TA)

92907-06200-00

—
Out of stock

17

WASHER, SPRING

92907-06100-00

—
Out of stock

18

NUT(4MY)

95307-06800-00

—
Out of stock

19

PILOT BOX, UPPER

2L0-83568-A0-00

1
Out of stock

20

PILOT BOX, LOWER

2G2-83569-A0-00

1
Out of stock

21

SCREW, PAN HEAD

98517-04012-00

—
Out of stock

22

WASHER(6TA)

92907-04100-00

—
Out of stock

23

WASHER(JF2)

92907-04600-00

—
Out of stock

24

SCREW, PAN HEAD (713)

98580-04008-00

—
Out of stock

25

YBS67-4 WASHER, SPRING

92990-04100-00

—
Out of stock

26

WASHER, PLAIN (646)

92990-04600-00

—
Out of stock

27

SOCKET CORD ASSEMBLY

(3F9-83509-01-00)

1
Out of stock

28

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

29

DAMPER

1A0-83523-00-00

1
Out of stock

30

WASHER, PLATE

90201-06380-00

—
Out of stock

31

WASHER, SPRING

92907-06100-00

—
Out of stock

32

NUT(6TA)

95317-06600-00

—
Out of stock

33

SPEEDOMETER CABLE ASSY

10V-83550-00-00

—
Out of stock

34

RING, STOP

102-25137-00-00

—
Out of stock

35

O-RING (26H)

93210-14579-00

—
Out of stock

36

TACHOMETER CABLE

5U5-83560-00-00

1
Out of stock
