1981 Yamaha XS400S (XS400SH) Shift CAM Fork Diagram

← All diagrams

Find the part on the Shift CAM Fork diagram for your 1981 Yamaha XS400S (XS400SH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

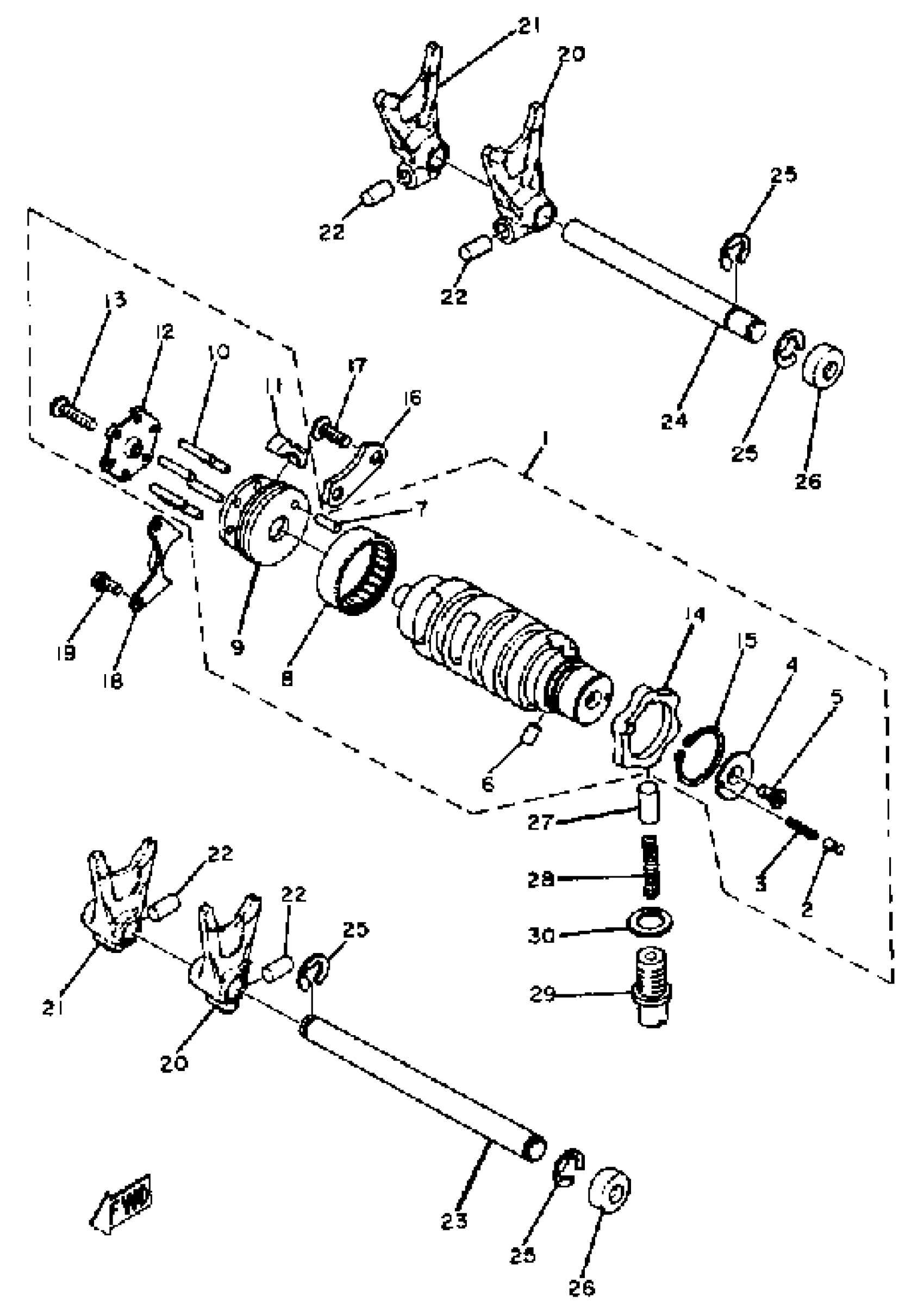

1981 Yamaha XS400S (XS400SH) Shift CAM Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSEMBLY

(1L9-18540-00-00)

1
Out of stock

2

POINT, NEUTRAL

4UN-18542-00-00

1

$8.44

In stock

3

1

$6.17

In stock

4

PLATE, SIDE 2

278-18566-00-00

1
Out of stock

5

SCREW, FLAT

98707-05012-00

1
Out of stock

6

PIN, DOWEL (278)

93604-08071-00

1

$6.17

In stock

7

PIN,DOWEL (137)

93604-14012-00

1

$1.88

In stock

8

BRG,CYL-CAL ROLLER 22G NT

93315-23612-00

1
Out of stock

9

SEGMENT

(328-18185-00-00)

1
Out of stock

10

PIN,DOWEL (620)

93604-22050-00

1

$6.68

In stock

11

PLATE, PAWL

(328-18352-10-00)

1
Out of stock

12

. PLATE, SIDE 1

328-18561-00-00

1
Out of stock

13

SCREW, FLAT

98707-05020-00

1
Out of stock

14

PLATE, STOPPER

(1L9-18141-00-00)

1
Out of stock

15

CIRCLIP(4A6)

99009-30400-00

1

$6.55

In stock

16

PLATE, STOPPER 2

(328-18562-00-00)

1
Out of stock

17

SCREW, FLAT

98707-06014-00

—
Out of stock

18

GUIDE

328-18179-00-00

1
Out of stock

19

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

20

FORK, SHIFT 1

328-18511-01-00

1
Out of stock

21

FORK, SHIFT 2

328-18512-01-00

1
Out of stock

22

PIN, STRAIGHT

90250-08017-00

1
Out of stock

23

BAR, SHIFT FORK GUIDE 1

278-18531-00-00

1
Out of stock

24

BAR, SHIF FRK GDE 2

(278-18535-00-00)

1
Out of stock

25

CIRCLIP

99006-10600-00

—

$6.91

In stock

26

PLUG(3AJ)

90338-22207-00

—

$3.92

In stock

27

STOPPER, CAM

278-18547-02-00

1
Out of stock

28

SPRING COMPRESSION278185570000

90501-10062-00

—
Out of stock

29

BOLT

90109-14002-00

—

$10.29

In stock

30

WASHER, PROTECTOR

4F4-14766-00-00

—

$6.11

In stock
