1981 Yamaha XS400S (XS400SH) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1981 Yamaha XS400S (XS400SH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

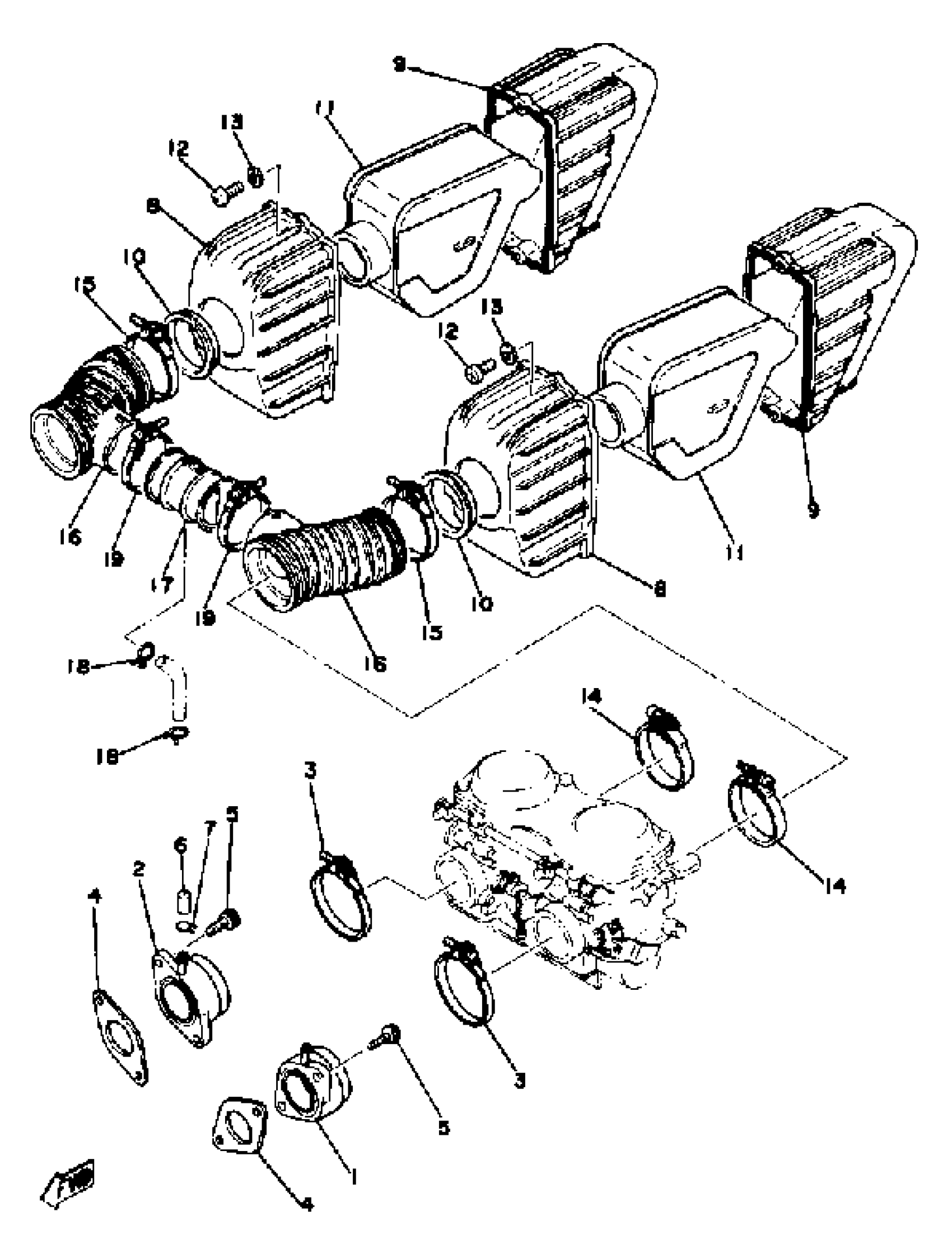

1981 Yamaha XS400S (XS400SH) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 1

2A2-13586-00-00

1
Out of stock

2

JOINT, CARBURETOR (R.H)

2A2-13596-00-00

1

$78.35

In stock

3

CLAMP, HOSE

90460-51131-00

1
Out of stock

4

GASKET

1L9-13556-10-00

1

$5.38

In stock

5

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

6

PLUG, BLIND

16G-13569-00-00

1
Out of stock

7

CLIP (3G0)

90467-10039-00

1
Out of stock

8

CASE, AIR CLEANER 1

2A2-14411-00-00

1
Out of stock

9

CASE, AIR CLEANER 2

2A2-14421-00-00

1
Out of stock

10

GROMMET

90480-50194-00

1
Out of stock

11

ELEMENT, AIRFILTER

1L9-14451-00-00

1

$31.61

In stock

12

SCREW, PAN HEAD(GA5)

98580-04014-00

1

$2.78

In stock

13

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

14

HOSE CLAMP ASSY

90450-58002-00

1

$15.11

In stock

15

CLAMP HOSE 278144550000

90460-49058-00

1
Out of stock

16

JOINT, AIR CLNR 1

2L0-14453-00-00

1
Out of stock

17

WAY, 3

90413-40002-00

1
Out of stock

18

CLIP (371)

90467-14015-00

—

$7.51

In stock

19

HOSE CLAMP ASSY(10F)

90450-45075-00

—

$4.15

In stock
