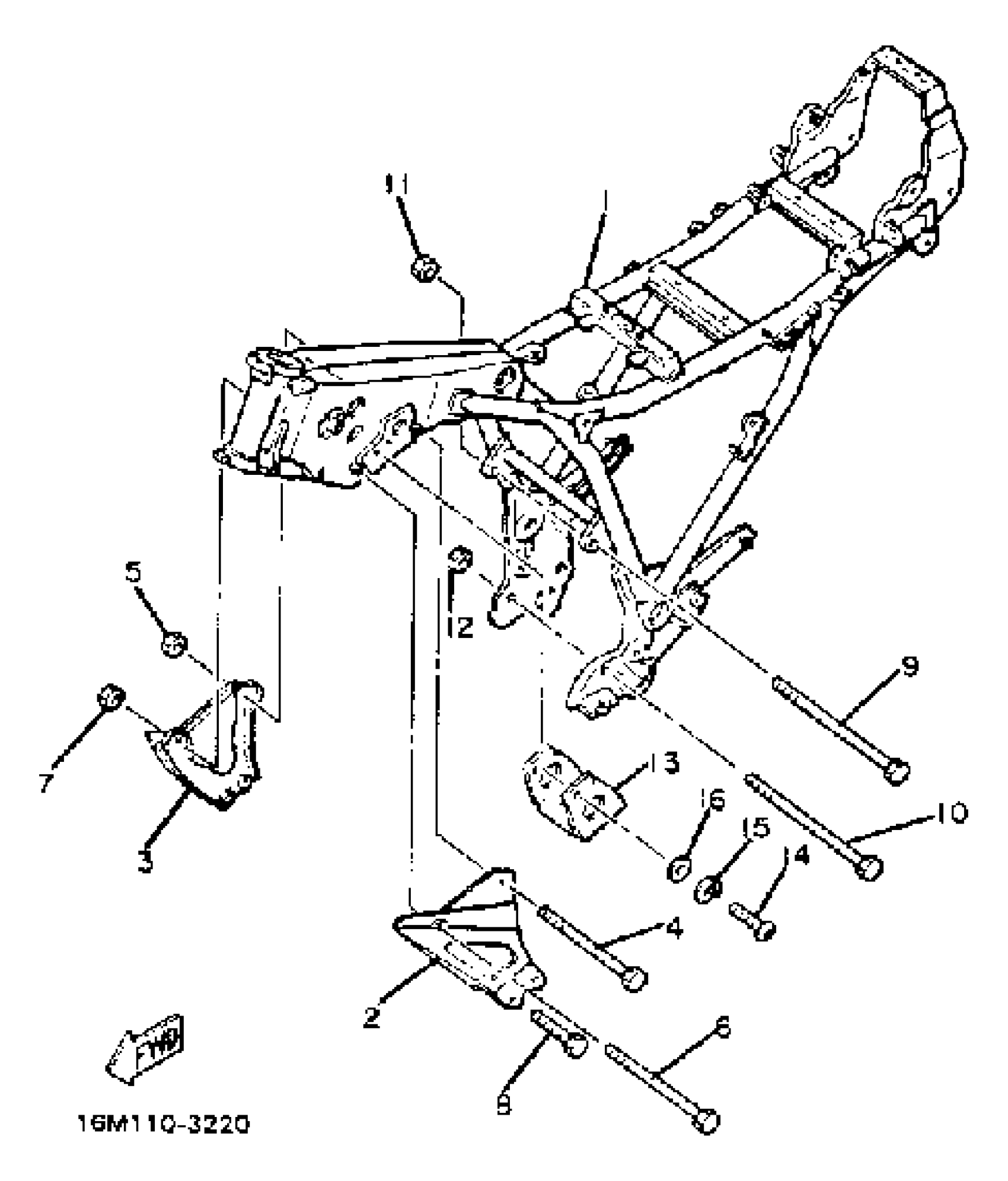

Yamaha XS400RJ (XS400R) 1982 FRAME Diagram

#

Description
Price

1

FRAME

(16M-21110-00-98)

Unavailable

2

STAY, ENGINE 2

(16M-21315-00-93)

Unavailable

3

STAY, ENGINE 3

(16M-21316-00-93)

Unavailable

4

BOLT(30W)

90109-101A0-00

Unavailable

5

NUT(4KG)

90179-10658-00

$7.38

6

BOLT, WASHER BASED

90105-10227-00

Unavailable

7

NUT, CROWN(2GG)

90176-10075-00

$6.12

8

BOLT, WASHER BASED(3YR)

90105-10669-00

Unavailable

9

BOLT, WASHER BASED (3Y1)

90105-10139-00

Unavailable

10

BOLT, WASHER BASED (14A)

90105-12228-00

$16.49

11

NUT(4KG)

90179-10658-00

$7.38

12

NUT(3EF)

90179-12657-00

$4.96

13

CLAMP, WIRE HRNES 2

(12R-21336-00-00)

Unavailable

14

SCREW, PAN

98517-06012-00

$2.93

15

WASHER, SPRING

92907-06100-00

$0.98

16

WASHER(6TA)

92907-06600-00

Unavailable
