Partiron

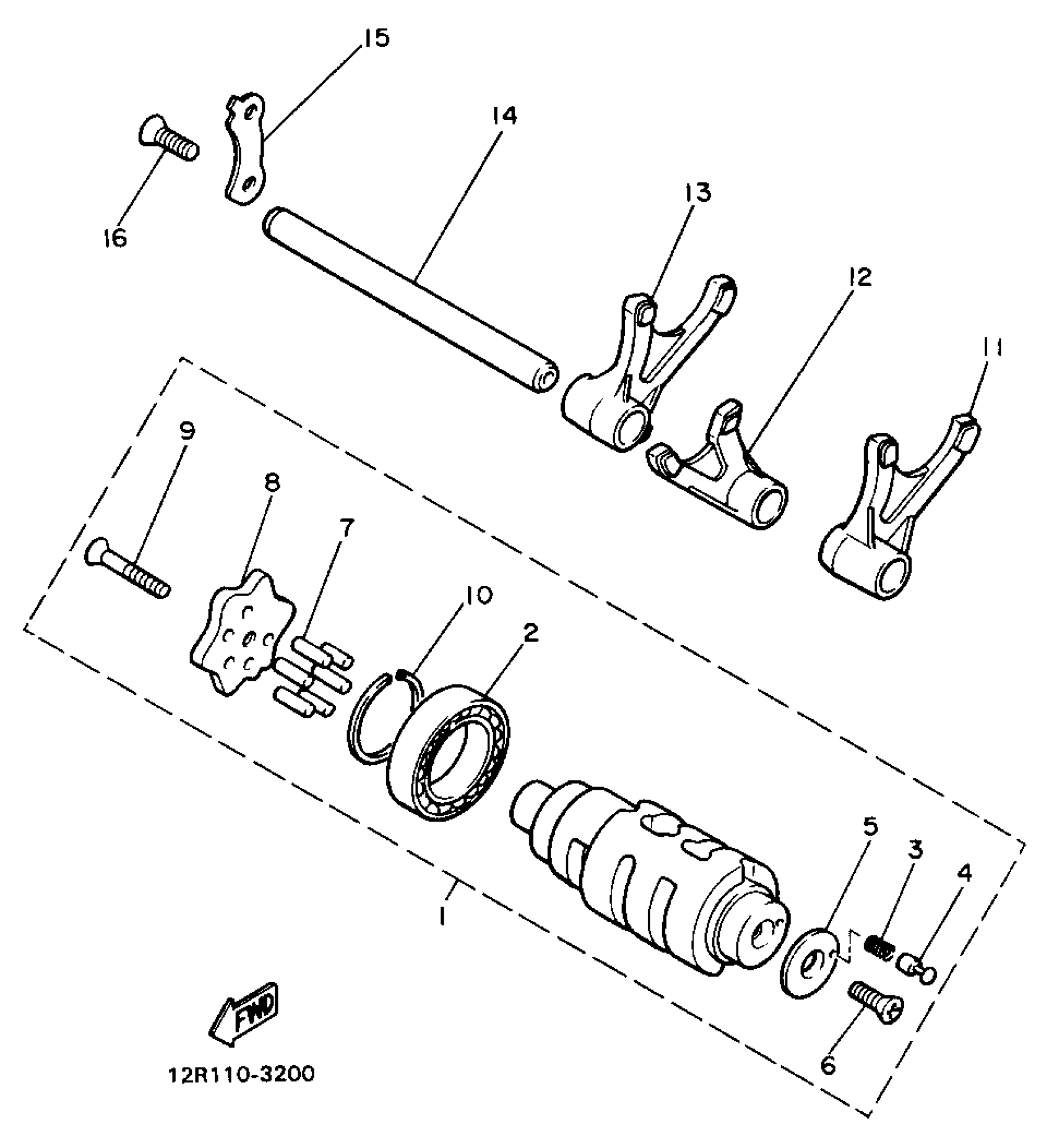

Yamaha XS400J (XS400) 1982 SHIFT CAM FORK Diagram

#

Description
Price

1

SHIFT CAM ASSEMBLY

(12R-18540-00-00)

Unavailable

2

BRG,R-B (4X7)

93306-90602-00

$39.97

3

SPRING COMPRESSION278185450000

90501-06022-00

$5.75

4

POINT, NEUTRAL

4UN-18542-00-00

$7.89

5

PLATE, SIDE 2

278-18566-00-00

Unavailable

6

SCREW, FLAT

98707-05016-00

$5.23

7

PIN,DOWEL (620)

93604-22050-00

$6.22

8

SEGMENT

(12R-18185-00-00)

Unavailable

9

. SCREW, COUNTERSUNK

90151-06017-00

Unavailable

10

CIRCLIP (3J3)

93440-30077-00

$9.39

11

FORK, SHIFT 1

12R-18511-00-00

Unavailable

12

FORK, SHIFT 2

(12R-18512-00-00)

Unavailable

13

FORK, SHIFT 3

12R-18513-00-00

Unavailable

14

BAR, SHIF FRK GDE 1

12R-18531-00-00

Unavailable

15

STOPPER, SHIFT BAR

(12R-18536-00-00)

Unavailable

16

SCREW, FLAT

98707-06014-00

Unavailable
