1978 Yamaha XS400 (XS400E) Kick Starter Diagram

← All diagrams

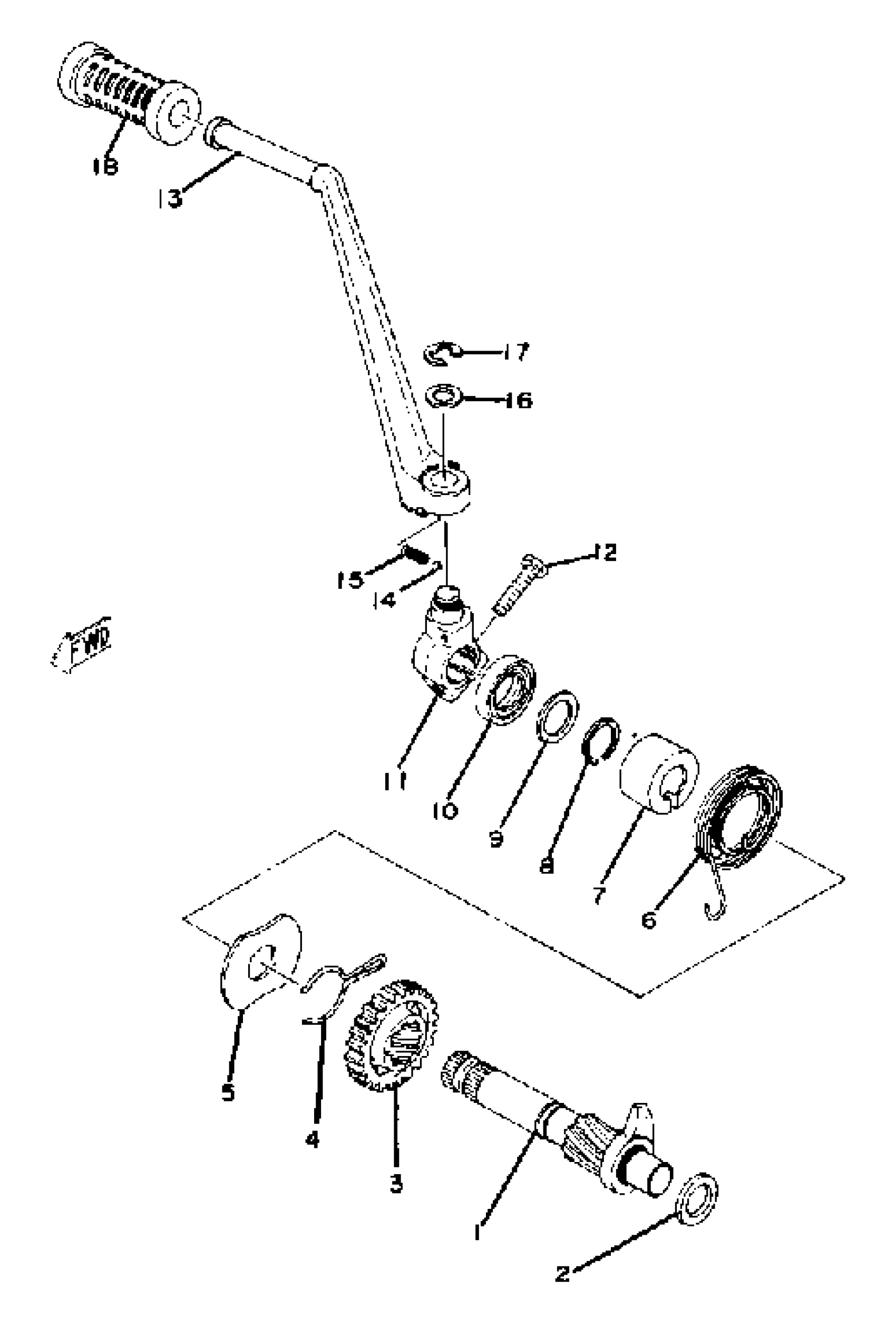

Find the part on the Kick Starter diagram for your 1978 Yamaha XS400 (XS400E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha XS400 (XS400E) Kick Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK AXLE ASSEMBLY

(1L9-15660-00-00)

1
Out of stock

2

SHIM 1

136-17417-00-10

1
Out of stock

3

GEAR, KICK

371-15641-01-00

1
Out of stock

4

CLIP

90468-26045-00

1
Out of stock

5

COVER,SPRING

278-15676-00-00

1
Out of stock

6

SPRING TORSION 278156650000

90508-30051-00

1
Out of stock

7

SPACER

371-15666-00-00

1
Out of stock

8

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

9

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

10

OIL SEAL (20X30X7-371)

93102-20108-00

1
Out of stock

11

BOSS, KICK CRANK

583-15621-00-00

1
Out of stock

12

BOLT, HEXAGON

97013-08030-00

1
Out of stock

13

KICK CRANK ASY

1L9-15620-01-93

1
Out of stock

14

BALL (12R)

93507-32031-00

1
Out of stock

15

SPRING COMPRESSION278156220000

90501-12081-00

1
Out of stock

16

WASHER (3XVC)

90201-153A1-00

—
Out of stock

17

CIRCLIP

99006-10600-00

—
Out of stock

18

COVER, KICK LEVER

156-15618-01-00

—
Out of stock
