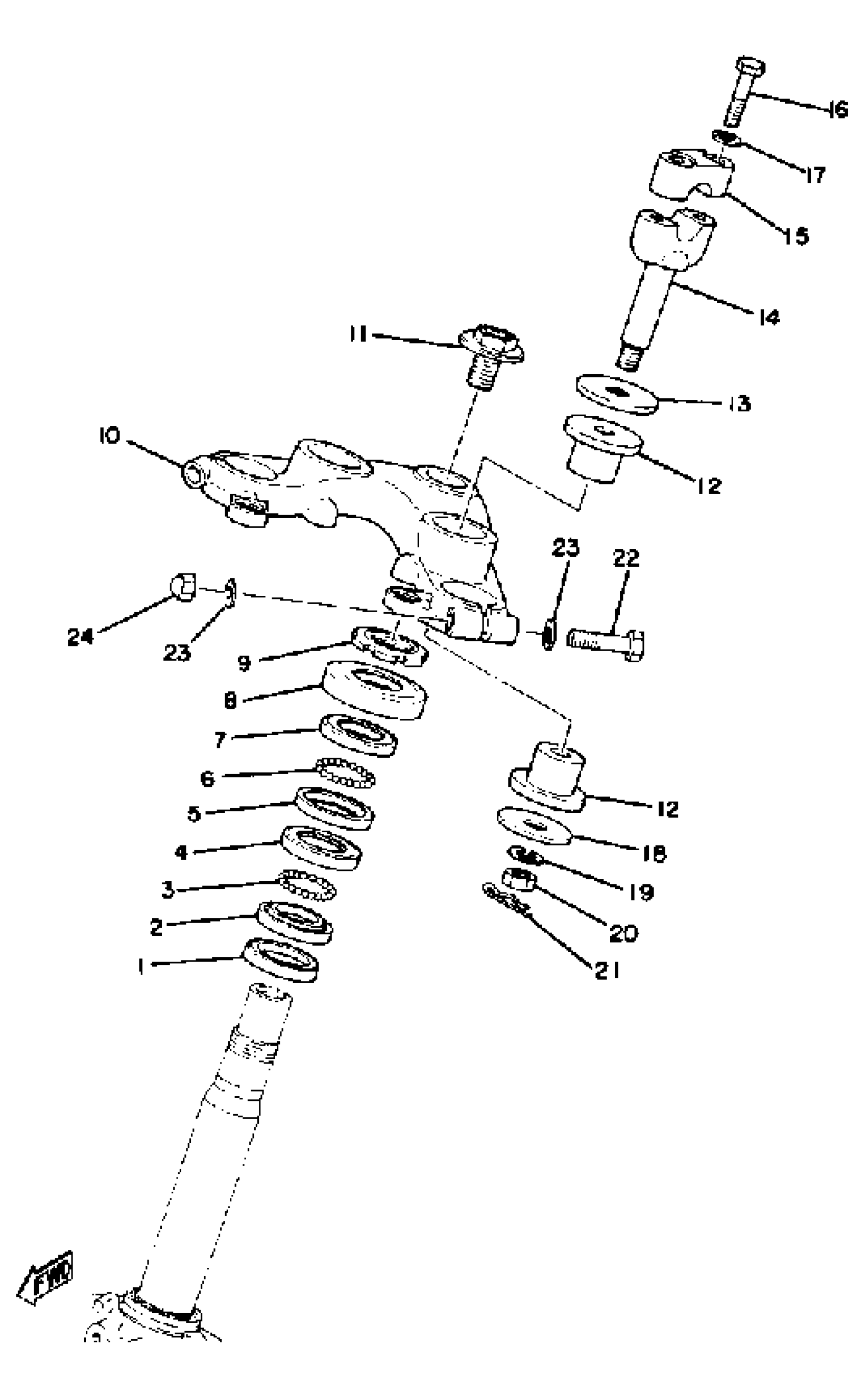

Yamaha XS400_2F (XS400_2F) 1979 STEERING Diagram

#

Description
Price

1

SEAL, DUST

164-23462-00-00

$5.98

2

RACE, BALL 1

B6E-23411-00-00

$6.54

3

BALL

93501-04011-00

$5.84

4

RACE, BALL 2

B6E-23412-00-00

$9.05

5

RACE,BALL 2

4FP-F3412-10-00

Unavailable

6

BALL

93501-04011-00

$5.84

7

RACE, BALL 1

4FP-F3411-20-00

$8.14

8

COVER, BALL RACE

136-23415-00-00

$7.18

9

NUT

90179-25004-00

$19.41

10

CROWN, HANDLE

2L0-23435-00-98

Unavailable

11

BOLT (2A2)

90105-14102-00

$4.81

12

HOLDER, DAMPER

256-23434-01-00

Unavailable

13

WASHER (1J7)

90209-12151-00

Unavailable

14

HOLDER, HANDLE LOWER

4AA-23442-01-98

Unavailable

15

HOLDER, HANDLE UPPER

1E6-23441-00-00

$20.90

16

BOLT, DOME HEAD

90106-08032-00

Unavailable

17

.. WASHER, PLATE

92990-08600-00

$2.17

18

WASHER PLATE 256234440000

90201-10149-00

Unavailable

19

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

20

NUT (682)

95380-10700-00

$5.27

21

CLIP 136253750000

90468-12006-00

Unavailable

22

BOLT, HEXAGON

97013-08055-00

Unavailable

23

.. WASHER, PLATE

92990-08600-00

$2.17

24

NUT, CROWN

95303-08800-00

Unavailable
