1978 Yamaha XS400 (XS400-2E) Front Fork Diagram

← All diagrams

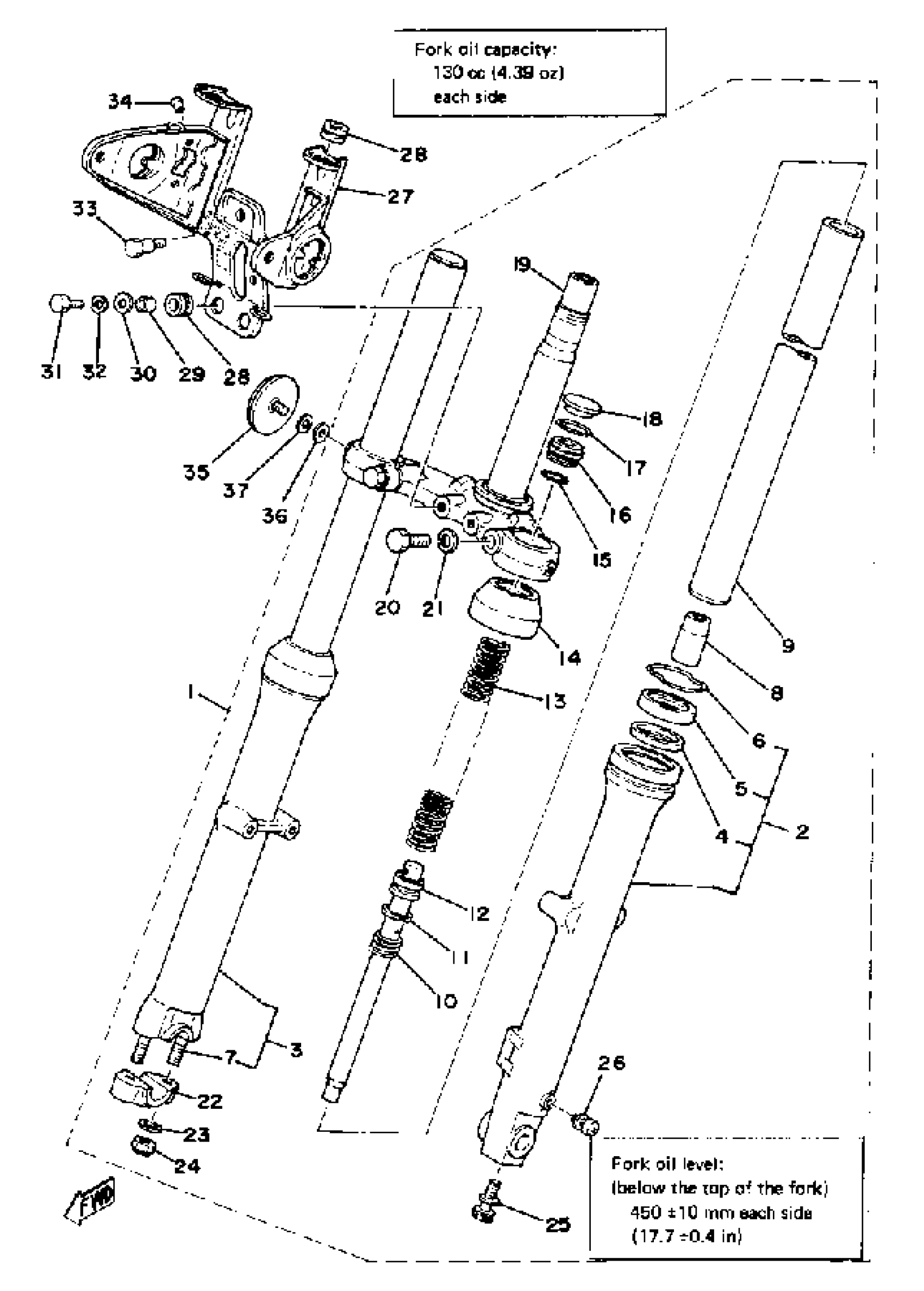

Find the part on the Front Fork diagram for your 1978 Yamaha XS400 (XS400-2E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha XS400 (XS400-2E) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(1T6-23101-00-00)

1
Out of stock

2

TUBE, OUTER 1

(1T6-23126-00-38)

1
Out of stock

3

TUBE, OUTER 2

(1T6-23136-00-38)

1
Out of stock

4

. WASHER, OIL SEAL

1L9-23146-00-00

1
Out of stock

5

OIL SEAL

1L9-23145-00-00

1

$20.02

In stock

6

. CLIP, OIL SEAL

1L9-23156-00-00

1
Out of stock

7

.. BOLT, STUD

90116-08260-00

1
Out of stock

8

. SPACER, OIL LOCK

1L9-23166-00-00

1
Out of stock

9

INNER TUBE 1

(1L9-23110-01-00)

1
Out of stock

10

SPRING, REBOUND

(1E7-23151-00-00)

1
Out of stock

11

RING, PISTON FRONT FORK

1E7-23157-00-00

1

$4.62

In stock

12

CYLINDER, FRTFRK

(1L9-23170-02-00)

1
Out of stock

13

SPRING, FRONT FORK

(1L9-23141-01-00)

1
Out of stock

14

SEAL, DUST

1L9-23144-00-00

1

$28.02

In stock

15

O-RING

1L9-23114-00-00

1

$7.00

In stock

16

SEAT, SPRING

1L9-23111-00-00

—

$14.05

In stock

17

RING, STOPPER

1L9-23183-00-00

—

$6.43

In stock

18

. CAP, FRONT FORK

1L9-23168-00-00

1
Out of stock

19

UNDER BRACKET

(1L9-23340-00-90)

1
Out of stock

20

BOLT(N02)

97070-10035-00

—

$11.38

In stock

21

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

22

. HOLDER, AXLE

1E7-23167-00-00

1
Out of stock

23

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

24

NUT, SELF-LOCKING (3Y2)

90185-08089-00

—

$7.31

In stock

25

BOLT

3M7-23181-00-00

—

$7.75

In stock

26

. PLUG, DRAIN

1E7-23119-00-00

1
Out of stock

27

COVER, UPPER 1

1L9-23121-01-33

1
Out of stock

28

GROMMET (431)

90480-14052-00

—

$4.40

In stock

29

COLLAR (3H5)

90387-060A3-00

—

$7.22

In stock

30

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

31

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

32

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

33

BOLT 337847520000

90109-06005-00

—

$6.29

In stock

34

STOPPER

(1U4-24768-00-00)

1
Out of stock

35

REFLECTOR, FRONT 1

355-85111-01-00

—
Out of stock

36

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

37

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock
