1978 Yamaha XS400 (XS400-2E) Electrical 2 Diagram

← All diagrams

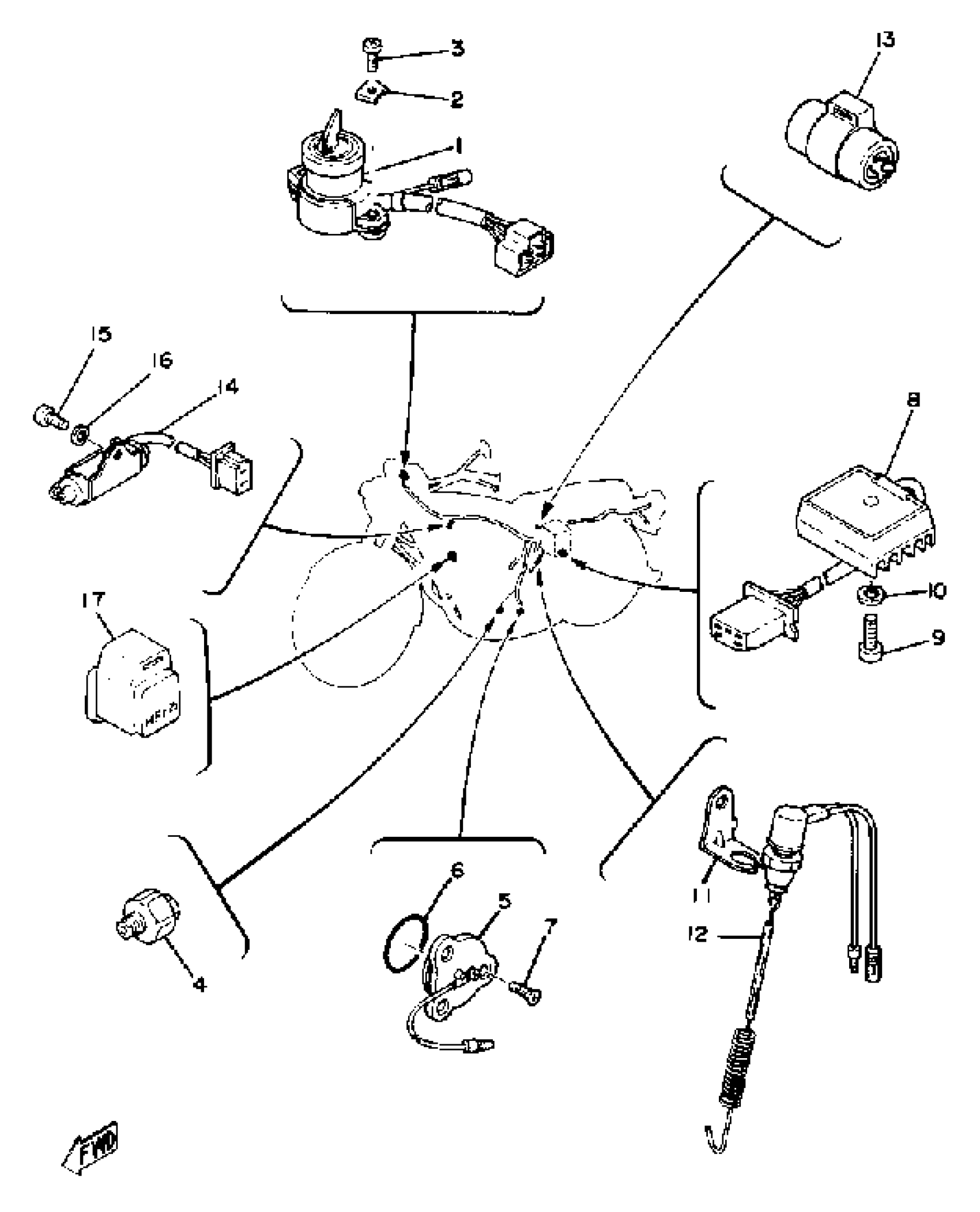

Find the part on the Electrical 2 diagram for your 1978 Yamaha XS400 (XS400-2E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha XS400 (XS400-2E) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MAIN SWITCH ASSEMBLY

2G5-82508-50-00

1
Out of stock

2

WASHER, SPECIAL

533-82517-00-00

1
Out of stock

3

SCREW, PAN HEAD(4MY)

98507-05018-00

1

$2.48

In stock

4

OIL PRESSURE SWITCH ASSEMBLY

341-82504-02-00

1
Out of stock

5

NEUTRAL SWITCH ASSY

1L9-82540-00-00

1
Out of stock

6

O-RING (371)

93210-29196-00

1

$6.45

In stock

7

SCREW, FLAT

98707-05012-00

1
Out of stock

8

RECTIFIER ASSEMBLY

1L9-81970-60-00

1
Out of stock

9

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

STAY, STOP SWITCH

(1L9-82539-01-00)

1
Out of stock

12

STOP SWITCH ASSEMBLY

1L9-82530-02-00

1
Out of stock

13

FLASHER RELAY ASSEMBLY

371-83350-71-00

1
Out of stock

14

CONDENSER 1

1L9-81625-50-00

1
Out of stock

15

SCREW, PAN HEAD(6E5)

97880-06018-00

1

$4.19

In stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

RELAY ASSEMBLY

360-81950-10-00

1
Out of stock
