1976 Yamaha XS360 (XS360C) Intake Diagram

← All diagrams

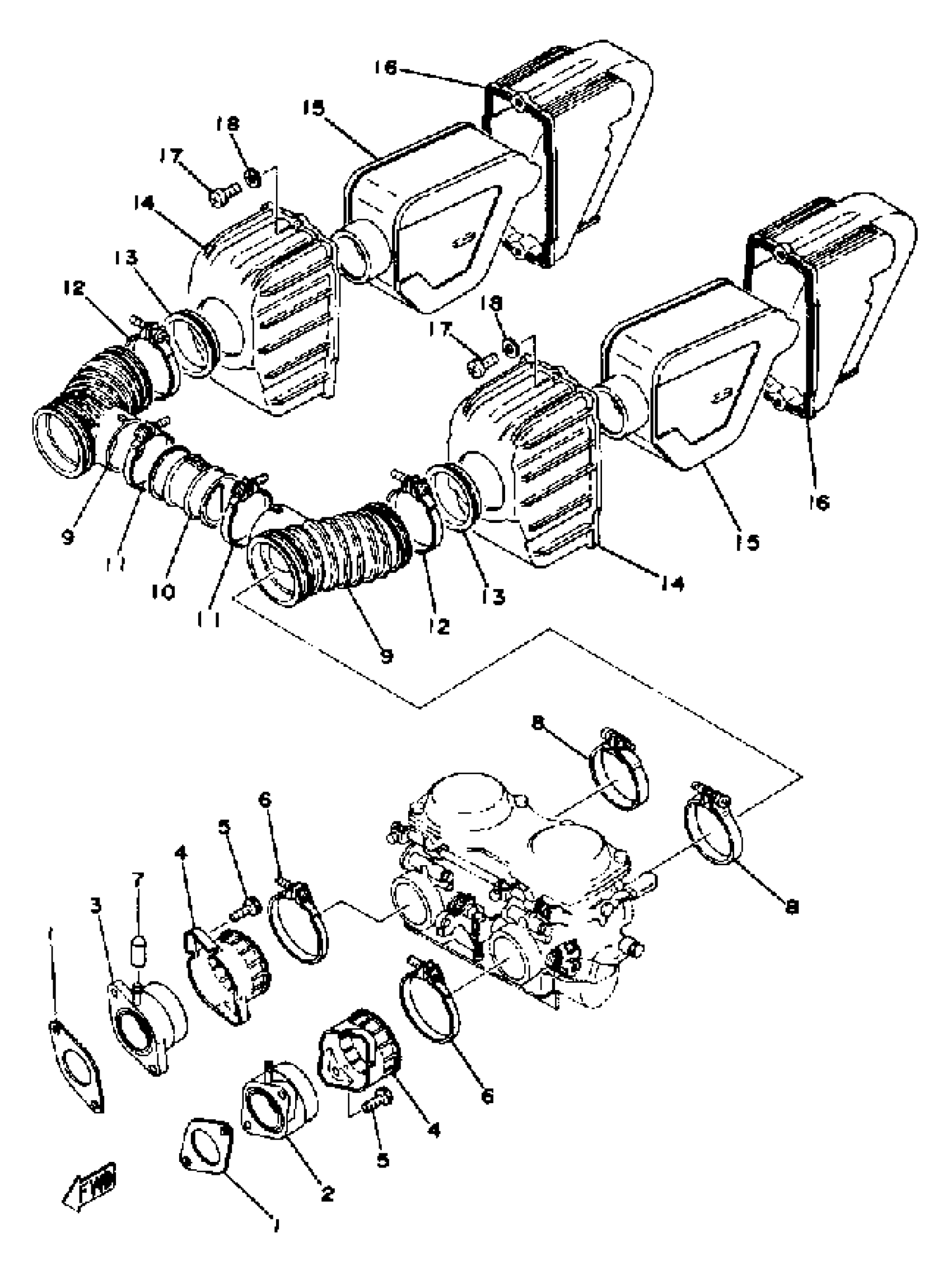

Find the part on the Intake diagram for your 1976 Yamaha XS360 (XS360C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha XS360 (XS360C) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET

1L9-13556-10-00

1

$5.38

In stock

2

JOINT, CARBURETOR 1

1L9-13586-02-00

1
Out of stock

3

JOINT, CARBURETOR 2

1L9-13596-02-00

1
Out of stock

4

COVER, CARB.JOINT

(1L9-13564-00-00)

1
Out of stock

5

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

6

HOSE CLAMP ASSY

90450-53005-00

—

$8.63

In stock

7

PLUG, BLIND

16G-13569-00-00

1
Out of stock

8

BAND

90460-54062-00

1
Out of stock

8

CLAMP, HOSE (1L9)

90460-54111-00

1

$9.89

In stock

9

JOINT, AIR CLNR 1

(1L9-14453-00-00)

1
Out of stock

10

WAY, 3

90413-40002-00

1
Out of stock

11

CLAMP, HOSE (5H0)

90460-43179-00

1

$16.69

In stock

12

CLAMP HOSE 278144550000

90460-49058-00

1
Out of stock

13

GROMMET

90480-50194-00

1
Out of stock

14

CASE, AIR CLEANER 1

2A2-14411-00-00

1
Out of stock

15

ELEMENT, AIRFILTER

1L9-14451-00-00

—

$31.61

In stock

16

CASE, AIR CLEANER 2

(1L9-14421-00-00)

1
Out of stock

17

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

18

WASHER, PLAIN (646)

92990-04600-00

—

$0.92

In stock
