1977 Yamaha XS360 (XS360_2D) Front Wheel Diagram

← All diagrams

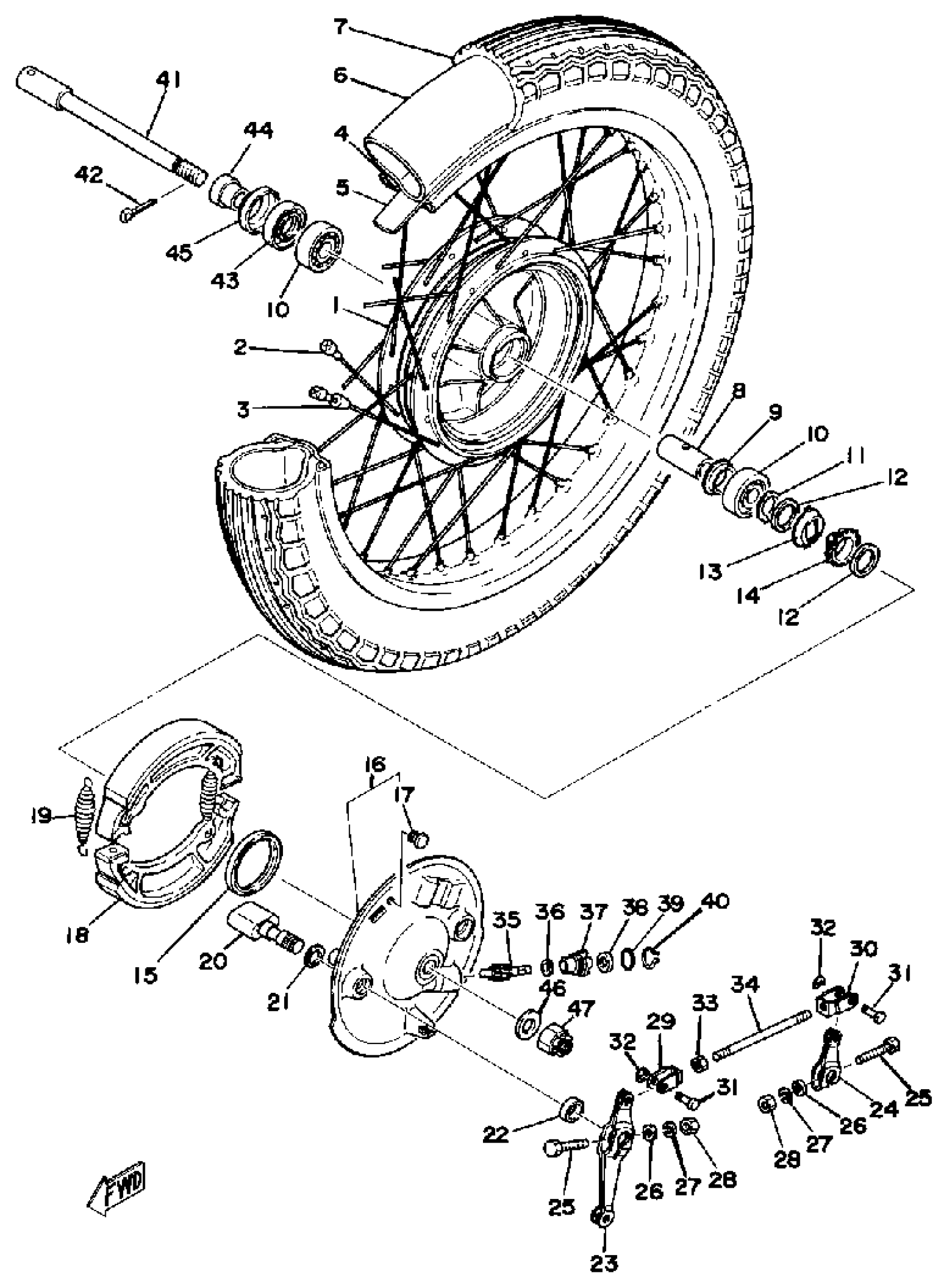

Find the part on the Front Wheel diagram for your 1977 Yamaha XS360 (XS360_2D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha XS360 (XS360_2D) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(246-25111-00-38)

1
Out of stock

2

SPOKE SET, FRONT

152-25104-00-00

1
Out of stock

3

BALANCER, WHEEL

3HT-25398-00-00

1
Out of stock

4

RIM 1.60X18

(94416-18013-00)

1
Out of stock

5

BAND, RIM (2J4)

94340-18086-00

1
Out of stock

6

TUBE (5H5)

94227-18195-00

1
Out of stock

7

YOKO 300S18 Y986

(94130-18363-00)

1
Out of stock

8

SPACER 136253170000

90560-15136-00

—
Out of stock

9

FLANGE, SPACER

146-25115-00-00

1
Out of stock

10

BEARING

93306-30212-00

1
Out of stock

11

CIRCLIP(1EY)

99009-22400-00

1
Out of stock

12

WASHER PLATE 214251470000

90201-22283-00

1
Out of stock

13

CLUTCH, METER

246-25149-00-00

1
Out of stock

14

GEAR, DRIVE

246-25135-00-00

—
Out of stock

15

OIL SEAL, SDD-TYPE

93105-53013-00

1
Out of stock

16

BRAKE SHOE PLT ASSEMBLY

(361-25120-10-00)

1
Out of stock

17

GROMMET (397)

90480-10068-00

—
Out of stock

18

BRAKESHOE SET-2PCS

168-W2535-00-00

1
Out of stock

19

SPRING, TENSION 2462533300

90507-20002-00

—
Out of stock

20

CAMSHAFT

(4R5-25151-00-00)

1
Out of stock

21

SHIM, CAM SHAFT

148-25353-00-00

—
Out of stock

22

SEAL, CAM SHAFT

148-25359-00-00

—
Out of stock

23

LEVER,CAMSHAFT 1

168-25155-00-00

1
Out of stock

24

LEVER, CAMSHAFT 2

246-25156-00-00

1
Out of stock

25

BOLT(3RV)

97014-06035-00

—
Out of stock

26

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock

27

WASHER, SPRING

92995-06100-00

1
Out of stock

28

NUT, HEXAGON

95380-06600-00

1
Out of stock

29

END, ROD 1

152-25163-00-00

1
Out of stock

30

END, ROD 2

152-25164-00-00

1
Out of stock

31

PIN, SPEC'L SHAPE

90249-06095-00

1
Out of stock

32

CIRCLIP (EU0)

99080-04600-00

1
Out of stock

33

NUT(650)

95380-06700-00

—
Out of stock

34

ROD, CONNECTING

(152-25161-00-00)

1
Out of stock

35

GEAR, METER

214-25138-00-00

—
Out of stock

36

WASHER, PLATE 1832514600

90201-07076-00

—
Out of stock

37

BUSHING

109-25136-00-00

—
Out of stock

38

OIL SEAL (7X14X4-136)

93104-07003-00

—
Out of stock

39

O-RING (26H)

93210-14579-00

—
Out of stock

40

RING, STOP

102-25137-00-00

—
Out of stock

41

AXLE, WHEEL

(278-25181-00-00)

1
Out of stock

42

PIN, COTTER

91490-30030-00

—
Out of stock

43

OIL SEAL (22X42X7)

93102-22014-00

—
Out of stock

44

COLLAR

90387-15586-00

1
Out of stock

45

COVER, DUST

401-25367-00-00

—
Out of stock

46

WASHER, PLAIN

92990-14200-00

—
Out of stock

47

NUT, CASTLE(2UJ)

90171-14056-00

—
Out of stock
