Partiron

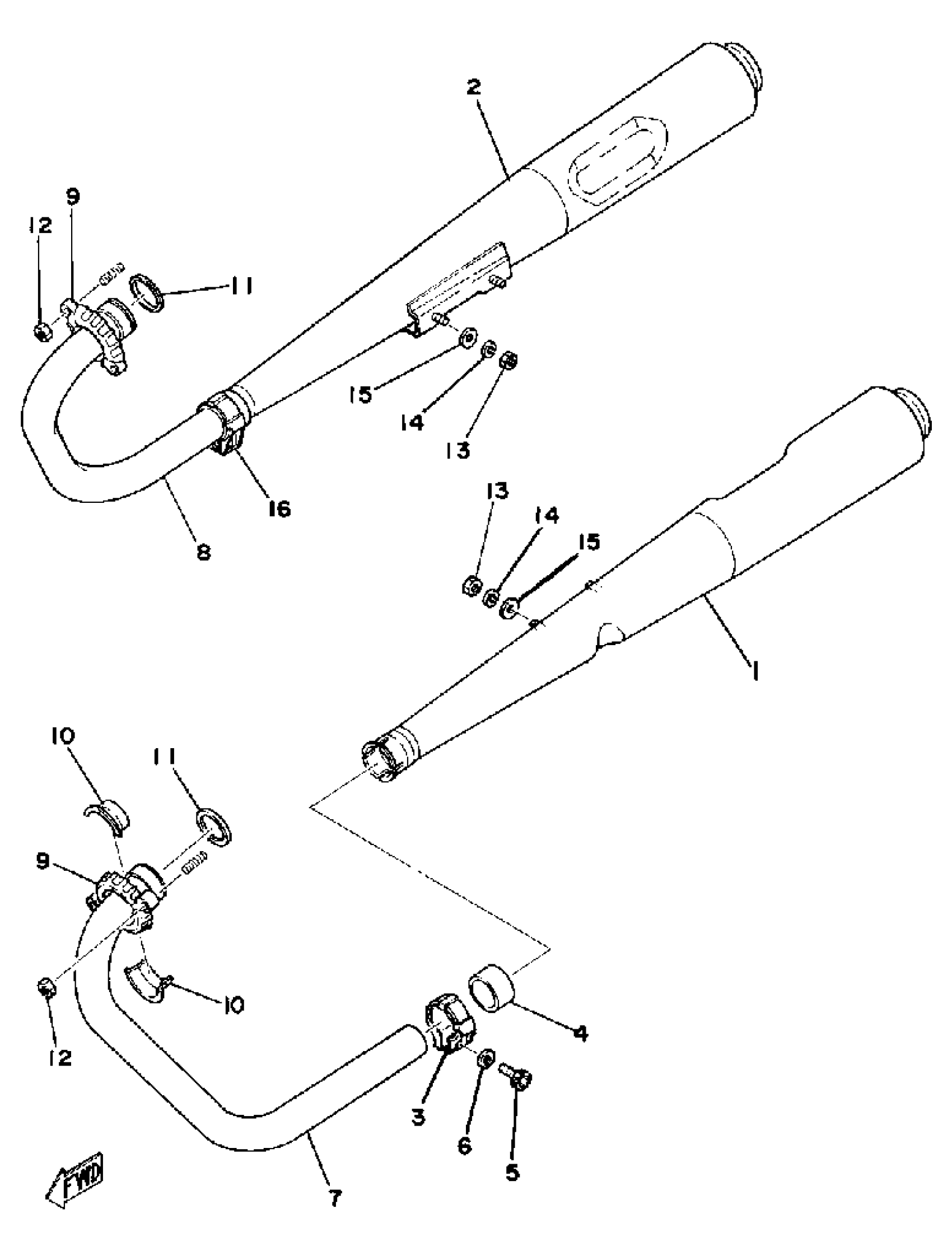

Yamaha XS360_2D (XS360) 1977 EXHAUST Diagram

#

Description
Price

1

MUFFLER L

(1L9-14711-80-00)

Unavailable

2

MUFFLER R

1L9-14721-80-00

Unavailable

3

BAND, SILENCER

1L9-14788-00-00

Unavailable

4

GASKET, EXHAUST 4

3JJ-14653-00-00

$37.50

5

BOLT,SOCKET

91317-06025-00

$1.91

6

WASHER, PLAIN (646)

92990-06600-00

$1.84

7

PIPE, EXHAUST L

1L9-14611-00-00

Unavailable

8

PIPE, EXHAUST R

1L9-14621-00-00

Unavailable

9

NUT, RING

1L9-14612-00-00

Unavailable

10

COLLAR

1L9-14638-00-00

Unavailable

11

GASKET, EXHAUST

1L9-14613-10-00

$10.11

12

NUT(6L2)

95333-08600-00

$2.98

13

NUT(6L2)

95333-08600-00

$2.98

14

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

15

WASHER, PLAIN

92990-08200-00

$2.36

16

BAND, SILENCER

1L9-14788-00-00

Unavailable
