1981 Yamaha XS1100S (XS1100SH) Speedometer Tachometer Diagram

← All diagrams

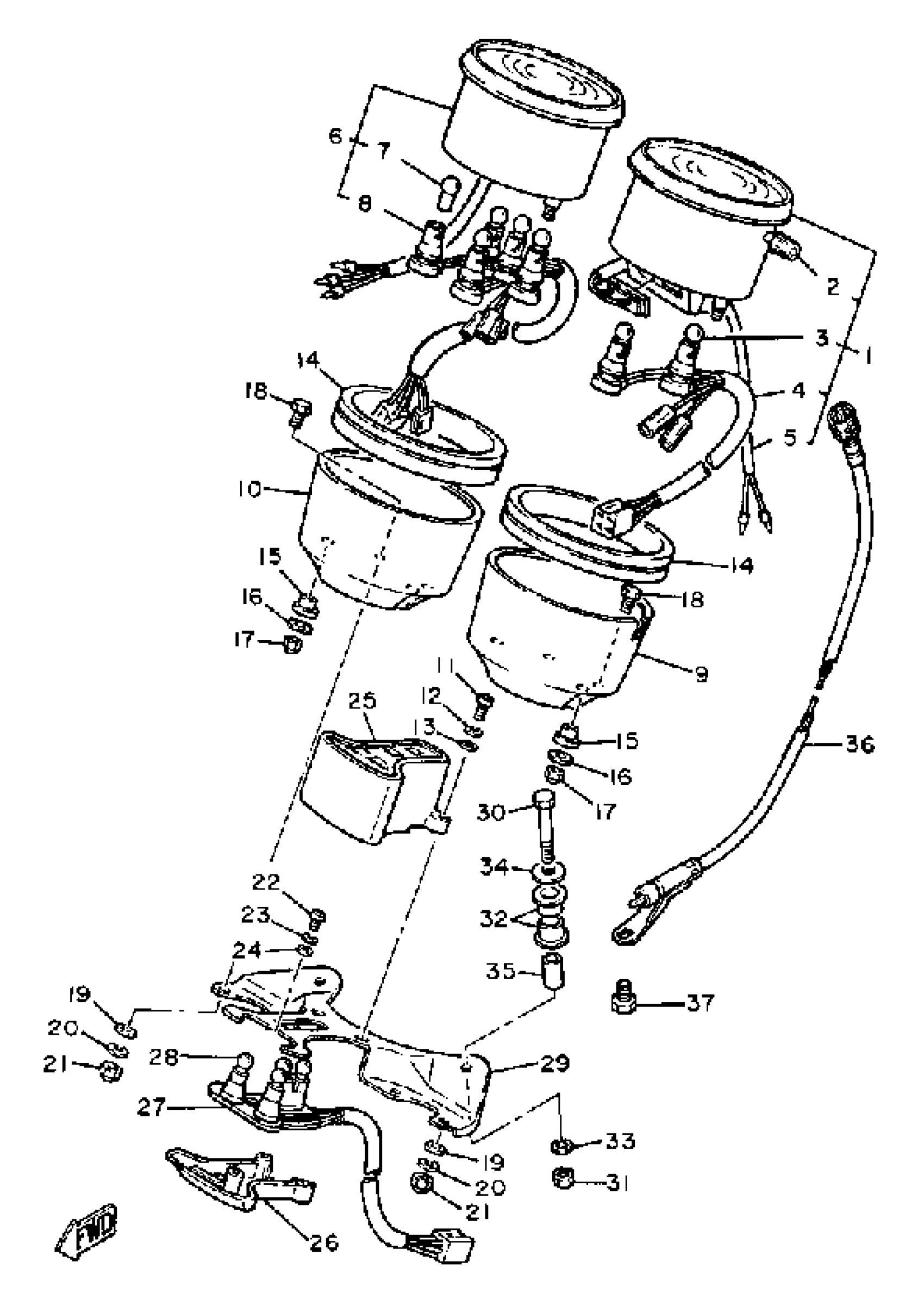

Find the part on the Speedometer Tachometer diagram for your 1981 Yamaha XS1100S (XS1100SH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XS1100S (XS1100SH) Speedometer Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSY

5H1-83570-A0-00

1
Out of stock

2

KNOB, TRIP METER

4SV-83578-00-00

1
Out of stock

3

BULB (12V-3.4W)

123-83516-21-00

1
Out of stock

4

SOCKET, METER

(3J6-83536-00-00)

1
Out of stock

5

. SENDER

2H7-83556-00-00

1
Out of stock

6

TACHOMETER ASSEMBLY

(3H4-83540-F1-00)

1
Out of stock

7

BULB (12V-3.4W)

123-83516-21-00

1
Out of stock

8

SOCKET CORD ASSEMBLY

(3H3-83509-00-00)

1
Out of stock

9

COVER, SPEEDOMETER

2J2-83507-00-00

1
Out of stock

10

COVER, TACHOMETER

3H3-83508-00-00

1
Out of stock

11

SCREW, PAN HEAD

98517-04012-00

1
Out of stock

12

WASHER(6TA)

92907-04100-00

1
Out of stock

13

WASHER(JF2)

92907-04600-00

1
Out of stock

14

DAMPER

3H3-83513-00-00

1
Out of stock

15

DAMPER, METER COVER FITTING

584-83523-00-00

—
Out of stock

16

WASHER, PLATE (8J0)

90201-05725-00

—
Out of stock

17

NUT (CROWN)

95303-05800-00

1
Out of stock

18

BOLT

584-83546-00-00

—
Out of stock

19

YBS66-6 WASHER, PLAIN

92990-06200-00

—
Out of stock

20

WASHER, SPRING

92995-06100-00

1
Out of stock

21

NUT (J17)

95380-06800-00

—
Out of stock

22

SCREW, PAN HEAD

(92503-04008-00)

1
Out of stock

23

YBS67-4 WASHER, SPRING

92990-04100-00

—
Out of stock

24

WASHER, PLAIN (646)

92990-04600-00

—
Out of stock

25

PILOT BOX, UPPER

3J6-83568-A0-00

1
Out of stock

26

PILOT BOX, LOWER

3J6-83569-A0-00

1
Out of stock

27

SOCKET CORD ASSEMBLY

3J6-83509-01-00

1
Out of stock

28

BULB (12V-3.4W)

123-83516-21-00

1
Out of stock

29

BRACKET, METER

3J6-83519-00-00

1
Out of stock

30

BOLT(8BC)

97017-06040-00

—
Out of stock

31

NUT, HEXAGON

95380-06600-00

1
Out of stock

32

DAMPER, METER BRACKET

584-83541-00-00

—
Out of stock

33

WASHER, SPRING

92995-06100-00

1
Out of stock

34

WASHER, PLATE

90201-06380-00

—
Out of stock

35

COLLAR (877)

90387-06249-00

—
Out of stock

36

SPEEDOMETER CABLE

10M-83550-00-00

1
Out of stock

37

SCREW, HEXAGON

90153-06004-00

1
Out of stock
