1981 Yamaha XS1100 (XS1100H) Intake Diagram

← All diagrams

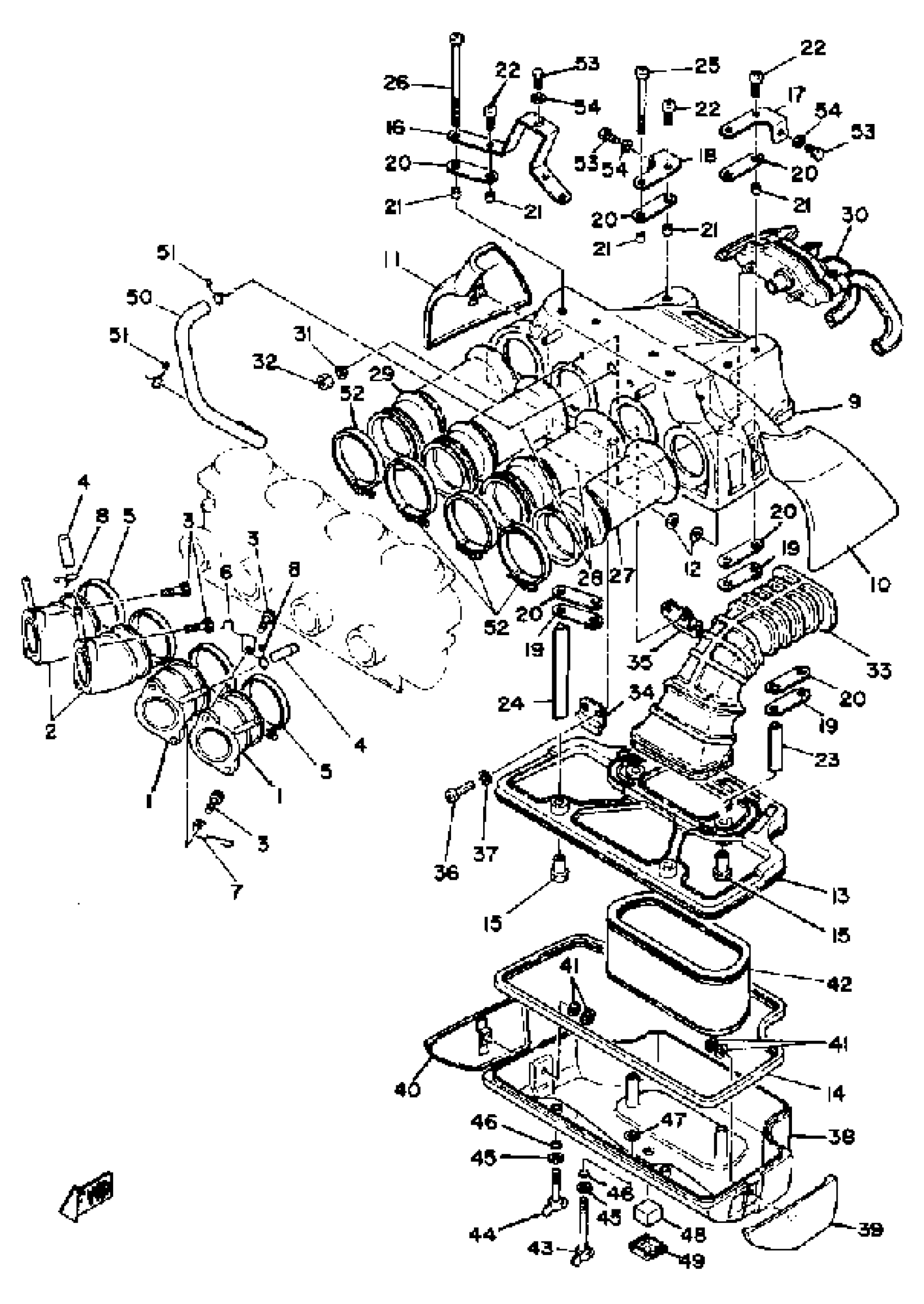

Find the part on the Intake diagram for your 1981 Yamaha XS1100 (XS1100H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XS1100 (XS1100H) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR (L.H)

2H7-13586-00-00

—

$149.57

In stock

2

JOINT, CARBURETOR 2

2H7-13596-00-00

1
Out of stock

3

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

4

PLUG, BLIND

16G-13569-00-00

1
Out of stock

5

HOSE CLAMP ASSY

90450-54008-00

1
Out of stock

6

CLAMP

(90462-10038-00)

1
Out of stock

7

CLAMP

(90462-10039-00)

1
Out of stock

8

CLIP

90467-11028-00

1

$5.14

In stock

9

CASE, AIR CLEANER 1

3H5-14411-00-00

1
Out of stock

10

COVER, CLNR CASE 1

2H7-1441A-00-00

1
Out of stock

11

COVER, CLNR CASE 2

2H7-1441E-00-00

1
Out of stock

12

NUT 6504269100

90183-05003-00

1
Out of stock

13

PARTN, AIR CLNR CS

2H7-1441F-00-00

1
Out of stock

14

SEAL

2H7-14457-02-00

1
Out of stock

15

NUT, SPEC''L SHAPE

90179-06250-00

1
Out of stock

16

STAY 1

(2H7-14493-00-00)

1
Out of stock

17

STAY 1

2H7-14498-00-00

1
Out of stock

18

STAY 2

(2H7-14499-00-00)

1
Out of stock

19

PLATE, CLNR CS FTNG

2H7-14484-00-00

1
Out of stock

20

SEAL

2H7-14452-01-00

1
Out of stock

21

COLLAR (3H5)

90387-060A3-00

—

$7.22

In stock

22

SCREW, PAN HEAD(6E5)

97880-06018-00

1

$4.19

In stock

23

COLLAR

2H7-14443-00-00

1
Out of stock

24

COLLAR

2H7-14444-00-00

1
Out of stock

25

SCREW PAN HEAD

98580-06570-00

—

$17.32

In stock

26

SCREW, PAN HEAD(3VM)

98507-06110-00

1
Out of stock

27

JOINT, AIR CLNR 1

2H7-14453-00-00

1
Out of stock

28

JOINT, AIR CLNR 2

2H7-14463-00-00

1
Out of stock

29

JOINT

2H7-14454-00-00

1
Out of stock

30

SEPARATOR, OIL

2H7-14434-01-00

1
Out of stock

31

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

32

NUT, HEXAGON SMALL

95317-05700-00

—

$6.18

In stock

33

SILENCER, INTAKE 1

2H7-14431-01-00

1
Out of stock

34

BINDER 1

(2H7-1441G-00-00)

1
Out of stock

35

BINDER 2

(2H7-1441H-00-00)

1
Out of stock

36

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

37

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

38

CASE, AIR CLEANER 2

2H7-14421-01-00

1
Out of stock

39

COVER, CLNR CASE 3

2H7-1442A-00-00

1
Out of stock

40

COVER, CLNR CASE 4

2H7-1442E-00-00

1
Out of stock

41

NUT 6504269100

90183-05003-00

1
Out of stock

42

ELEMENT AIR CLEANER

2H7-14451-01-00

1
Out of stock

43

BOLT, WING

90122-06013-00

1
Out of stock

44

BOLT, WING (2H7)

90122-06012-00

—

$4.51

In stock

45

WASHER, PLATE 8221447500

90201-06057-00

—
Out of stock

46

O-RING

93210-05098-00

—

$2.78

In stock

47

WASHER, SPEC''L SHAP

90209-05182-00

1
Out of stock

48

SEAL

2H7-14462-10-00

1
Out of stock

49

CAP, CLEANER CASE 2

2H7-14422-00-00

1
Out of stock

50

PIPE, BREATHER 1

2H7-11166-00-00

1
Out of stock

51

CLIP (371)

90467-14015-00

—

$7.51

In stock

52

HOSE CLAMP ASSY

90450-58002-00

—

$15.11

In stock

53

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

54

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock
