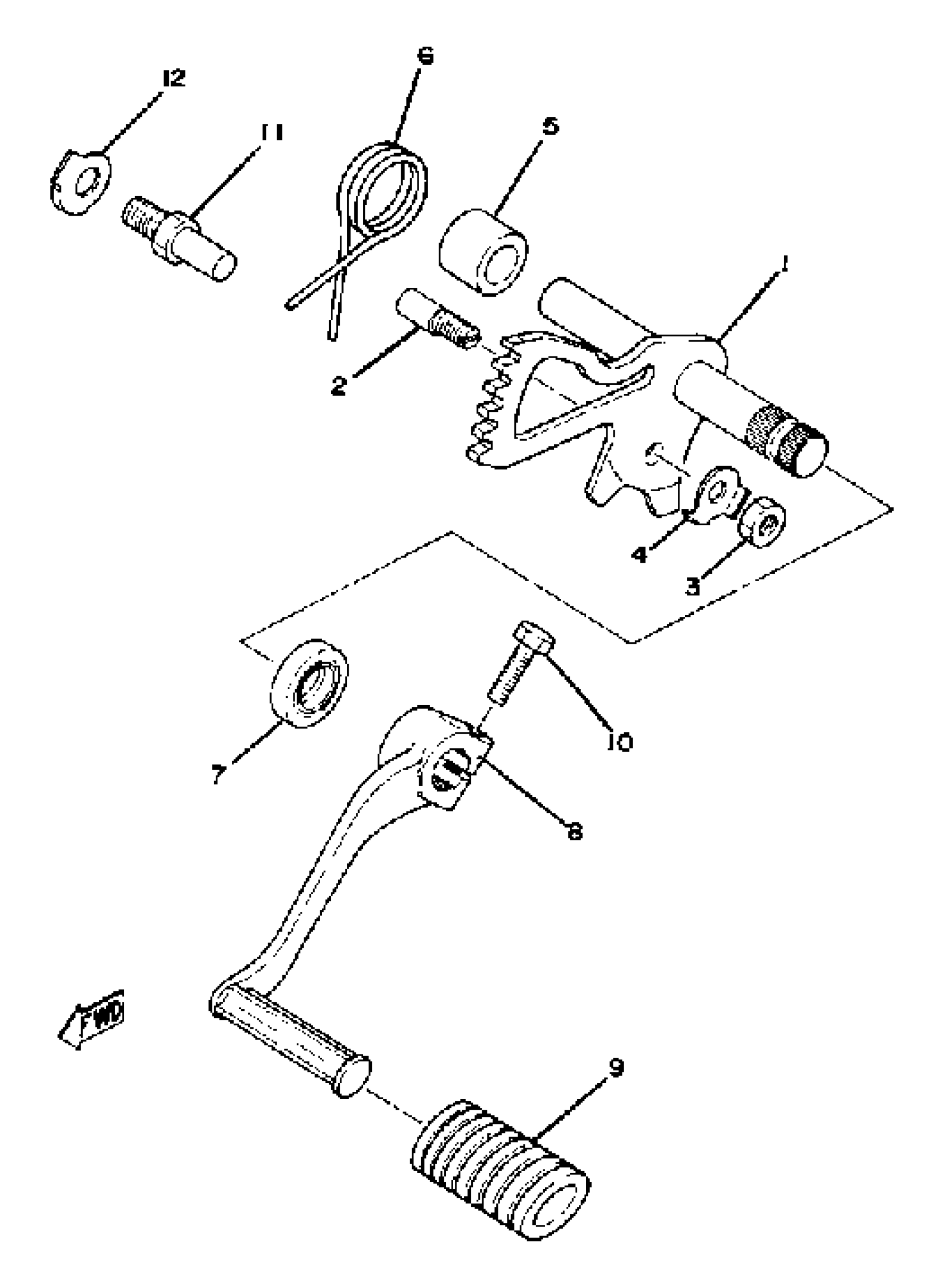

Yamaha XS1100F (XS1100) 1979 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT SHAFT ASSEMBLY.1

2H7-18101-00-00

Unavailable

2

SCREW 214181860000

90149-06017-00

$5.59

3

NUT, HEXAGON

95380-06600-00

$4.11

4

WASHER, LOCK

90215-06016-00

$2.21

5

SPACER

(90560-11026-00)

Unavailable

6

SPRING, TORSION

90508-29361-00

Unavailable

7

SEAL, OIL (30X)

93102-12321-00

$9.45

8

PEDAL, SHIFT

2H7-18111-00-00

Unavailable

9

COVER, CHANGE PEDAL

132-18113-01-00

$5.96

10

BOLT, HEXAGON

97017-06020-00

$2.37

11

BOLT (1J7)

90109-08441-00

$7.04

12

WASHER, LOCK (583 SHIFT)

90215-08115-00

$5.53
