1979 Yamaha XS1100 (XS1100F) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1979 Yamaha XS1100 (XS1100F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

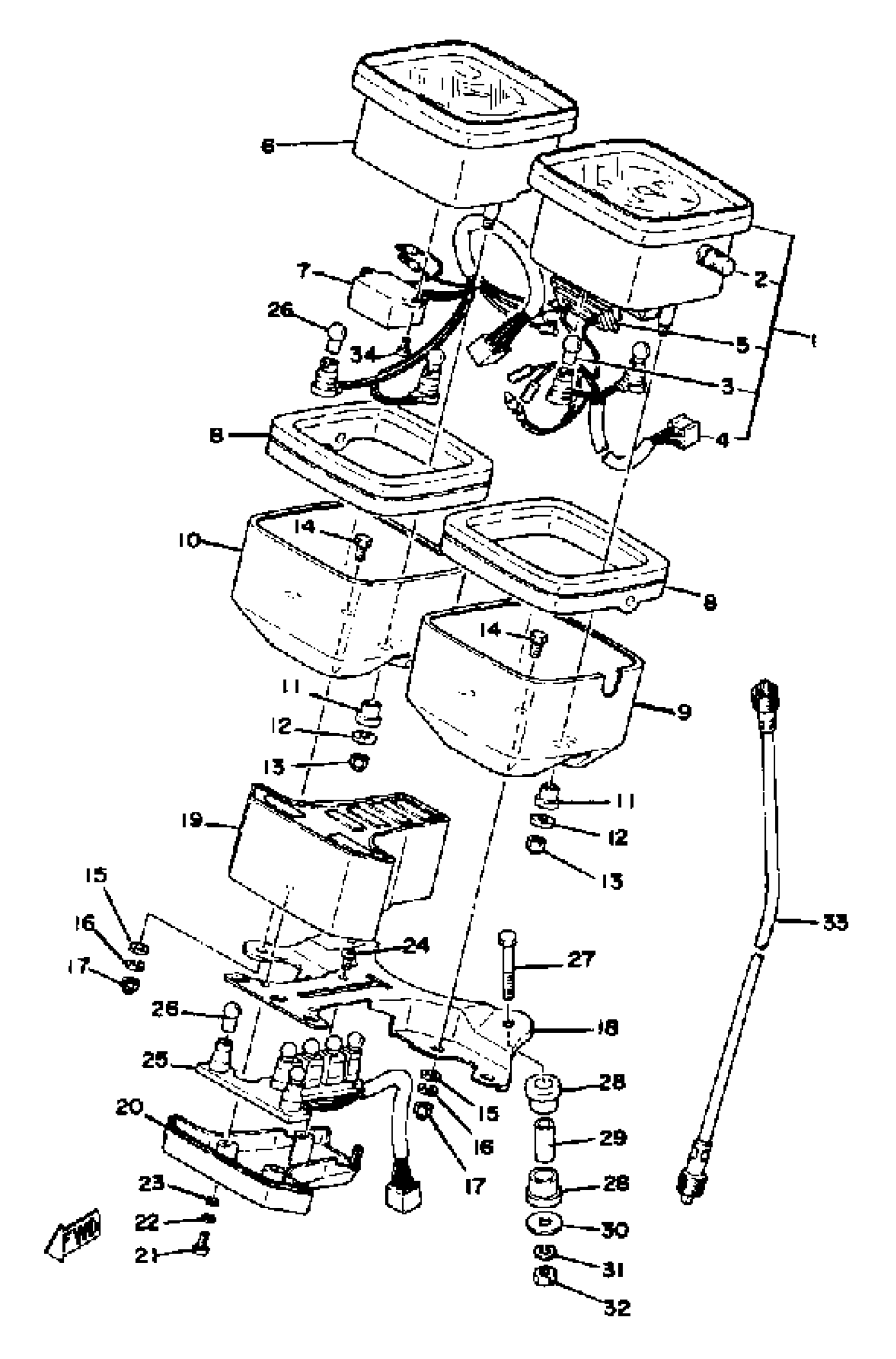

1979 Yamaha XS1100 (XS1100F) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

2H7-83570-A0-00

1
Out of stock

2

. KNOB, TRIP METER

1E6-83578-60-00

1
Out of stock

3

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

4

SOCKET, METER

(2H7-83536-00-00)

1
Out of stock

5

. SENDER

2H7-83556-00-00

1
Out of stock

6

TACHOMETER ASSEMBLY

2H7-83540-01-00

1
Out of stock

7

REGULATOR, FL METER

2H7-85755-01-00

1
Out of stock

8

DAMPER

2H7-83513-01-00

1
Out of stock

9

COVER, SPEEDOMETER

2H7-83507-00-00

1
Out of stock

10

COVER, TACHOMETER

2H7-83508-00-00

1
Out of stock

11

DAMPER, METER COVER FITTING

584-83523-00-00

1
Out of stock

12

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

13

NUT (CROWN)

95303-05800-00

1
Out of stock

14

BOLT

584-83546-00-00

1
Out of stock

15

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

NUT (J17)

95380-06800-00

—

$6.74

In stock

18

BRACKET, METER

2H7-83519-00-00

1
Out of stock

19

PILOT BOX, UPPER

2H9-83568-00-00

1
Out of stock

20

PILOT BOX, LOWER

(2H7-83569-00-00)

1
Out of stock

21

SCREW, PAN HEAD

98507-04018-00

—
Out of stock

22

WASHER(6TA)

92907-04100-00

—

$5.98

In stock

23

WASHER(JF2)

92907-04600-00

—

$1.23

In stock

24

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

25

SOCKET CORD ASSEMBLY

2H7-83509-01-00

1
Out of stock

26

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

27

BOLT(8BC)

97017-06040-00

—
Out of stock

28

DAMPER, METER BRACKET

584-83541-00-00

—
Out of stock

29

COLLAR (877)

90387-06249-00

—
Out of stock

30

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

31

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

32

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

33

SPEEDOMETER CABLE ASSY

16M-83550-01-00

—
Out of stock

34

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock
