1978 Yamaha XS1100 (XS1100E) Shift CAM-Shift Fork Diagram

← All diagrams

Find the part on the Shift CAM-Shift Fork diagram for your 1978 Yamaha XS1100 (XS1100E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

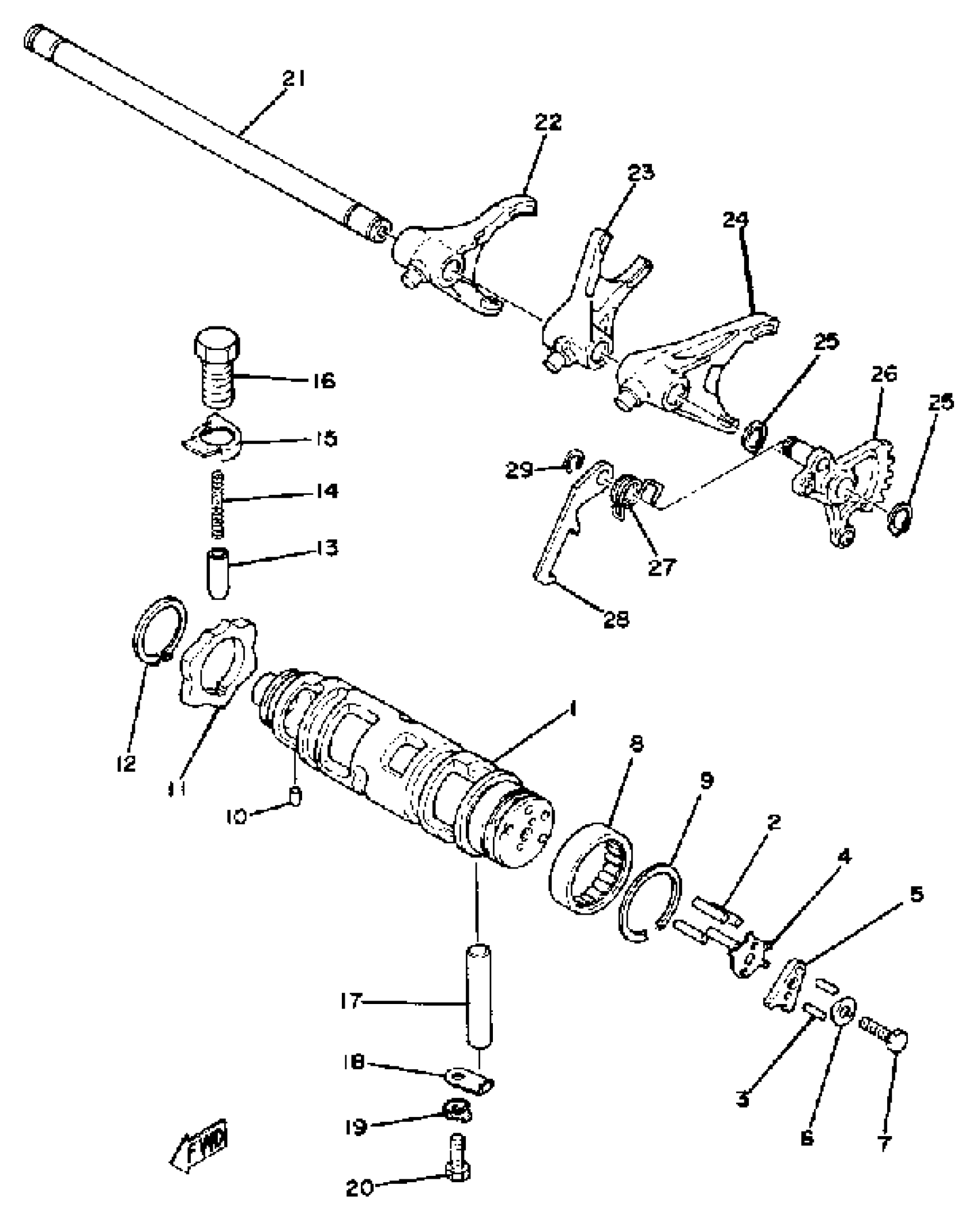

1978 Yamaha XS1100 (XS1100E) Shift CAM-Shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSEMBLY

2H7-18540-00-00

1
Out of stock

2

PIN, DOWEL(4SS)

93604-18251-00

1
Out of stock

3

PIN (2H7)

93603-10049-00

—
Out of stock

4

PLATE, SIDE 1

2H7-18561-00-00

1
Out of stock

5

PLATE, SIDE 2

2H7-18566-00-00

1
Out of stock

6

WASHER, LOCK

90215-05140-00

1
Out of stock

7

BOLT, HEXAGON

97013-05020-00

1

$2.68

In stock

8

BRG,CYL-CAL ROLLER 22G NT

93315-23612-00

1
Out of stock

9

CIRCLIP (371)

93440-34025-00

1
Out of stock

10

PIN, DOWEL (278)

93604-08071-00

1

$6.17

In stock

11

PLATE STOPPER SET

2J2-W1814-00-00

—
Out of stock

12

CIRCLIP(4A6)

99009-30400-00

1

$6.55

In stock

13

STOPPER, CAM

1J7-18547-00-00

1

$9.00

In stock

14

SPRING, COMPRESSION

90501-10196-00

1
Out of stock

15

WASHER, LOCK

90215-15141-00

1
Out of stock

16

SCREW, SPEC''L SHAPE

90149-14117-00

1
Out of stock

17

PIN, DOWEL

93608-52138-00

1
Out of stock

18

PLATE, STOPPER

2H7-15531-00-00

—

$1.95

In stock

19

WASHER, LOCK (371)

90215-06040-00

—

$2.45

In stock

20

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

21

BAR, SHIF FRK GDE 1

2H7-18531-01-00

1
Out of stock

22

FORK, SHIFT 3

2H7-18513-00-00

1
Out of stock

23

FORK, SHIFT 2

2H7-18512-00-00

1
Out of stock

24

FORK, SHIFT 1

2H7-18511-00-00

1
Out of stock

25

CIRCLIP(10Y)

99009-12400-00

—

$3.08

In stock

26

LEVER, SHIFT 2

(2H7-18122-00-00)

1
Out of stock

27

SPRING, TORSION

90508-10362-00

1
Out of stock

28

LEVER, SHIFT 3

2H7-18151-00-00

1
Out of stock

29

. CIRCLIP, PLUNGER

93440-08001-00

1
Out of stock
