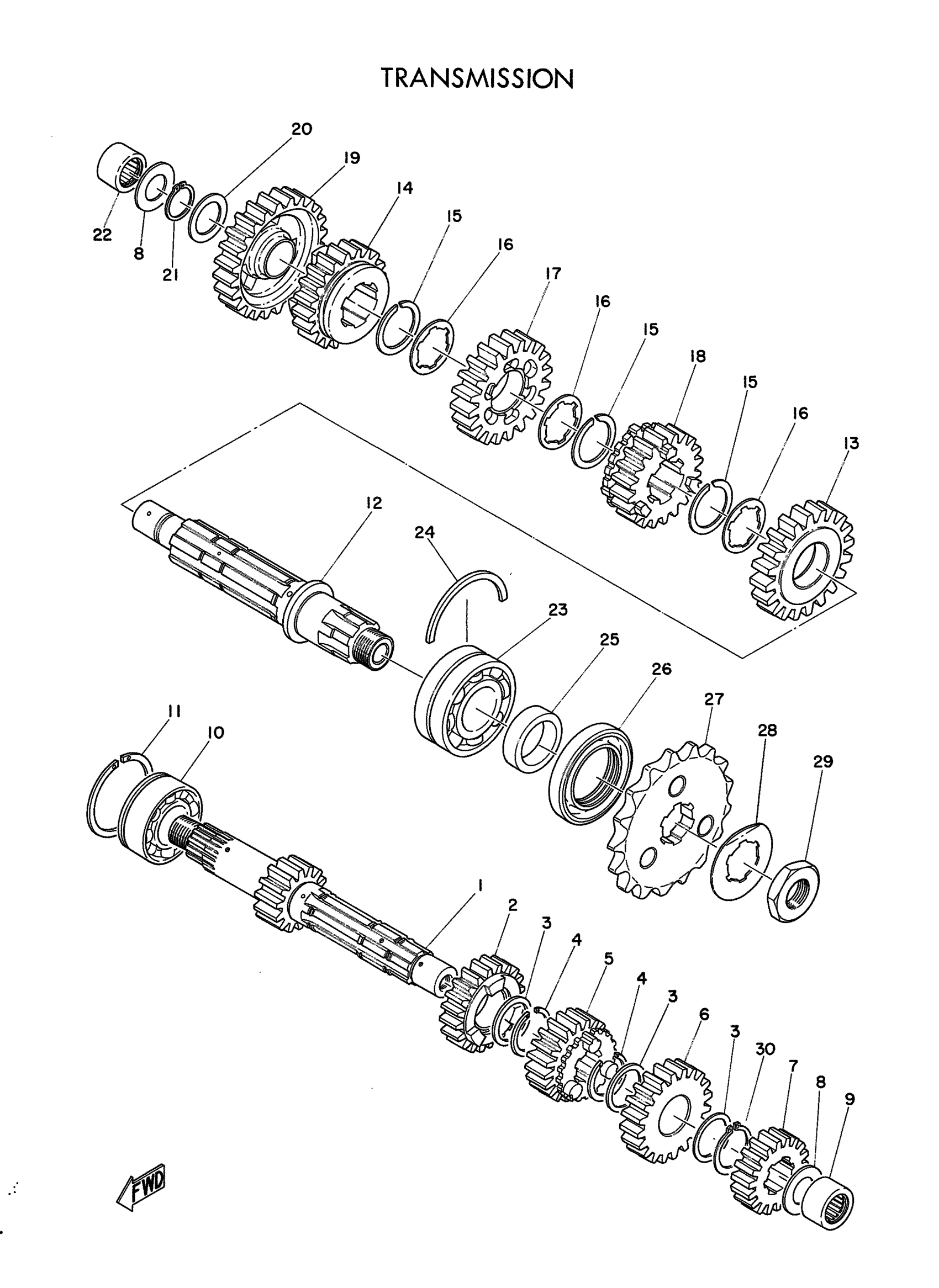

Yamaha XS1 (XS1_XS1) 1970 TRANSMISSION Diagram

#

Description

Price

1

AXLE, MAIN

(256-17411-00-00)

Unavailable

1

AXLE, MAIN

(306-17411-00-00)

Unavailable

2

GEAR, 4TH PINION

(256-17141-01-00)

Unavailable

3

WASHER, PLATE(59W)

90201-253K0-00

$8.49

3

WASHER, PLATE(59W)

90201-253K0-00

$8.49

4

CIRCLIP

93440-25020-00

$9.49

5

GEAR, 3RD PINION

(256-17131-00-00)

Unavailable

6

GEAR, 3RD PINION

(256-17131-03-00)

Unavailable

6

GEAR, 5TH PINION

(341-17151-03-00)

Unavailable

6

GEAR 5TH PINION

(99999-00906-00)

Unavailable

7

GEAR, 2ND PINION

(256-17121-00-00)

Unavailable

8

SHIM 1

137-17427-00-06

Unavailable

8

SHIM 1

(137-17427-00-09)

Unavailable

9

BEARING, CYLINDER.#13

(93313-32006-00)

Unavailable

9

BEARING, CYLINDER.#13

93313-32007-00

Unavailable

10

BEARING(89A)

93305-20509-00

Unavailable

11

CIRCLIP (256)

93440-52014-00

Unavailable

12

AXLE, DRIVE

(256-17421-00-00)

Unavailable

13

. GEAR, 2ND WHEEL

256-17221-01-00

Unavailable

13

GEAR, 3RD WHEEL

(256-17231-03-00)

Unavailable

13

. GEAR, 5TH WHEEL

256-17251-03-00

Unavailable

13

3RD 4TH WHEEL GEAR

(99999-00977-00)

Unavailable

14

GEAR, 4TH WHEEL (23T)

256-17241-01-00

Unavailable

15

CIRCLIP, OUTER

93440-30015-00

Unavailable

16

WASHER, GEAR HOLD 3

256-17236-00-10

Unavailable

16

WASHER, GEAR HOLD 3

256-17236-00-12

Unavailable

17

. GEAR, 2ND WHEEL

256-17221-01-00

Unavailable

17

GEAR, 3RD WHEEL

(256-17231-03-00)

Unavailable

17

. GEAR, 5TH WHEEL

256-17251-03-00

Unavailable

17

3RD 4TH WHEEL GEAR

(99999-00977-00)

Unavailable

18

. GEAR, 2ND WHEEL

256-17221-01-00

Unavailable

18

GEAR, 3RD WHEEL

(256-17231-03-00)

Unavailable

18

. GEAR, 5TH WHEEL

256-17251-03-00

Unavailable

18

3RD 4TH WHEEL GEAR

(99999-00977-00)

Unavailable

19

GEAR, 1ST WHEEL

(256-17211-00-00)

Unavailable

19

GEAR, 1ST WHEEL

306-17211-00-00

Unavailable

20

WASHER PLATE 132172160000

90201-20266-00

Unavailable

21

CIRCLIP, S-TYPE

93410-20021-00

Unavailable

22

BEARING, CYLINDER.#13

93313-32005-00

Unavailable

23

BEARING

93305-20603-00

Unavailable

24

CIRCLIP 1

168-17424-00-00

Unavailable

25

COLLAR

90387-30200-00

Unavailable

26

OIL SEAL (40X62X9-447)

93105-40018-00

Unavailable

27

SPROCKET, DRIVE

93855-17129-00

Unavailable

28

WASHER, LOCK

90215-26024-00

Unavailable

29

NUT, SPEC''L SHAPE

90179-22022-00

Unavailable

30

CIRCLIP (256)

93410-25017-00

Unavailable

30

CIRCLIP

93440-25020-00

$9.49
