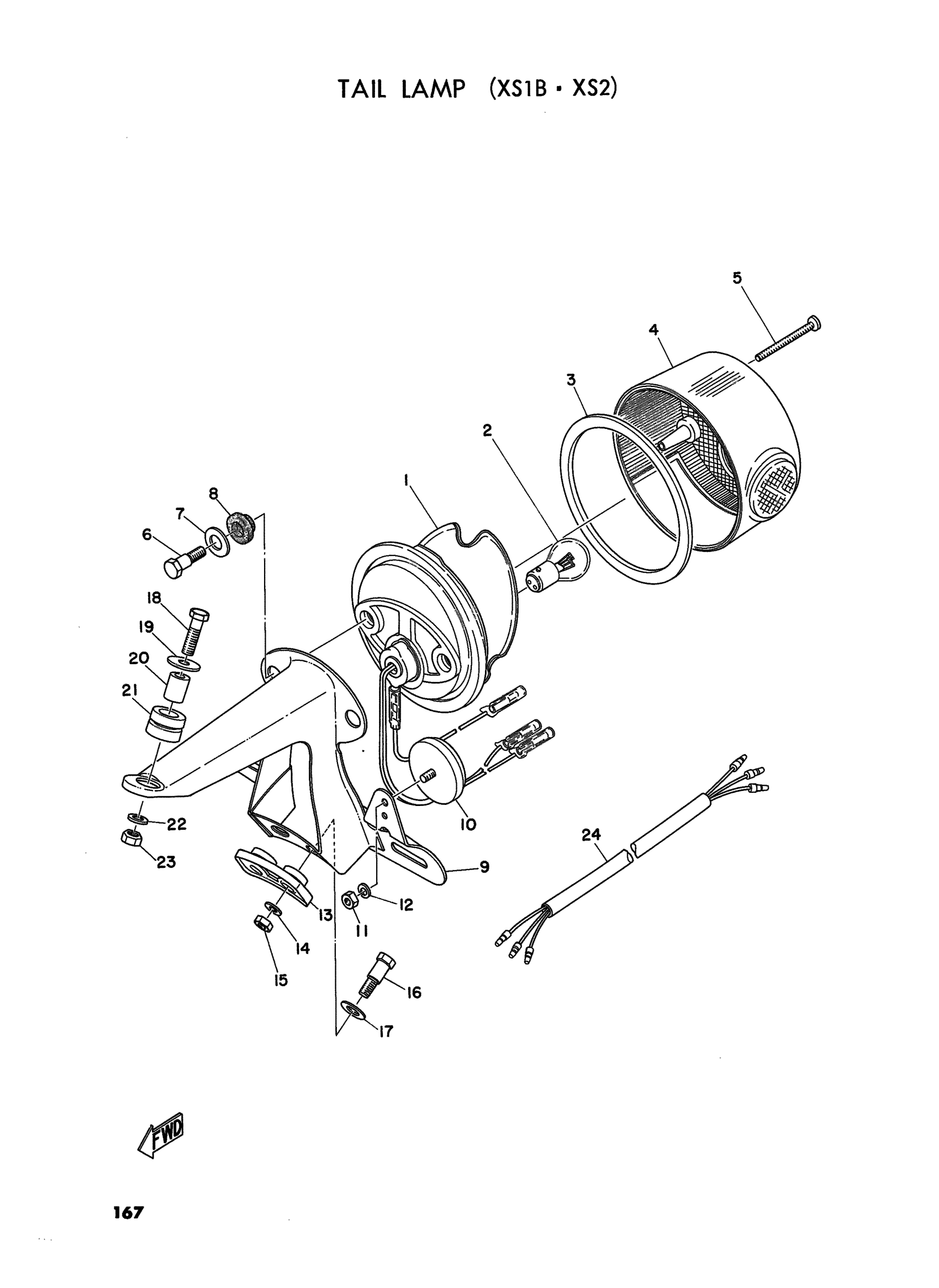

Yamaha XS1 (XS1_XS1) 1970 TAIL LAMP (XS1B) Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSEMBLY

(306-84710-60-00)

Unavailable

1

. UNAVAILABLE IN PRICE BOOK (366-84711-60)

366-84711-61-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

3

. GASKET, LENS

275-84523-60-00

Unavailable

4

. LENS, TAIL LIGHT

341-84721-60-00

Unavailable

5

SCREW, PANHEAD (4G7)

98580-04055-00

Unavailable

6

SCREW

(479-84526-00-00)

Unavailable

7

WASHER, SPECIAL

2H7-84754-00-00

$10.99

8

. DAMPER

275-84527-60-00

Unavailable

9

. BRACKET, LICENSE

341-84751-61-93

Unavailable

10

REFLECTOR, REAR 1

449-85131-02-00

$30.99

11

NUT, HEXAGON (663)

95380-05600-00

$8.49

12

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

13

DAMPER

214-84553-01-00

$7.99

14

WASHER, SPRING

92995-06100-00

Unavailable

15

NUT, HEXAGON

95380-06600-00

Unavailable

16

BOLT 168217380000

90109-06017-00

Unavailable

17

WASHER, PLAIN

92990-08200-00

Unavailable

18

BOLT, HEXAGON

97017-06025-00

Unavailable

19

WASHER

90209-06012-00

Unavailable

20

COLLAR (J10)

90387-06026-00

Unavailable

21

GROMMET 839774310000

90480-14023-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

NUT, HEXAGON

95380-06600-00

Unavailable

24

CORD, TAILLIGHT

251-84517-60-00

Unavailable

25

. WASHER

341-84722-60-00

Unavailable
