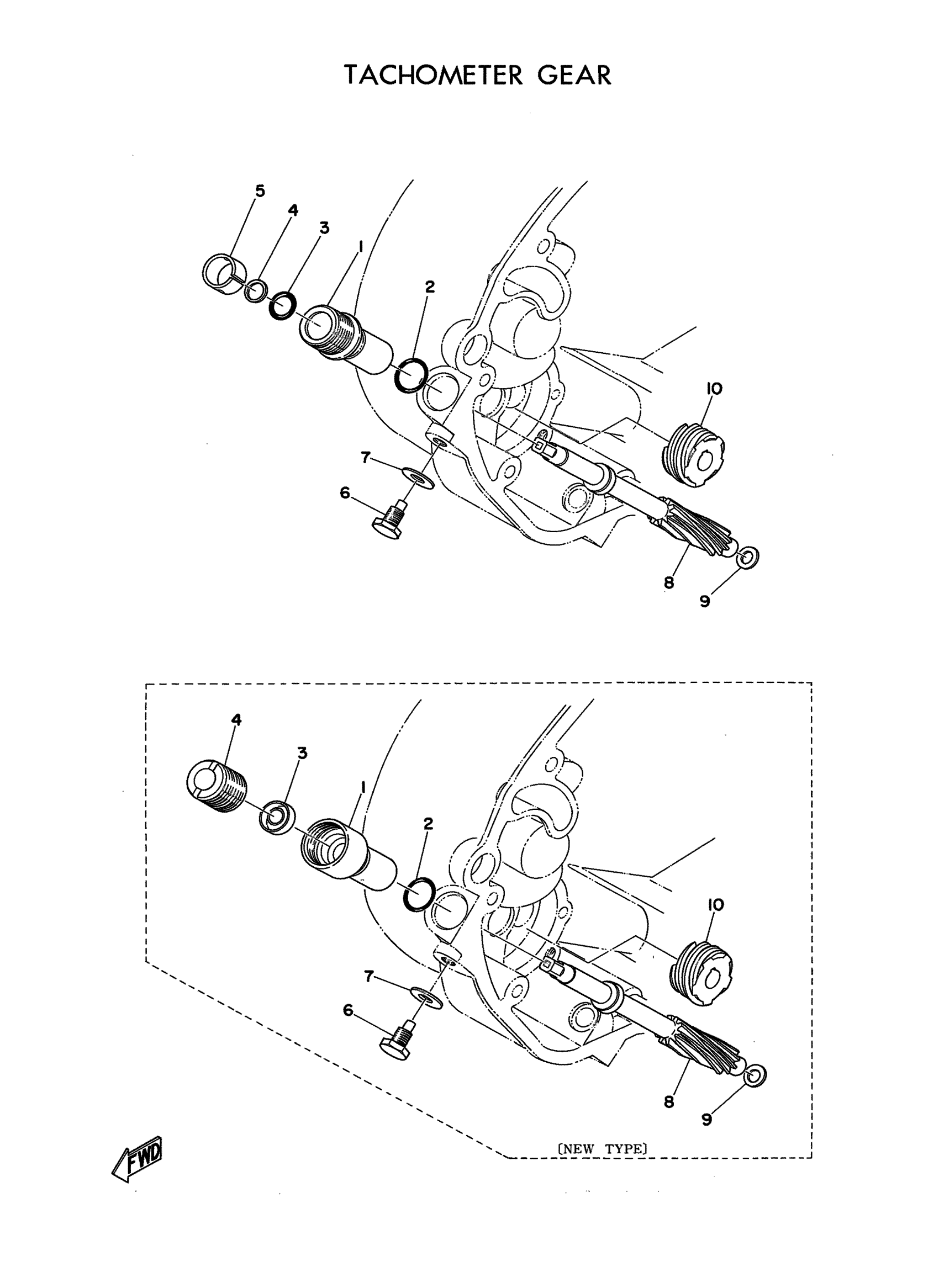

Yamaha XS1 (XS1_XS1) 1970 TACHOMETER GEAR Diagram

#

Description
Price

1

HOUSING, TACH GEAR

256-17811-01-00

Unavailable

1

HOUSING, TACH GEAR

256-17811-01-00

Unavailable

1

GEAR, DRIVEN

256-17841-01-00

Unavailable

1

ADAPTER

256-17848-00-00

Unavailable

1

OIL SEAL (7X13X4-256)

93104-07036-00

Unavailable

1

HOUSING, TACH GEAR

(99999-00908-00)

Unavailable

2

O-RING (1J7)

93210-11313-00

$8.49

3

OIL SEAL (7X13X4-256)

93104-07036-00

Unavailable

3

O-RING

93210-07438-00

$8.49

4

SHIM (7.5-10.8-0.4)

214-17847-00-00

Unavailable

4

ADAPTER

256-17848-00-00

Unavailable

5

BUSH, FORMED (214-17815-00) 001

90383-10005-00

Unavailable

6

BOLT

90109-06076-00

Unavailable

7

GASKET 256113960000

90430-06014-00

Unavailable

8

GEAR, DRIVEN

256-17841-01-00

Unavailable

8

HOUSING, TACH GEAR

(99999-00908-00)

Unavailable

9

WASHER, PLATE (1E7)

90201-08624-00

Unavailable

10

GEAR, DRIVE

256-17831-00-00

Unavailable
