STAND - FOOT REST - BRAKE PEDAL

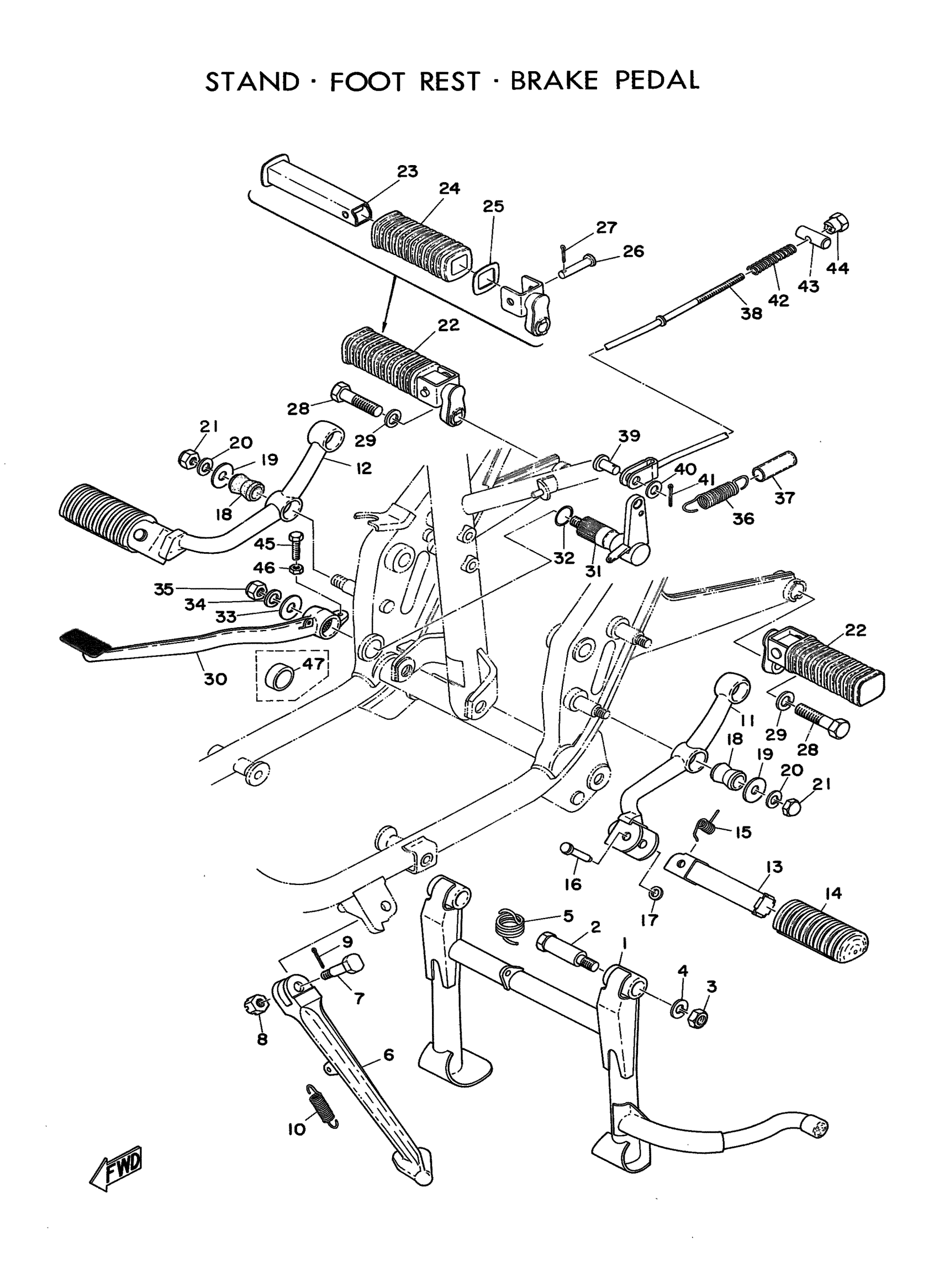

Yamaha XS1 (XS1_XS1) 1970 STAND - FOOT REST - BRAKE PEDAL Diagram
#
1
STAND, MAIN
(256-27111-09-00)
Unavailable
1
FRT FOOTREST ASSEMBLY L
(256-27410-00-00)
Unavailable
1
FRT FOOTREST ASSEMBLY R
(256-27420-00-00)
Unavailable
2
BOLT (256-27112-01)
90109-10015-00
Unavailable
3
NUT, SELF LOCKING
90185-10031-00
Unavailable
5
SPRING, TENSION
90506-50064-00
Unavailable
6
STAND, SIDE
256-27311-00-00
Unavailable
7
BOLT
90109-08185-00
Unavailable
8
NUT, SLOTTED
95307-08900-00
Unavailable
11
SPROCKET
NOTAVAILABLE
Unavailable
12
SPROCKET
NOTAVAILABLE
Unavailable
13
. FOOTREST
256-27451-00-00
Unavailable
14
. COVER, FOOTREST
256-27413-00-00
Unavailable
15
SPRING, TORSION (214-27426-00)
90508-20023-00
Unavailable
16
PIN (214-27418-00)
90243-08006-00
Unavailable
17
WASHER, PLATE (214-27417-00)
90201-06042-00
Unavailable
18
DAMPER, FOOTREST
256-27414-00-00
Unavailable
19
WASHER, PLATE (4W3)
90201-086A3-00
Unavailable
19
WASHER, PLATE(3BM)
90201-105R9-00
Unavailable
19
WASHER, PLATE (3X3)
90201-15797-00
Unavailable
20
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
21
NUT, CROWN
95303-08800-00
Unavailable
21
NUT, CROWN (650)
95380-10800-00
Unavailable
22
RR FOOTREST ASSEMBLY 1
256-27430-00-00
Unavailable
23
. FOOTREST, REAR 1
168-27431-10-00
Unavailable
24
. COVER, RR FOOTREST
307-27433-00-00
Unavailable
25
. WASHER, SPEC''L SHAP (168-27437-10)
90209-18117-00
Unavailable
26
PIN, CLEVIS (2F9)
91701-06035-00
Unavailable
27
PIN, COTTER
91490-16020-00
Unavailable
28
BOLT, HEXAGON (722)
90101-12480-00
Unavailable
29
YBS67-12 WASHER,SPRING
92990-12100-00
Unavailable
30
PEDAL, BRAKE
(256-27211-00-93)
Unavailable
31
SHAFT, BRAKE PEDAL 001
(256-27212-01-00)
Unavailable
32
NO LONGER AVAILABLE
93210-18113-00
Unavailable
33
WASHER, PLATE(3BM)
90201-105R9-00
Unavailable
33
WASHER, PLATE (3X3)
90201-15797-00
Unavailable
35
NUT, CROWN (650)
95380-10800-00
Unavailable
36
SPRING TENSION 137272160000
90506-23045-00
Unavailable
37
HOSE
(90445-19259-00)
Unavailable
38
ROD, BRAKE
256-27231-00-00
Unavailable
39
PIN W/HOLE 307181180000
90240-08013-00
Unavailable
40
WASHER, PLATE 1562722600
90201-08083-00
Unavailable
42
SPRING, COMPRESSION (168-27236-00)
90501-10073-00
Unavailable
43
PIN, SPEC''L SHAPE (168-27237-00)
90249-12007-00
Unavailable
44
NUT, SPEC''L SHAPE (168-27238-00)
90179-07031-00
Unavailable
45
BOLT, HEXAGON
97017-06025-00
Unavailable
46
NUT(650)
95380-06700-00
Unavailable
47
COLLAR
90387-20155-00
Unavailable
