- XS1 (XS1_XS1) 1970
SIDE COVER

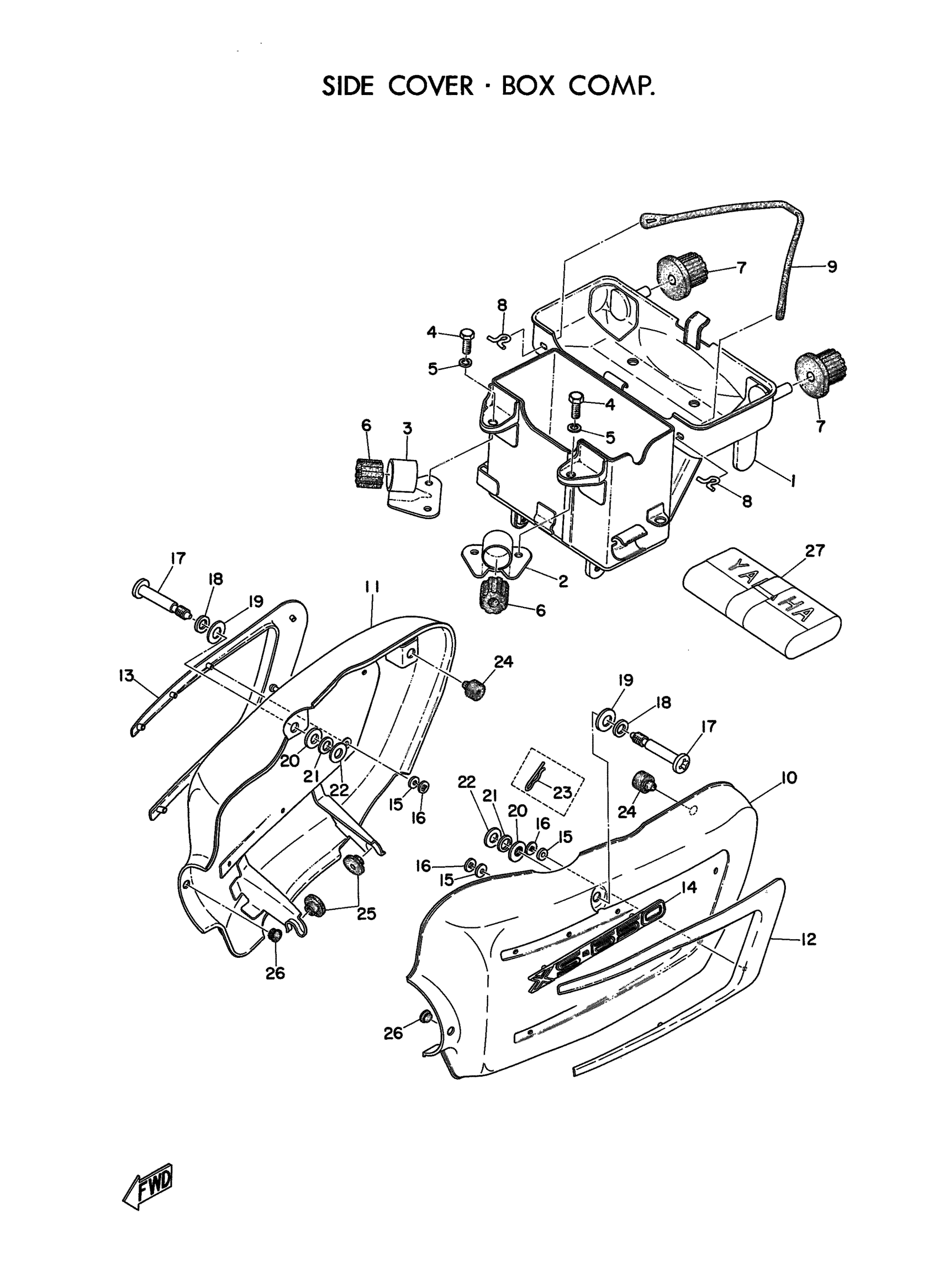

Yamaha XS1 (XS1_XS1) 1970 SIDE COVER Diagram
#
1
BOX
(256-21170-00-33)
Unavailable
1
BOX, BATT.
(306-21170-01-33)
Unavailable
2
BRACKET, BATT BOX
(256-21149-00-00)
Unavailable
2
BRACKET, BATT BOX
(306-21149-00-00)
Unavailable
3
BRACKET, BATT BOX
(256-21344-00-00)
Unavailable
3
BRACKET, BATT BOX
(306-21344-00-00)
Unavailable
5
WASHER, SPRING
92995-06100-00
Unavailable
7
DAMPER
256-21747-00-00
Unavailable
8
HOOK, TOOL BAND
256-21366-00-00
Unavailable
9
BAND, TOOL
256-21376-00-00
Unavailable
10
COVER, SIDE 1
(256-21711-01-52)
Unavailable
10
COVER, SIDE 1 (256-21711-01-64)
256-21711-01-K9
Unavailable
11
COVER, SIDE 2
(256-21721-01-52)
Unavailable
11
COVER, SIDE 2
(256-21721-01-K9)
Unavailable
12
MOLD 1
256-21781-00-00
Unavailable
13
MOLD 2
256-21782-00-00
Unavailable
14
EMBLEM 6
306-21786-00-00
Unavailable
14
EMBLEM 6
306-21786-00-00
Unavailable
15
WASHER PLATE 174283160000
90202-04003-00
Unavailable
16
NUT SPRING 116283170100
90183-04005-00
Unavailable
17
BOLT (256-21712-02) 002
90109-08189-00
Unavailable
18
WASHER, PLAIN 2562171501
90201-10123-00
Unavailable
18
WASHER, PLATE
(90202-08020-00)
Unavailable
18
WASHER, PLAIN
92990-08200-00
Unavailable
19
WASHER, PLATE (10-18-1.5) (256-21725-00) 002
90202-10023-00
Unavailable
20
WASHER, PLATE 2562171800
90201-08088-00
Unavailable
21
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
22
NUT, SPEC''L SHAPE
90179-08035-00
Unavailable
23
CLIP (156-83525-00)
90468-10050-00
Unavailable
24
DAMPER, LOCATING 1
(137-21778-00-00)
Unavailable
25
DAMPER
256-21746-00-00
Unavailable
26
DAMPER, SIDE COVER
256-21717-00-00
Unavailable
27
TOOL KIT
3J3-W2810-00-00
Unavailable
28
EMBLEM 7
(366-21787-00-00)
Unavailable
29
EMBLEM 5
341-21785-00-00
Unavailable
