Description

Price

1

SHIFT SHAFT ASY. 1

256-18101-03-00

Unavailable

1

PEDAL, SHIFT

2J2-18111-01-00

$51.99

2

SPRING, TENSION

90506-08007-00

Unavailable

3

SPRING, TORSION

90508-32559-00

Unavailable

4

SCREW, SPEC''L SHAPE

(90149-10018-00)

Unavailable

5

WASHER, LOCK

(256-18139-00-00)

Unavailable

5

WASHER, LOCK

90215-10105-00

Unavailable

6

NUT, HEXAGON

90170-10038-00

$4.67

7

OIL SEAL (14X24X6-256)

93109-14010-00

$13.49

8

WASHER PLATE 248181370000

90201-14220-00

$8.49

9

. CIRCLIP

99001-12600-00

Unavailable

10

GUIDE, CHAIN 001

256-17466-00-00

Unavailable

12

COVER, CHANGE PEDAL

132-18113-01-00

$7.99

13

BOLT(7U8)

97080-06020-00

Unavailable

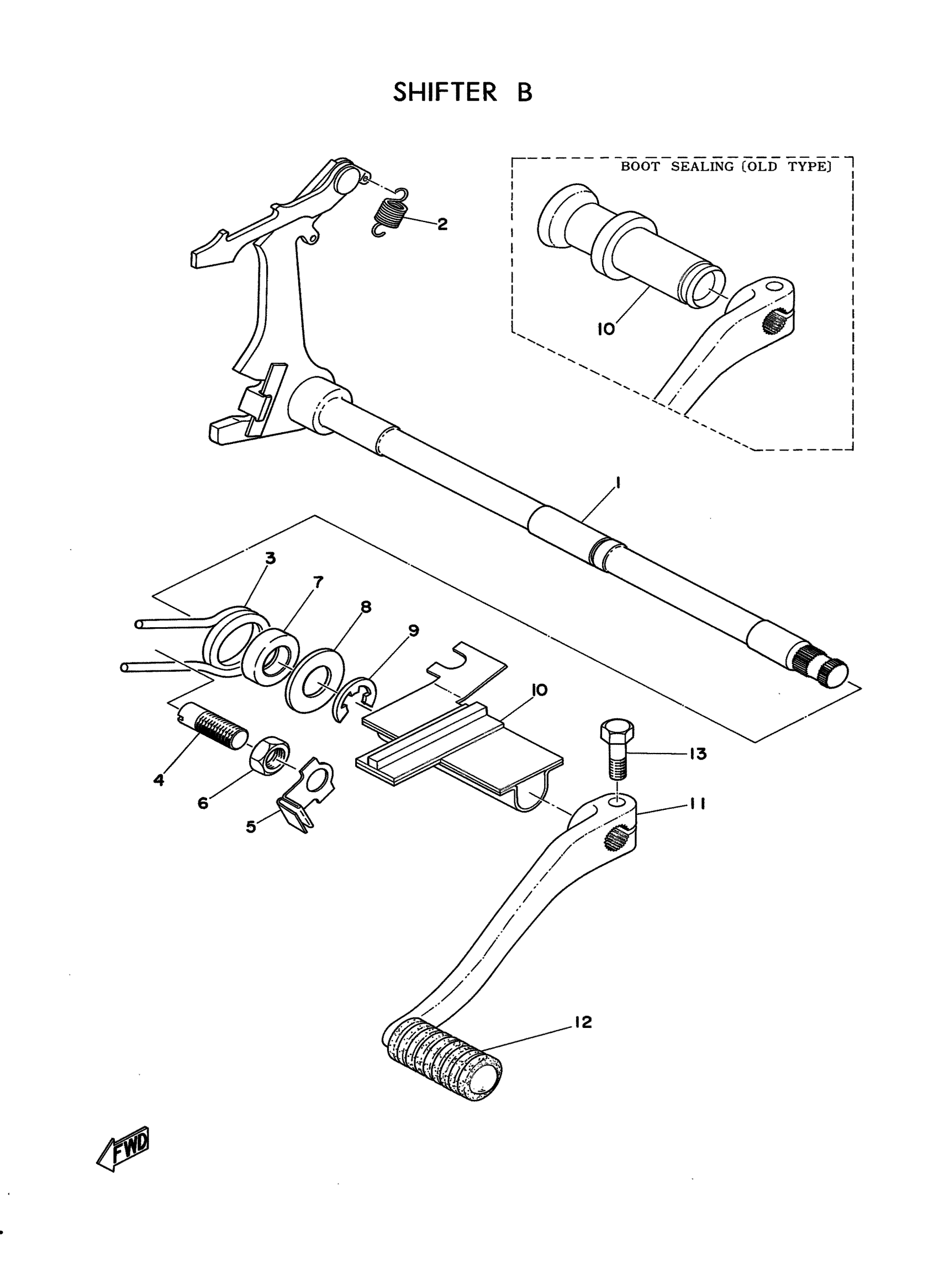

Yamaha XS1 (XS1_XS1) 1970 SHIFTER B Diagram

SHIFT SHAFT ASY. 1

PEDAL, SHIFT

SPRING, TENSION

SPRING, TORSION

SCREW, SPEC''L SHAPE

WASHER, LOCK

WASHER, LOCK

NUT, HEXAGON

OIL SEAL (14X24X6-256)

WASHER PLATE 248181370000

. CIRCLIP

GUIDE, CHAIN 001

COVER, CHANGE PEDAL

BOLT(7U8)
