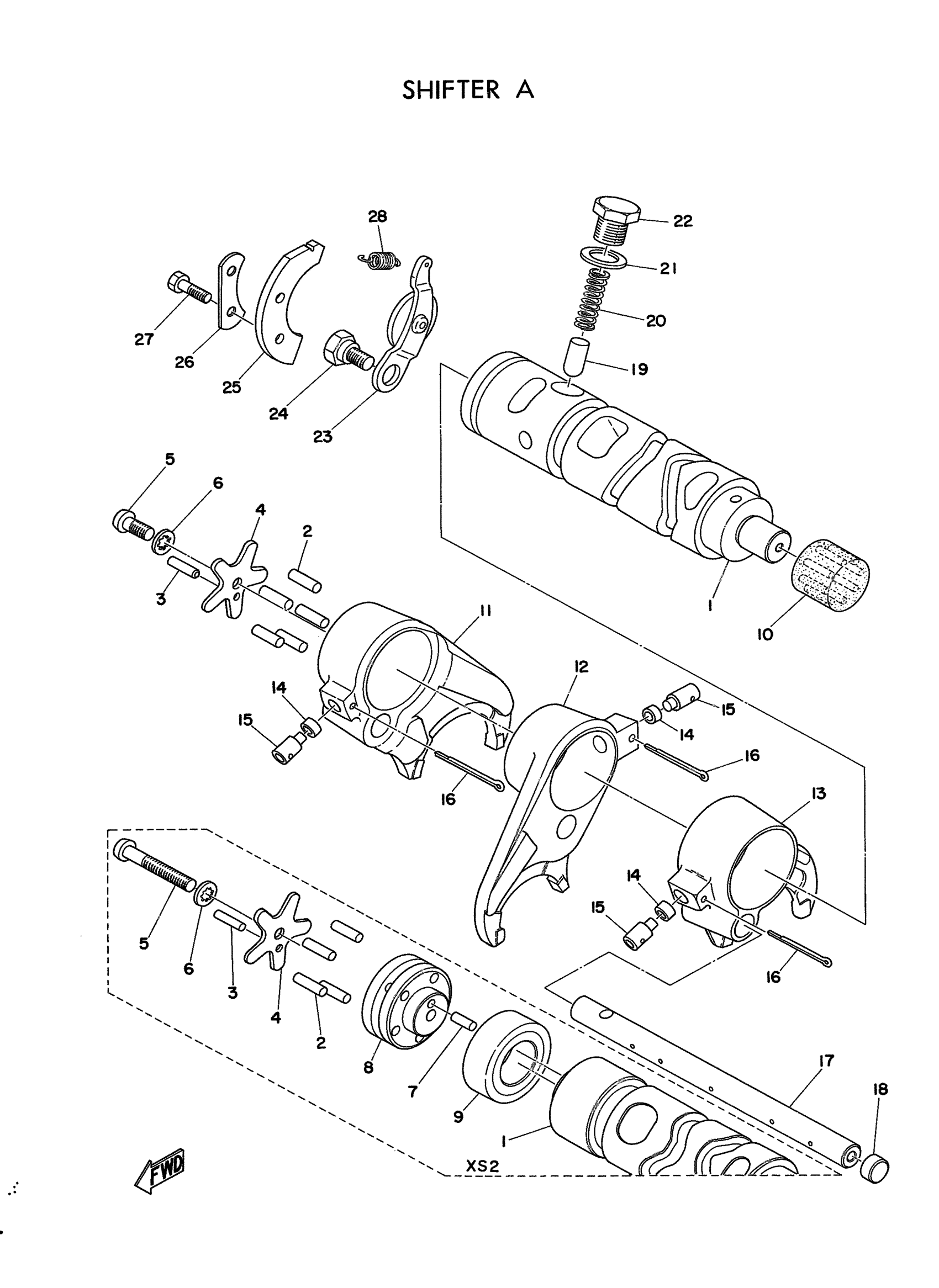

Yamaha XS1 (XS1_XS1) 1970 SHIFTER A Diagram

#

Description
Price

1

SHIFT CAM ASSEMBLY

(256-18540-00-00)

Unavailable

1

SHIFT CAM ASSEMBLY

306-18540-00-00

Unavailable

1

SPROCKET

NOTAVAILABLE

Unavailable

2

PIN,DOWEL (137)

93604-14012-00

$1.81

2

PIN,DOWEL (137)

93604-14012-00

$1.81

3

PIN, DOWEL

93603-14026-00

$8.49

4

SCREW, STPPR PLATE

(168-18563-01-00)

Unavailable

5

SCREW, PAN

98507-05035-00

$8.49

5

SCREW, PAN HEAD

98580-05545-00

$7.49

5

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

6

WASHER, TOOTH

92990-05300-00

Unavailable

7

PIN,DOWEL (603)

93604-10011-00

$8.49

8

. CAM, SHIFT 2

(306-18546-00-00)

Unavailable

9

. BEARING, CYLINDER#18

(93318-32003-00)

Unavailable

10

BEARING, CYLINDER.#20

93320-31501-00

Unavailable

11

FORK, SHIFT 3

256-18513-00-00

Unavailable

12

FORK, SHIFT 2

256-18512-00-00

Unavailable

13

FORK, SHIFT 1

256-18511-00-00

Unavailable

14

PIN,SPEC'L SHAPE

90249-05035-00

Unavailable

15

PIN, COTTER

(168-18553-00-00)

Unavailable

15

PIN, SPEC''L SHAPE

(90249-05041-00)

Unavailable

15

PIN, SPEC''L SHAPE (256-18552-00) 003

90249-08001-00

Unavailable

15

PIN, COTTER(6L5)

91490-25030-00

Unavailable

17

BAR, SHIF FRK GDE 1

256-18531-00-00

Unavailable

18

PLUG, BLIND

90334-10006-00

Unavailable

18

PLUG, STRAIGHT (256-15439-00)

90334-10007-00

Unavailable

19

STOPPER, CAM

137-18547-00-00

Unavailable

20

SPRING, COMPRESSION

(90501-09051-00)

Unavailable

20

SPRING, COMPRESSION

90501-10068-00

Unavailable

21

GASKET

90430-16047-00

Unavailable

22

BOLT

90109-16392-00

Unavailable

23

STOPPER LEVER ASSEMBLY

341-18140-00-00

Unavailable

24

BOLT

90109-06181-00

Unavailable

25

PLATE, STOPPER 2

256-18562-00-00

Unavailable

26

PLATE, LOCK SCREW

256-18565-00-00

Unavailable

27

BOLT

90101-06091-00

Unavailable

28

SPRING, TENSION

90506-10022-00

Unavailable
