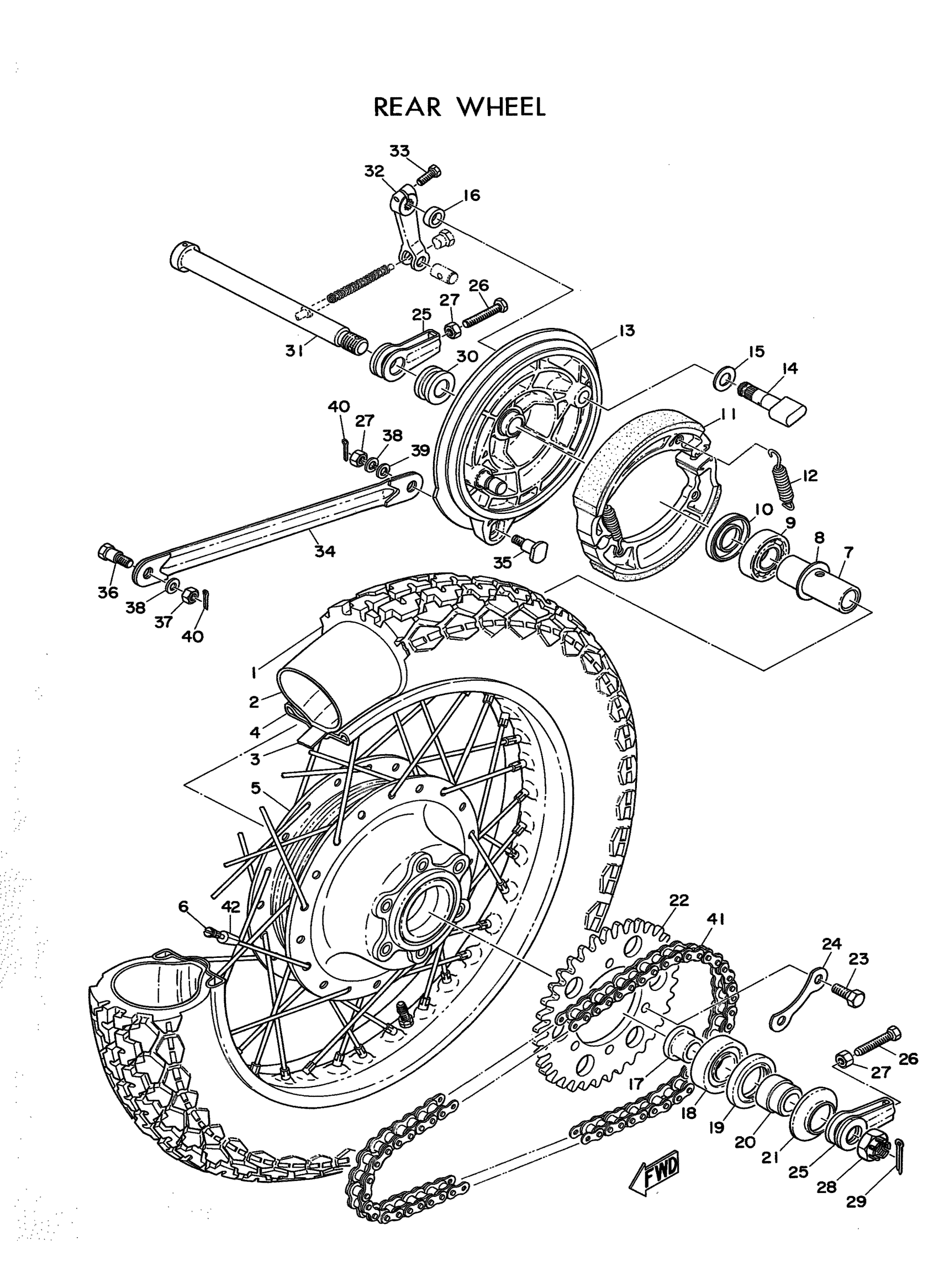

Yamaha XS1 (XS1_XS1) 1970 REAR WHEEL Diagram

#

Description
Price

1

TIRE 400H18 Y987 YOKO

(94140-18340-00)

Unavailable

1

JOINT CHAIN

(94645-30001-00)

Unavailable

1

CHAIN JOINT

94680-05011-00

Unavailable

2

TUBE (5A8)

94212-18188-00

$35.99

3

BAND, RIM (2J4)

94340-18086-00

$17.99

4

RIM 2.15X18

(94421-18049-00)

Unavailable

5

HUB, REAR

(256-25311-00-00)

Unavailable

6

SPOKE SET, REAR

256-25304-00-00

Unavailable

6

SPOKE SET, INNER 2

(256-25396-90-00)

Unavailable

6

SPOKE SET, OUTER 2

(256-25397-90-00)

Unavailable

7

SPACER

90560-20135-00

Unavailable

8

FLANGE, SPACER

4V4-25315-00-00

Unavailable

9

BEARING(3BC)

93306-30437-00

$66.99

10

OIL SEAL (27X52X5-256)

93104-27026-00

$19.99

11

BRAKE SHOE KIT

5R3-W253E-00-00

Unavailable

12

SPRING, TENSION 2462533300

90507-20002-00

Unavailable

13

PLATE BRAKE SHOE

(99999-01046-00)

Unavailable

14

CAMSHAFT

(168-25351-00-00)

Unavailable

15

SHIM, CAM SHAFT

148-25353-00-00

Unavailable

16

SEAL, CAM SHAFT

148-25359-00-00

Unavailable

17

COLLAR

90387-20166-00

Unavailable

18

BRG,R-B 6305ZZ 62MM 232G (6A5)

93306-305U0-00

Unavailable

19

OIL SEAL (35X62X9-256)

93102-35065-00

Unavailable

20

COLLAR

90387-20176-00

Unavailable

21

COVER, HUB DUST

256-25367-00-00

Unavailable

22

SPROCKET, DRIVN 32T (32T)

256-25432-20-33

Unavailable

22

SPROCKET,DRIVN 34T

256-25434-20-00

Unavailable

22

SPROCKET, DRIVN 36T (36T)

256-25436-20-33

Unavailable

22

SPROCKET, DRIVN 38T (38T)

256-25438-20-33

Unavailable

22

SPROCKET, DRIVN 40T (42T)

256-25440-20-33

Unavailable

23

BOLT (583)

90101-10303-00

Unavailable

24

WASHER, LOCK

256-25412-00-00

Unavailable

25

PULLER, CHAIN 1

256-25388-00-00

Unavailable

26

BOLT

90101-08060-00

Unavailable

27

. NUT

95380-08700-00

Unavailable

28

NUT, CASTLE

90171-18043-00

Unavailable

29

PIN, COTTER

91490-40045-00

Unavailable

30

COLLAR (256-25383-00)

90387-20201-00

Unavailable

31

AXLE, WHEEL

256-25381-00-00

Unavailable

32

LEVER, CAM SHAFT

214-25355-00-00

Unavailable

33

BOLT(3DM)

97024-06020-00

Unavailable

34

BAR, TENSION

(256-25371-00-00)

Unavailable

35

BOLT

90109-08184-00

Unavailable

36

BOLT

90109-08375-00

Unavailable

37

NUT(6L2)

95333-08600-00

Unavailable

38

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

39

WASHER, PLAIN

92990-08200-00

Unavailable

40

PIN, COTTER

91490-20025-00

Unavailable

41

530HDS 98L

(94575-30098-00)

Unavailable

42

BALANCER, WHEEL

3HT-25398-00-00

Unavailable
