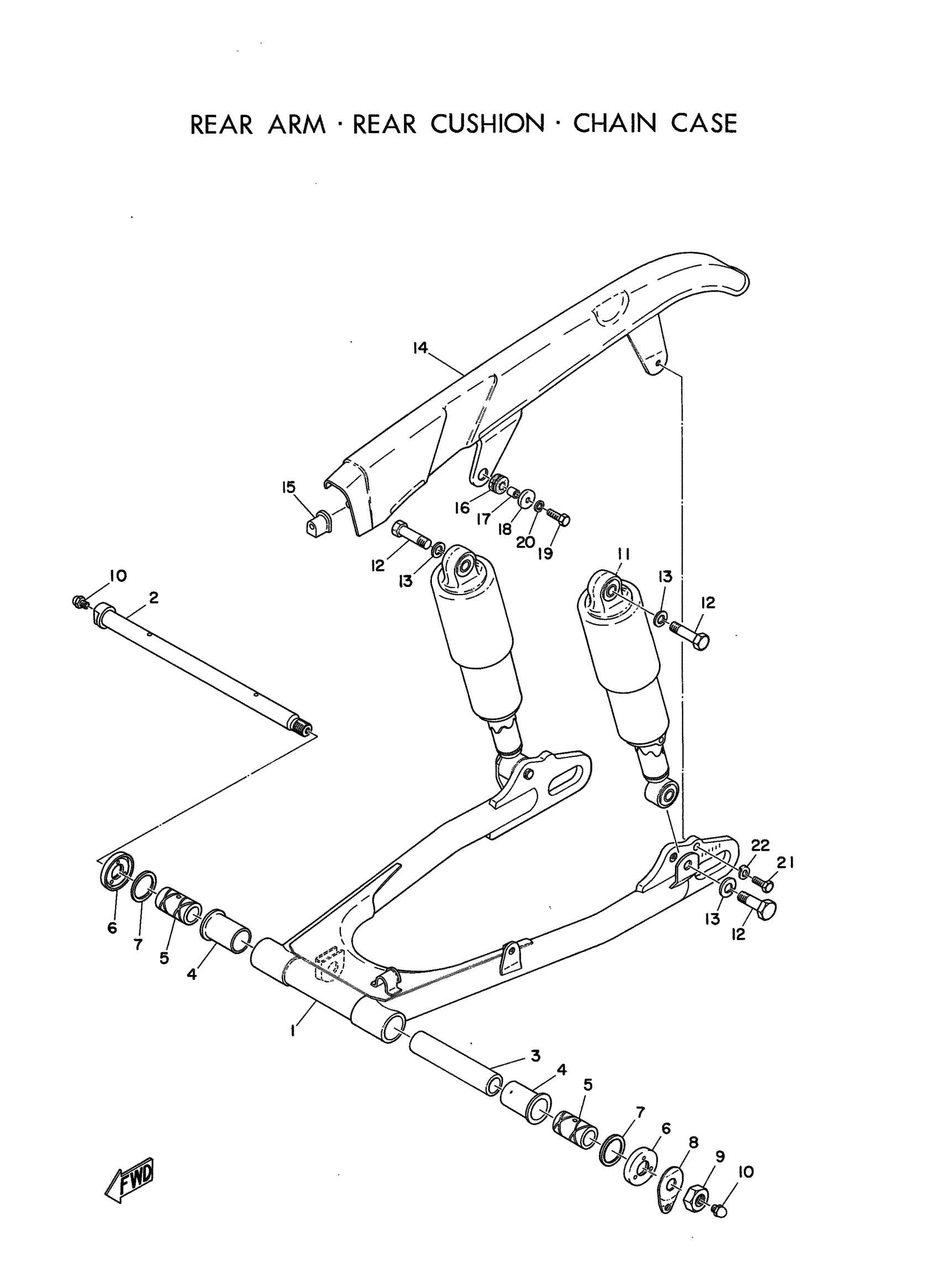

Yamaha XS1 (XS1_XS1) 1970 REAR ARM - REAR CUSHION - CHAIN CASE Diagram

#

Description

Price

1

REAR ARM

(256-22110-00-33)

Unavailable

2

SHAFT, PIVOT

(256-22141-00-00)

Unavailable

2

SHAFT, PIVOT 000

256-22141-02-00

Unavailable

3

COLLAR

90387-16128-00

Unavailable

4

BUSH 1482212300

90386-22018-00

$36.99

4

BUSH (5A9)

90386-22102-00

$40.99

4

BRNZEBUSH XS1-XS1B

(ACC-11110-41-01)

Unavailable

5

BUSH

341-22184-00-00

Unavailable

5

COLLAR

90387-16226-00

Unavailable

6

COVER,THRUST 1

1A0-22128-00-00

Unavailable

6

COVER, THRUST 1

341-22128-01-00

Unavailable

7

SHIM,REAR ARM

240-22127-00-00

$6.99

8

WASHER, LOCK

90215-14055-00

Unavailable

9

NUT(6TC)

95337-14600-00

$11.49

10

NIPPLE, GREASE

93700-06M03-00

Unavailable

11

SHK/ABS ASSEMBLY, REAR

(256-22210-01-52)

Unavailable

11

SHK/ABS ASSEMBLY, REAR

(256-22210-01-64)

Unavailable

12

BOLT REAR CUSHION

(306-92282-90-00)

Unavailable

12

BOLT ROUND 214222410000

90106-10025-00

Unavailable

13

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

14

CASE, CHAIN

256-22311-00-93

Unavailable

15

DAMPER, CHAIN CASE

(256-22332-00-00)

Unavailable

16

GROMMET (1E5)

90480-13163-00

Unavailable

17

COLLAR(8R4)

90387-062N2-00

Unavailable

18

WASHER, SPEC''L SHAP (256-21515-00)

90209-06026-00

Unavailable

19

BOLT(3DM)

97024-06020-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

22

WASHER, LOCK

(90215-07034-00)

Unavailable
