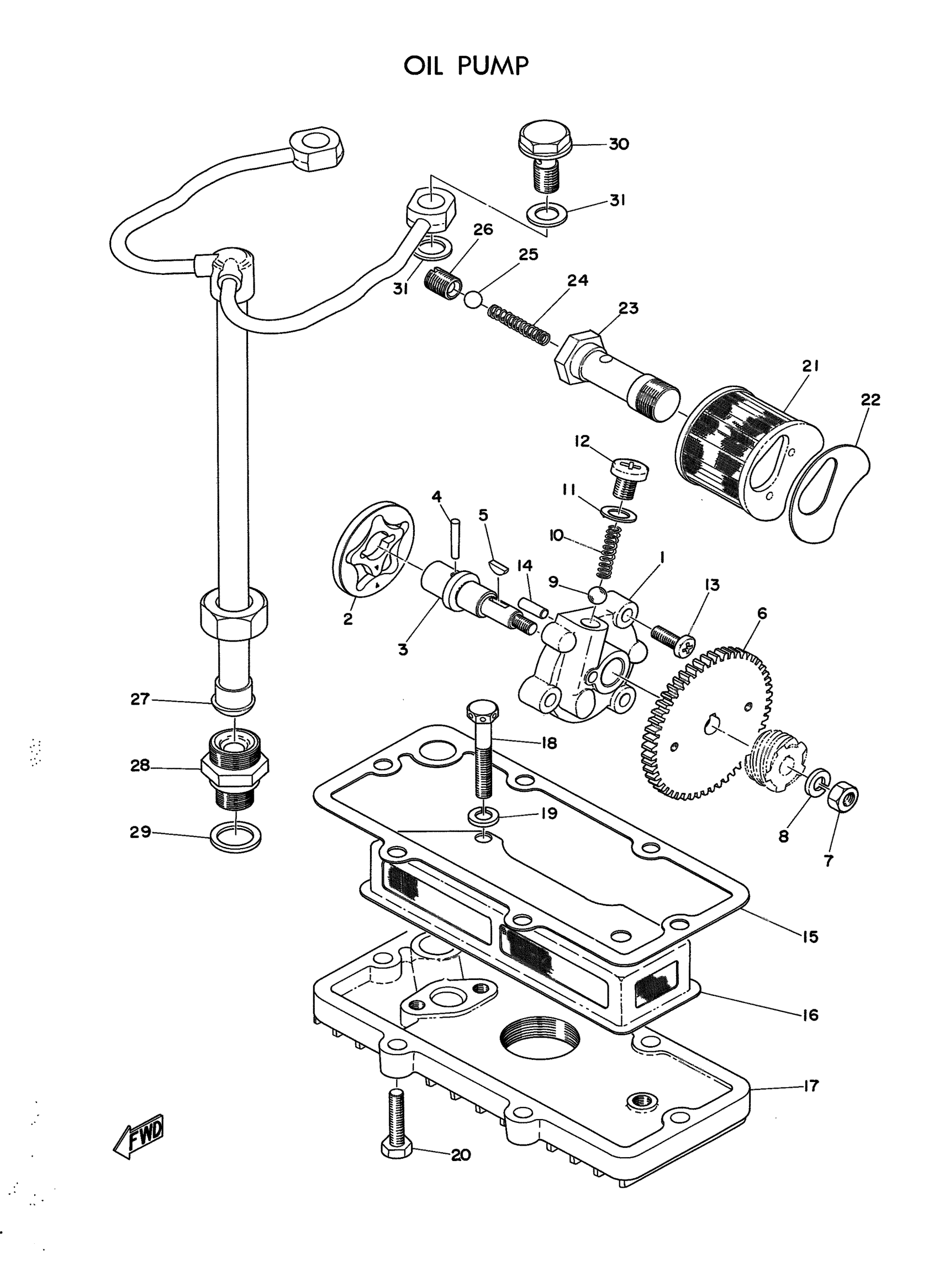

Yamaha XS1 (XS1_XS1) 1970 OIL PUMP Diagram

#

Description
Price

1

COVER, PUMP

256-00001-01-00

Unavailable

1

COVER, PUMP

256-00001-01-00

Unavailable

1

. COVER, PUMP

256-13316-02-00

Unavailable

2

ROTOR ASSEMBLY 1

(256-13310-01-00)

Unavailable

2

. ROTOR ASSEMBLY 1

256-13310-02-00

Unavailable

3

. SHAFT, PUMP

(256-13314-01-00)

Unavailable

4

PIN,DOWEL

93603-17070-00

$4.14

5

KEY, WOODRUFF

90280-03023-00

Unavailable

6

GEAR, PUMP DRIVEN

256-13325-00-00

Unavailable

7

NUT, HEXAGON

95380-06600-00

Unavailable

8

WASHER, SPRING

92995-06100-00

Unavailable

9

BALL

93501-04011-00

$8.49

10

SPRING, RELIEF

(256-13484-00-00)

Unavailable

11

GASKET

90430-08003-00

Unavailable

12

SCREW, PAN

98507-08010-00

$8.49

13

SCREW PAN HEAD

98580-06020-00

Unavailable

14

PIN,DOWEL (168)

93604-12037-00

Unavailable

15

GASKET, STRAINER COVER

256-13414-11-00

Unavailable

16

STRAINER, OIL

256-13411-01-00

Unavailable

17

COVER, STRAINER

256-13417-00-00

Unavailable

18

BOLT, FLAT HD.DRILL

(95201-06040-00)

Unavailable

18

BOLT (682)

97095-06040-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

BOLT, HEXAGON

97017-06025-00

Unavailable

21

ELEMENT, OIL CLNR

256-13441-00-00

Unavailable

22

GASKET, ELEMENT

256-13445-10-00

Unavailable

23

SCREW

256-13495-00-00

Unavailable

24

SPRING, COMPRESSION

90501-07031-00

Unavailable

25

BALL

93501-04011-00

$8.49

26

SCREW, SPEC''L SHAPE

90149-10019-00

Unavailable

27

PIPE, DELIVERY 1

256-13161-01-00

Unavailable

28

BOLT, BANJO

(256-13165-00-00)

Unavailable

28

BOLT, BANJO

256-13165-02-00

Unavailable

29

GASKET 256131670000

90430-14043-00

Unavailable

30

BOLT, UNION (16G)

90401-10084-00

Unavailable

31

GASKET (5R6)

90430-10171-00

Unavailable
