Description

Price

1

GASKET, JOINT

256-13556-11-00

$23.99

2

JOINT, CARBURETOR

256-13565-00-00

Unavailable

3

COVER,JOINT

256-13564-00-00

Unavailable

4

BOLT,SOCKET

91317-06020-00

Unavailable

5

HOSE CLAMP ASSY

90450-58002-00

$16.99

6

CASE, AIR CLEANER 1

(256-14411-00-00)

Unavailable

7

CASE, AIR CLEANER 2

(256-14421-00-00)

Unavailable

8

ELEMENT, AIR CLNR

256-14451-00-00

Unavailable

9

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

10

WASHER, SPRING

92995-06100-00

Unavailable

11

WASHER, PLATE (371)

90201-06431-00

$5.60

12

HOSE CLAMP ASSY

90450-62006-00

$12.49

13

JOINT, AIR CLNR 1

341-14453-00-00

Unavailable

14

SPRING, TENSION (256-14487-00)

90506-06006-00

Unavailable

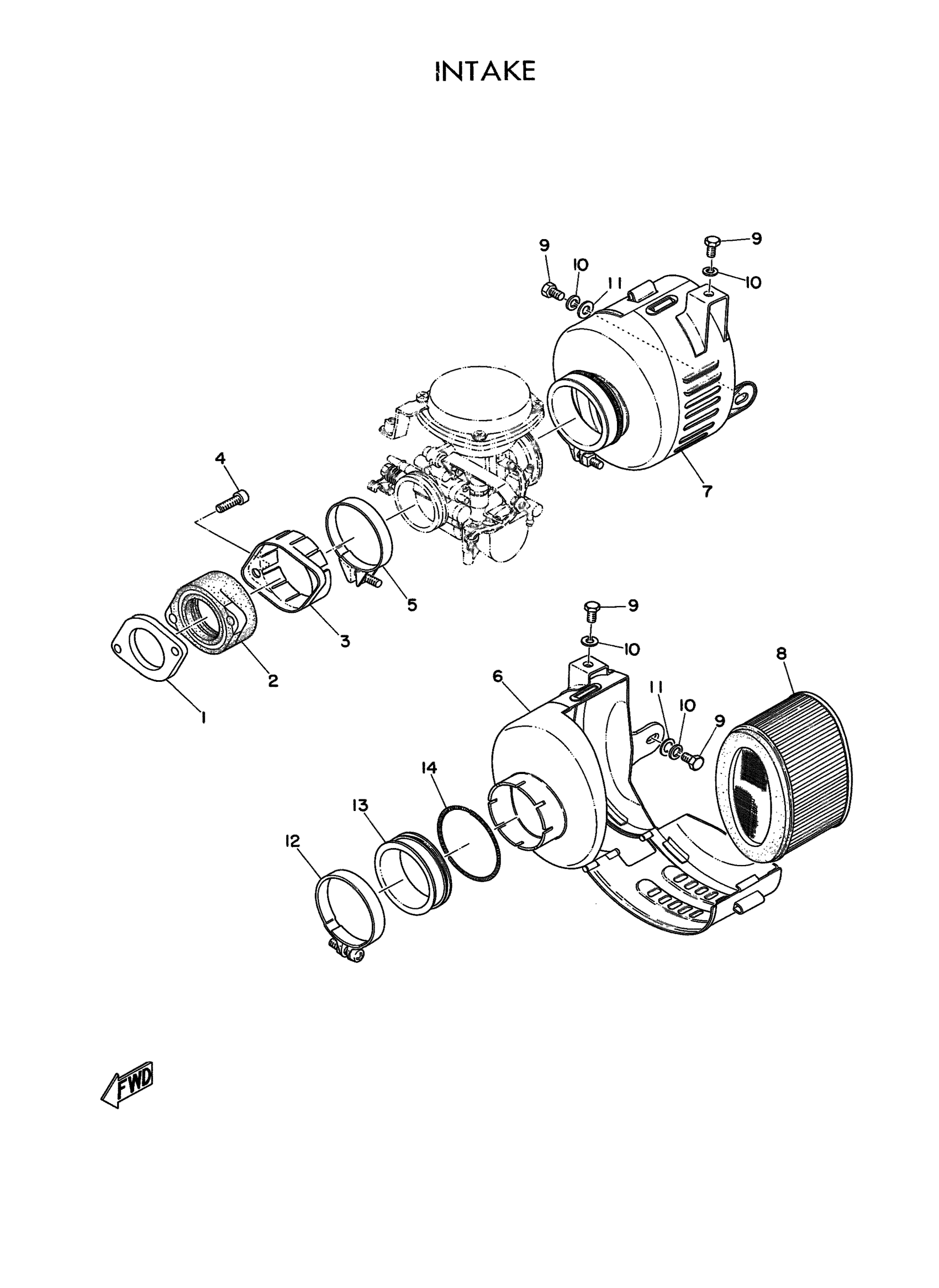

Yamaha XS1 (XS1_XS1) 1970 INTAKE Diagram

GASKET, JOINT

JOINT, CARBURETOR

COVER,JOINT

BOLT,SOCKET

HOSE CLAMP ASSY

CASE, AIR CLEANER 1

CASE, AIR CLEANER 2

ELEMENT, AIR CLNR

BOLT, HEXAGON DEEP RECESS

WASHER, SPRING

WASHER, PLATE (371)

HOSE CLAMP ASSY

JOINT, AIR CLNR 1

SPRING, TENSION (256-14487-00)
