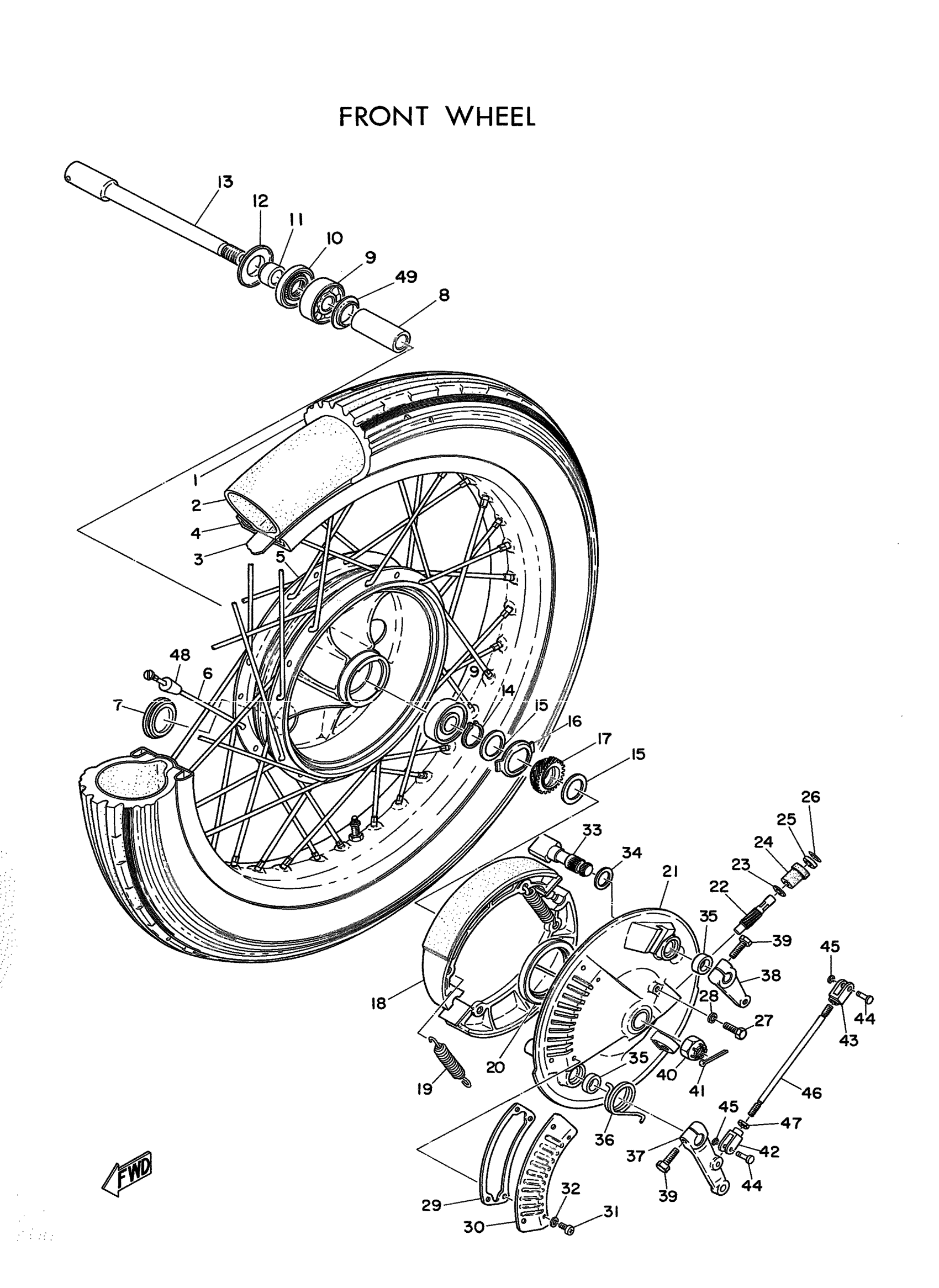

Yamaha XS1 (XS1_XS1) 1970 FRONT WHEEL Diagram

#

Description
Price

1

350H19BS S21F 4PLY

(94135-19345-00)

Unavailable

2

TUBE

(94232-19064-00)

Unavailable

3

BAND, RIM

94327-19111-00

$14.99

4

RIM 1.85X19

(94418-19048-00)

Unavailable

5

HUB, FRONT

(256-25111-00-00)

Unavailable

6

SPOKE SET, FRONT

(256-25104-00-00)

Unavailable

7

PLUG, SPEC''L SHAPE (256-25139-00)

90338-34053-00

Unavailable

8

SPACER, BEARING

(152-25117-00-00)

Unavailable

9

BEARING(4HM)

93306-30317-00

$39.99

10

OIL SEAL (25X47X7-801)

93102-25044-00

$14.99

11

COLLAR

(90387-17430-00)

Unavailable

12

NO LONGER AVAILABLE

256-25118-00-00

Unavailable

13

AXLE, WHEEL

(256-25181-00-00)

Unavailable

14

CIRCLIP(JF7)

99009-25400-00

$8.49

15

WASHER PLATE 152172260000

90201-25490-00

$10.49

16

CLUTCH, METER

(256-25149-00-00)

Unavailable

17

GEAR, DRIVE

(256-25135-00-00)

Unavailable

18

BRAKE SHOE KIT

3HT-W253A-00-00

Unavailable

19

SPRING, TENSION 2462533300

90507-20002-00

Unavailable

20

OIL SEAL, SD-TYPE

(93102-60066-00)

Unavailable

21

PLATE, BRAKE SHOE

(256-25121-00-00)

Unavailable

22

GEAR, METER

214-25138-00-00

Unavailable

23

WASHER, PLATE 1832514600

90201-07076-00

Unavailable

24

BUSHING

109-25136-00-00

Unavailable

25

OIL SEAL (7X14X4-136)

93104-07003-00

Unavailable

26

O-RING (26H)

93210-14579-00

Unavailable

27

BOLT, HEXAGON

97017-06020-00

Unavailable

28

WASHER, SPRING

92995-06100-00

Unavailable

29

SEAL, PLATE DUST

(256-25129-00-00)

Unavailable

30

COVER, PLATE

(256-25127-00-00)

Unavailable

31

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

32

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

33

CAMSHAFT

(4R5-25151-00-00)

Unavailable

34

SHIM, CAM SHAFT

148-25353-00-00

Unavailable

35

SEAL, CAM SHAFT

148-25359-00-00

Unavailable

36

SPRING, TORSION

(90508-26038-00)

Unavailable

37

LEVER, CAMSHAFT 1

(256-25155-00-00)

Unavailable

38

LEVER, CAMSHAFT 2

(256-25156-00-00)

Unavailable

39

BOLT(3DM)

97024-06020-00

Unavailable

40

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

41

PIN, COTTER

91490-30030-00

Unavailable

42

END, ROD 1

152-25163-00-00

Unavailable

43

END, ROD 2

152-25164-00-00

Unavailable

44

PIN, SPEC'L SHAPE

90249-06095-00

Unavailable

45

CIRCLIP (EU0)

99080-04600-00

Unavailable

46

ROD, CONNECTING

(256-25161-00-00)

Unavailable

47

NUT(650)

95380-06700-00

Unavailable

48

BALANCER, WHEEL

3HT-25398-00-00

Unavailable

49

FLANGE, SPACER

146-25315-00-00

Unavailable
