FRONT FORK (XS1B)

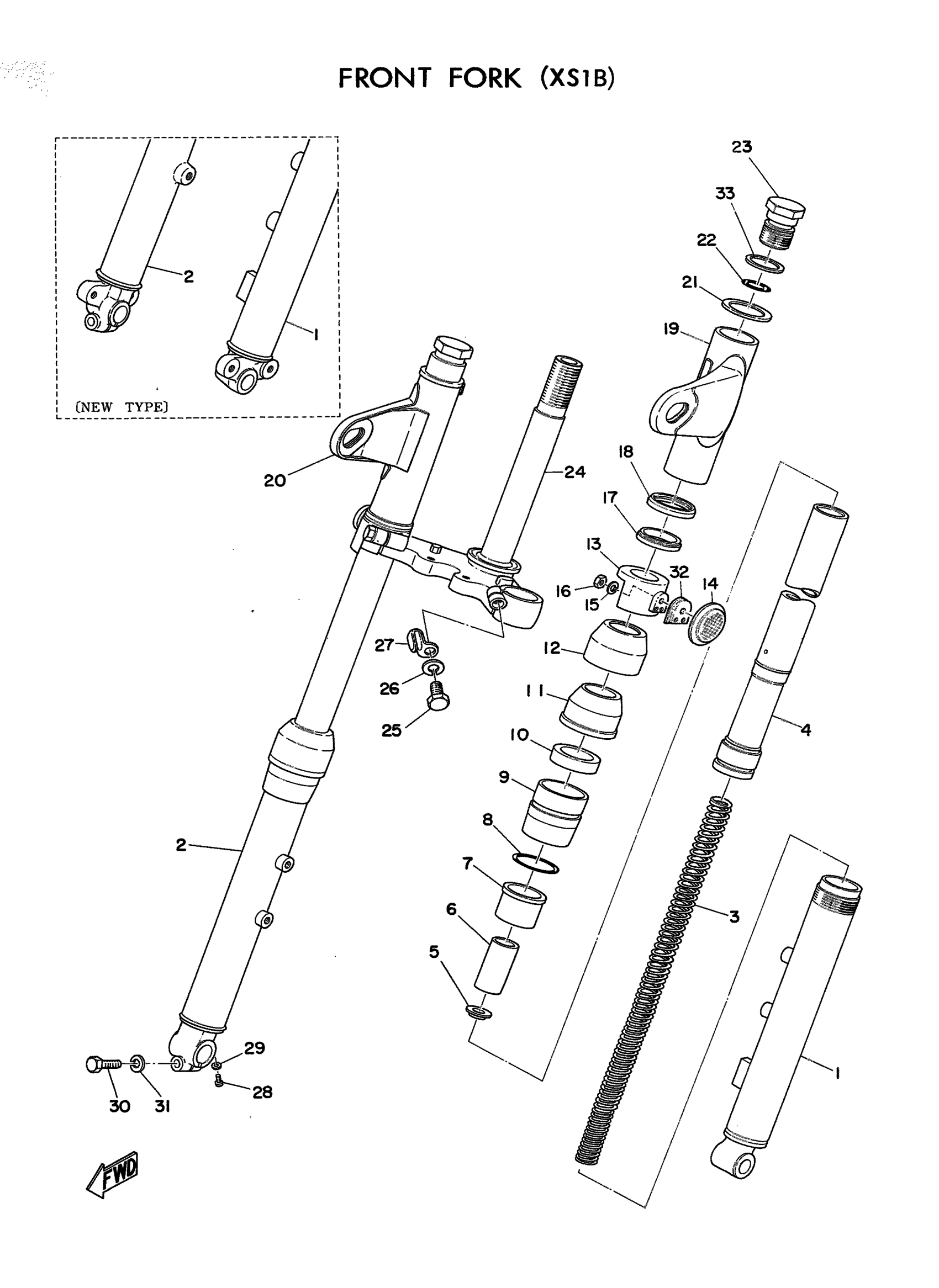

Yamaha XS1 (XS1_XS1) 1970 FRONT FORK (XS1B) Diagram
#
1
FRONT FORK ASSEMBLY
(256-23100-63-52)
Unavailable
1
TUBE, OUTER 1
(256-23126-62-93)
Unavailable
2
TUBE, OUTER 2
(256-23136-62-93)
Unavailable
3
SPRING, FRONT FORK
(256-23141-62-00)
Unavailable
4
TUBE, INNER 1
(256-23124-60-00)
Unavailable
5
. SEAT, SPRING UPPER
256-23142-60-00
Unavailable
6
SPACER
(256-23118-60-00)
Unavailable
7
METAL, SLIDE 1
(168-23125-01-00)
Unavailable
8
. O-RING
156-23147-00-00
Unavailable
9
OUTER NUT
(256-23150-60-00)
Unavailable
11
SEAL,DUST
278-23144-50-00
Unavailable
12
. COVER, DUST SEAL
278-23148-50-00
Unavailable
13
COVER, OUTER 1
(275-23122-60-00)
Unavailable
14
. REFLECTOR, FRONT 1
341-85111-00-00
Unavailable
15
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
16
NUT, HEXAGON (663)
95380-05600-00
Unavailable
17
. GASKET
256-23163-60-00
Unavailable
18
GUIDE, COVER LOWER
(256-23116-61-00)
Unavailable
19
COVER, UPPER 1
(256-23121-61-52)
Unavailable
20
COVER, UPPER 2
(256-23131-61-52)
Unavailable
21
. GUIDE, COVER UPPER
168-23115-00-00
Unavailable
22
. GASKET
214-23114-00-00
Unavailable
23
BOLT, CAP
(256-23111-60-00)
Unavailable
24
UNDER BRACKET
(306-23340-09-33)
Unavailable
25
BOLT 1
122-23346-02-00
Unavailable
26
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
27
HOLDER, CABLE 1
(256-23318-60-00)
Unavailable
28
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
29
GASKET, DRAIN PLUG
122-23129-00-00
Unavailable
30
BOLT, HEXAGON
97013-08030-00
Unavailable
31
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
32
COVER, RFLCTR STAY
(256-23162-60-00)
Unavailable
33
WASHER, CAP
(256-23112-61-00)
Unavailable
