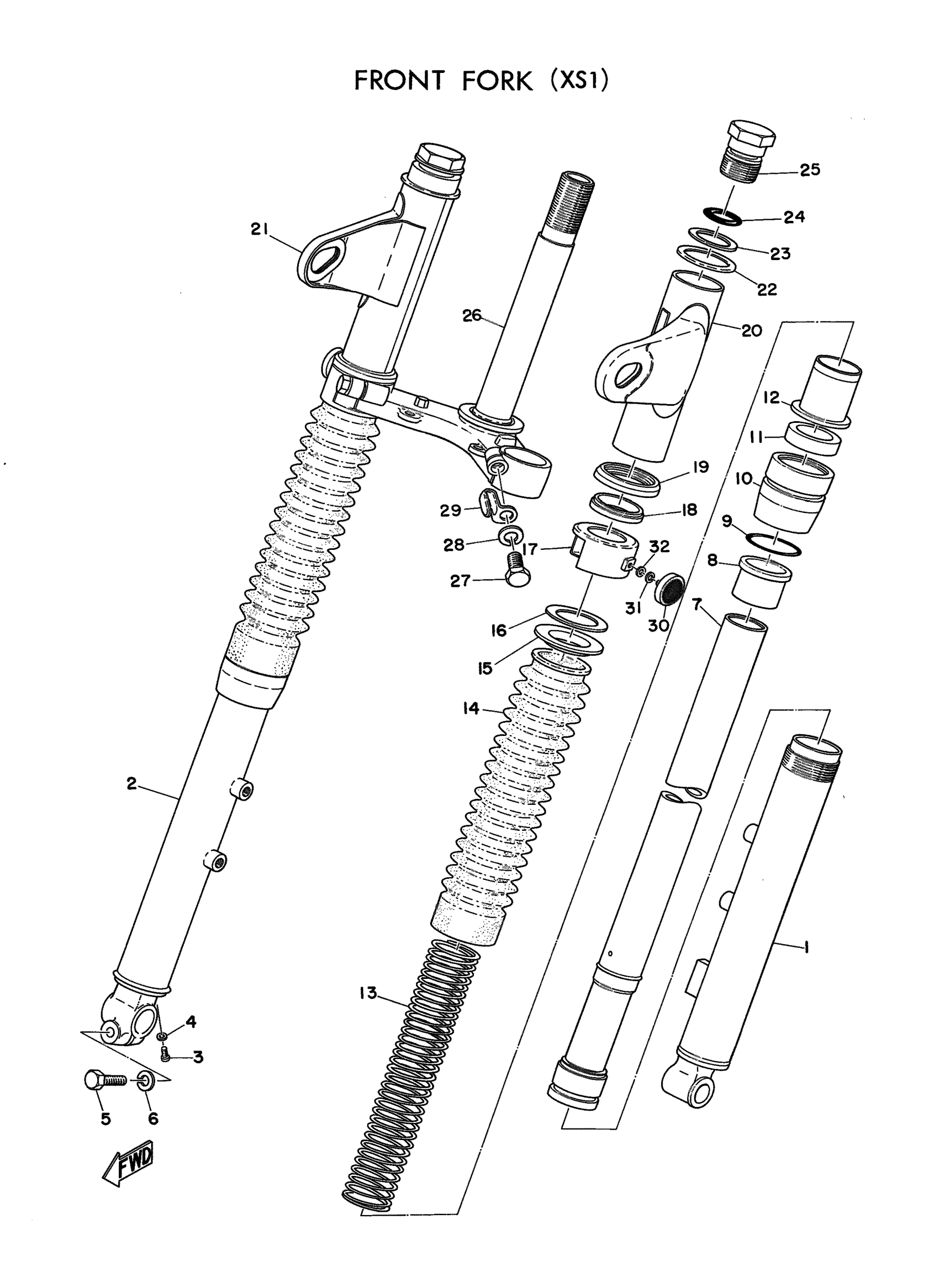

Yamaha XS1 (XS1_XS1) 1970 FRONT FORK (XS1) Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(256-23100-61-64)

Unavailable

1

TUBE, OUTER 1

(256-23126-62-93)

Unavailable

2

TUBE, OUTER 2

(256-23136-62-93)

Unavailable

3

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

4

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

5

BOLT, HEXAGON

97013-08030-00

$2.49

6

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

7

TUBE, INNER 1

(256-23124-60-00)

Unavailable

8

METAL, SLIDE 1

(168-23125-01-00)

Unavailable

9

. O-RING

156-23147-00-00

Unavailable

10

OUTER NUT

(211-23150-40-00)

Unavailable

11

OIL SEAL

584-23145-50-00

$62.99

12

SEAT, SPRING LOWER

(168-23143-00-00)

Unavailable

13

SPRING, FRONT FORK

(256-23141-60-00)

Unavailable

14

. BOOT, FRONT FORK

211-23191-40-00

Unavailable

15

SEAT, SPRING UPPER

(211-23142-40-00)

Unavailable

16

WASHER, OIL SEAL

(168-23146-00-00)

Unavailable

17

COVER, OUTER 1

(256-23122-60-00)

Unavailable

18

. GASKET

256-23163-60-00

Unavailable

19

GUIDE, COVER LOWER

(256-23116-60-00)

Unavailable

20

COVER, UPPER 1

(256-23121-60-64)

Unavailable

21

COVER, UPPER 2

(256-23131-60-64)

Unavailable

22

. GUIDE, COVER UPPER

168-23115-00-00

Unavailable

23

WASHER, CAP

(256-23112-61-00)

Unavailable

24

. GASKET

214-23114-00-00

Unavailable

25

BOLT, CAP

(256-23111-60-00)

Unavailable

26

UNDER BRACKET

(306-23340-09-33)

Unavailable

27

BOLT 1

122-23346-02-00

Unavailable

28

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

29

HOLDER, CABLE 1

(256-23318-60-00)

Unavailable

30

. REFLECTOR, FRONT 1

341-85111-00-00

Unavailable

31

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

32

. WASHER, PLAIN

92990-05200-00

Unavailable
