1970 Yamaha XS1_XS1 (XS1) Frame - Engine Bracket Diagram

← All diagrams

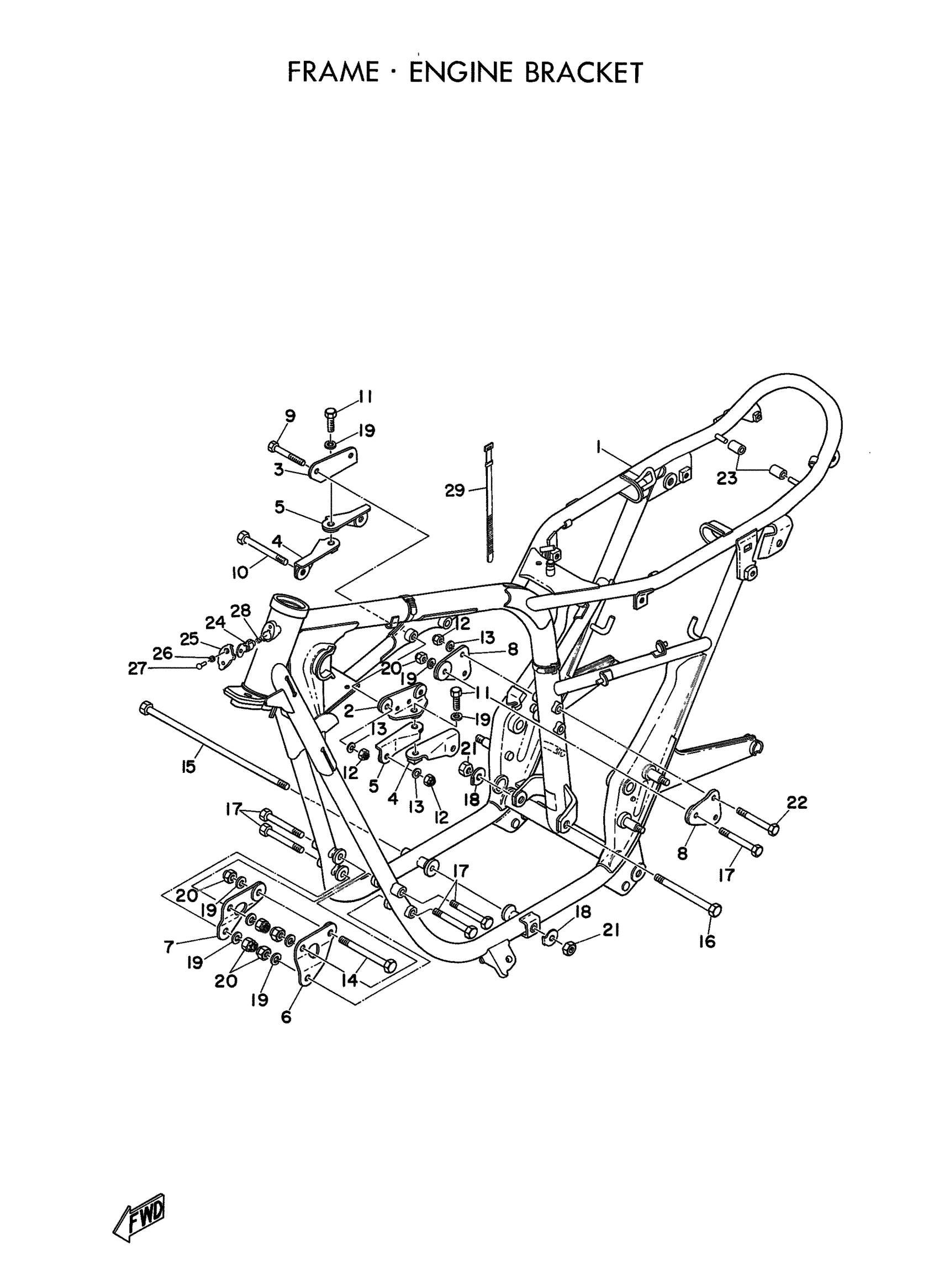

Find the part on the Frame - Engine Bracket diagram for your 1970 Yamaha XS1_XS1 (XS1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha XS1_XS1 (XS1) Frame - Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(256-21110-03-33)

1
Out of stock

2

STAY, ENGINE 1

(256-21314-00-00)

1
Out of stock

3

STAY, ENGINE 2

(256-21315-00-00)

1
Out of stock

4

STAY, ENGINE 3

256-21316-01-00

1
Out of stock

5

STAY, ENGINE 4

256-21317-01-00

1
Out of stock

6

STAY, ENGINE 5

(256-21318-00-00)

1
Out of stock

6

STAY, ENGINE 5 000

(256-21318-01-00)

1
Out of stock

7

STAY, ENGINE 6

(256-21319-00-00)

1
Out of stock

7

STAY, ENGINE 6 000

(256-21319-01-00)

1
Out of stock

8

STAY, ENGINE 7

(256-21387-00-00)

1
Out of stock

9

BOLT (663)

97013-08060-00

1

$3.25

In stock

10

BOLT (97321-08090)

97023-08090-00

1
Out of stock

11

BOLT(6TD)

97017-10025-00

1

$6.82

In stock

12

NUT, U

95617-08100-00

1

$6.78

In stock

13

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

14

BOLT, WASHER BASED(1RU)

90105-10747-00

—
Out of stock

15

BOLT (256-21482-00)

90101-10078-00

1
Out of stock

16

BOLT

90101-10074-00

1
Out of stock

17

BOLT, FLANGE(7LU)

95817-10070-00

—

$5.11

In stock

18

WASHER, LOCK (256-21491-00)

90215-10006-00

1
Out of stock

19

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

20

NUT, SELF LOCKING

90185-10031-00

1
Out of stock

21

NUT(3BM)

95314-10600-00

—

$1.74

In stock

22

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

23

DAMPER 1

256-21638-00-00

1
Out of stock

24

STEERING LOCK ASSY

341-23408-01-00

1
Out of stock

25

CAP, HANDLE LOCK

(134-23484-10-00)

1
Out of stock

26

WASHER, WAVE

90206-04003-00

1
Out of stock

27

RIVET 214234830000

90269-04003-00

—

$6.88

In stock

28

SPRING, CONICAL

90502-08005-00

1
Out of stock

29

BAND, SWITCH CORD

25G-83936-01-00

—

$4.12

In stock

30

BRACKET, RFLCTR 1

(366-85112-01-00)

1
Out of stock

31

COVER, RFLCTR STAY

(256-23162-60-00)

1
Out of stock

32

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

33

REFLECTOR, FRONT 1

355-85111-01-00

—
Out of stock

34

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock
