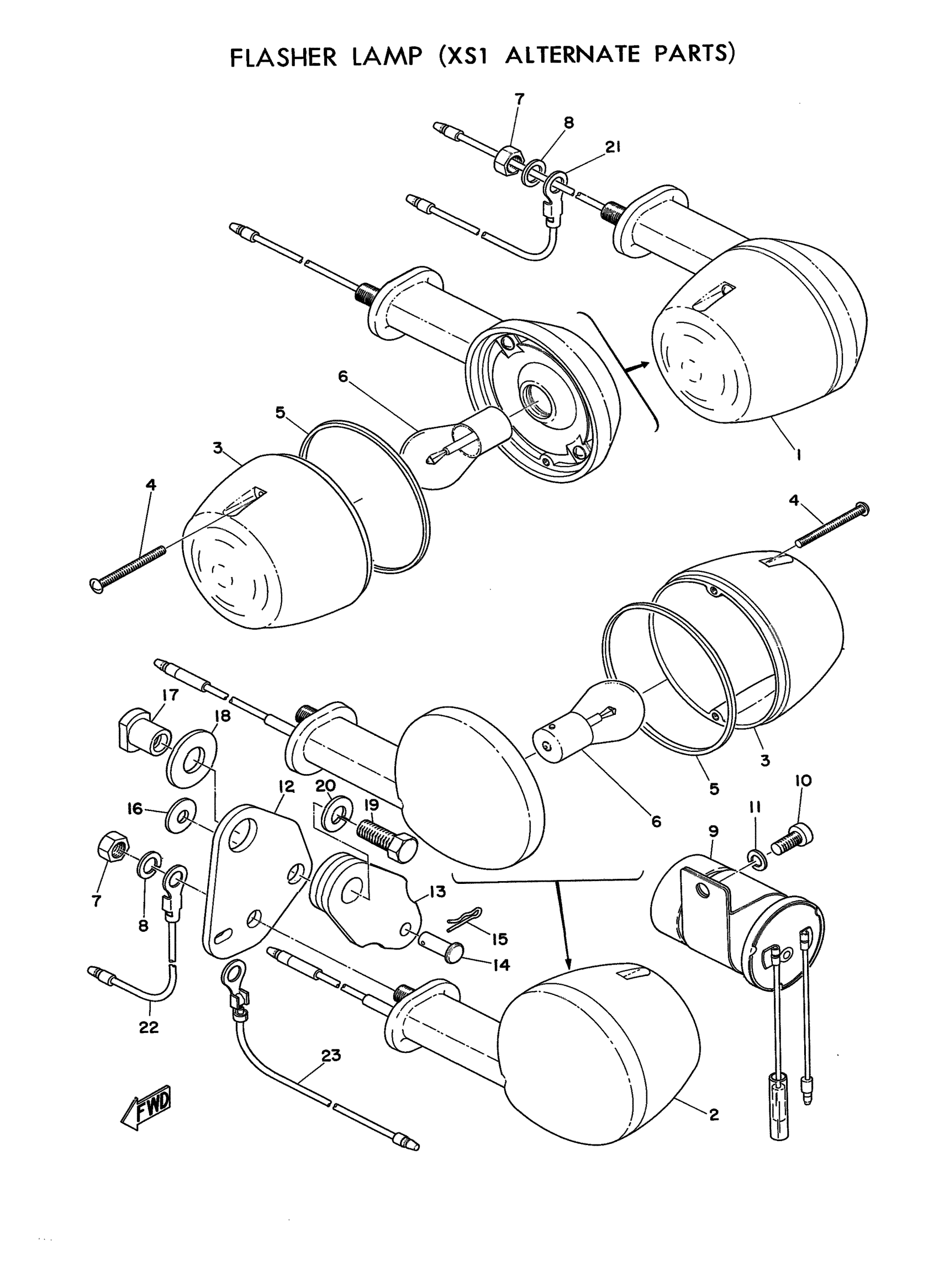

Yamaha XS1 (XS1_XS1) 1970 FLASHER LAMP (XS1 ALTERNATE PARTS) Diagram

#

Description

Price

1

FRT FLSHR LITE ASSEMBLY

306-83310-70-93

Unavailable

2

R FLSHR LITE ASSEMBLY

256-83330-75-93

Unavailable

2

R FLSHR LITE ASSEMBLY

(256-83340-75-93)

Unavailable

3

LENS, FLASHER

183-83312-70-00

Unavailable

3

. LENS, REAR RED FLASHER

211-83332-75-00

Unavailable

4

SCREW, LENS FITTING (3X32)

183-83333-71-00

$8.99

5

GASKET,FLASHER LANS

183-83313-70-00

Unavailable

6

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

7

NUT, HEXAGON

90170-08031-00

Unavailable

8

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

9

FLASHER RELAY ASSEMBLY

173-83350-70-00

Unavailable

10

SCREW PAN HEAD

98580-06010-00

$8.49

11

WASHER, SPRING

92995-06100-00

Unavailable

12

STAY, FLASHER 1

(256-83318-00-00)

Unavailable

13

DAMPER, FLASHER

(256-83341-00-00)

Unavailable

14

PIN, CLEVIS

(91503-06018-00)

Unavailable

15

CLIP (156-83525-00)

90468-10050-00

Unavailable

16

WASHER, PLATE

90201-06020-00

Unavailable

17

NUT, REAR FENDER

248-21635-00-00

Unavailable

18

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

19

BOLT(JA9)

90101-08691-00

Unavailable

20

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

21

WIRE, EARTH (GROUND)

256-84313-01-00

Unavailable

22

CORD

256-83336-01-00

Unavailable

23

CORD

(256-83346-00-00)

Unavailable
