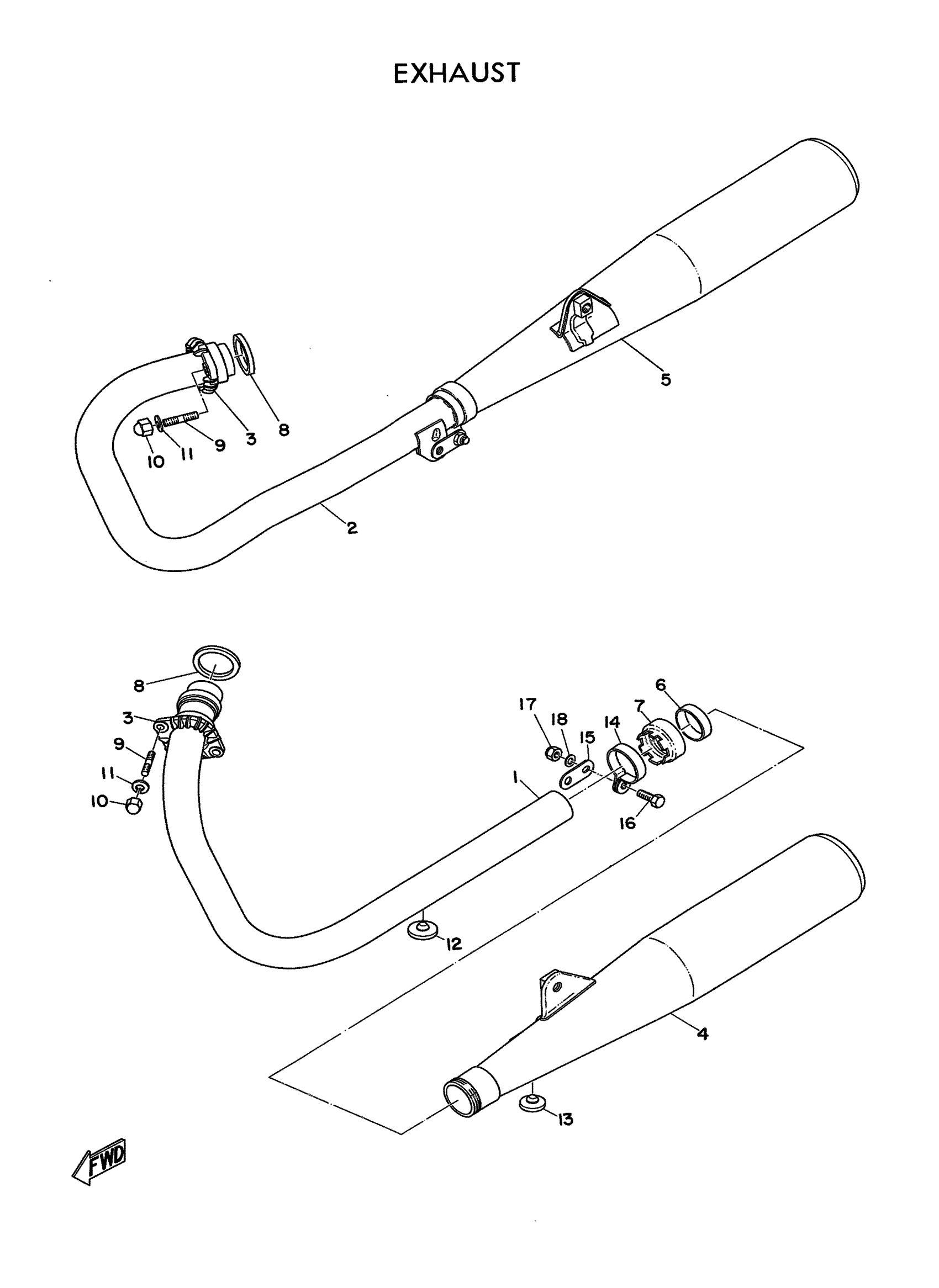

Yamaha XS1 (XS1_XS1) 1970 EXHAUST Diagram
#
Description
Price
1
PIPE, EXHAUST L
(256-14611-02-00)
Unavailable
2
PIPE, EXHAUST R
(256-14621-02-00)
Unavailable
4
MUFFLER L
(256-14711-04-00)
Unavailable
5
MUFFLER R
(256-14721-04-00)
Unavailable
6
GASKET, MUFFLER
256-14714-00-00
Unavailable
7
NUT, MUFFLER JOINT
(256-14713-01-00)
Unavailable
9
BOLT, STUD (17W)
90116-08408-00
Unavailable
9
BOLT, STUD
90116-10195-00
Unavailable
10
NUT, CROWN
90176-08019-00
Unavailable
10
NUT, CROWN (650)
95380-10800-00
Unavailable
12
STOPPER
(256-27314-00-00)
Unavailable
14
CLAMP, HOSE
(90460-44054-00)
Unavailable
15
STAY, MUFFLER 2
(256-14772-00-00)
Unavailable
16
BOLT, HEXAGON
97017-08025-00
Unavailable
17
NUT, U
95617-08100-00
Unavailable
