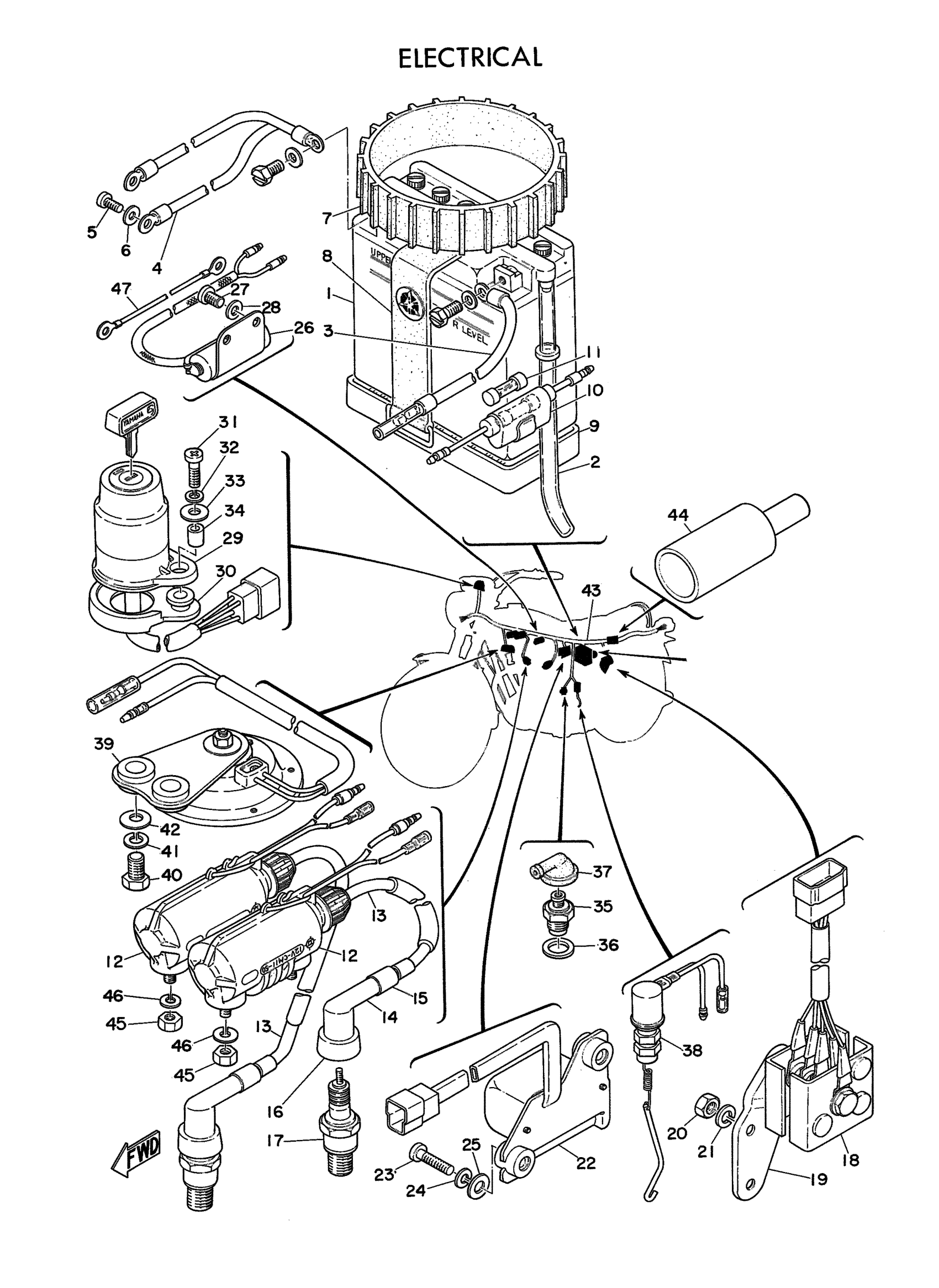

Yamaha XS1 (XS1_XS1) 1970 ELECTRICAL Diagram

#

Description
Price

1

12N5.5-3B GS BATTERY

12N-553BA-00-00

Unavailable

2

HOSE (L1500)

90445-084J0-00

$18.99

3

WIRE, PLUS LEAD

256-82115-00-00

Unavailable

4

WIRE, MINUS LEAD

256-82116-00-00

Unavailable

5

SCREW PAN HEAD

98580-06010-00

$8.49

6

WASHER, PLATE (371)

90201-06431-00

$5.60

7

BAND, BATTERY

(256-82124-00-00)

Unavailable

8

BAND, BATTERY

133-82131-00-00

$27.99

9

SEAT, BATTERY

(256-82122-00-00)

Unavailable

10

FUSE HOLDER ASSY

2UJ-82150-02-00

Unavailable

11

FUSE

1A0-82161-00-00

$7.99

12

IGNITION COIL ASSEMBLY

254-82310-60-00

Unavailable

13

CORD, HIGH TENSION 1

4X7-82341-00-00

$80.99

14

PLUG CAP ASSY

4BP-82370-01-00

$35.99

15

SEAL, H/TENS CORD

(256-82373-00-00)

Unavailable

16

SEAL, PLUG CAP

(256-82372-00-00)

Unavailable

17

BR8ES NGK SCREW TOP 4PK

BR8-ES000-00-00

Unavailable

18

RECTIFIER ASSEMBLY

256-81970-11-00

Unavailable

19

PLATE, RECTIFR FTNG

(256-81975-00-00)

Unavailable

20

. NUT

95380-08700-00

Unavailable

21

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

22

VOLTAGE REGULATOR ASSEMBLY

1L9-81910-50-00

Unavailable

23

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable

25

WASHER, PLATE

90201-06M08-00

Unavailable

27

SCREW PAN HEAD

98580-06010-00

$8.49

28

WASHER, SPRING

92995-06100-00

Unavailable

29

MAIN SWITCH ASSEMBLY (366-82508-30)

256-82508-31-00

Unavailable

30

DAMPER, MAIN SWITCH

(256-82515-00-00)

Unavailable

31

SCREW, PAN HEAD

98580-05020-00

Unavailable

32

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

33

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

34

COLLAR 451221260000

90387-05285-00

Unavailable

35

NEUTRAL SWITCH ASSY

136-82540-03-00

Unavailable

36

GASKET (3JD1)

90430-12207-00

Unavailable

37

CAP

168-82542-10-00

Unavailable

38

STOP SWITCH ASY

256-82530-09-00

Unavailable

39

HORN

366-83371-52-00

Unavailable

40

BOLT, HEXAGON

97017-08025-00

Unavailable

41

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

42

WASHER, PLATE (4W3)

90201-086A3-00

Unavailable

43

WIRE HARNESS ASSEMBLY

(256-82590-30-00)

Unavailable

44

COVER, CONNECTER

(214-82599-00-00)

Unavailable

45

NUT, HEXAGON

95380-06600-00

Unavailable

46

WASHER, SPRING

92995-06100-00

Unavailable

47

WIRE, LEAD

256-81615-00-00

Unavailable
