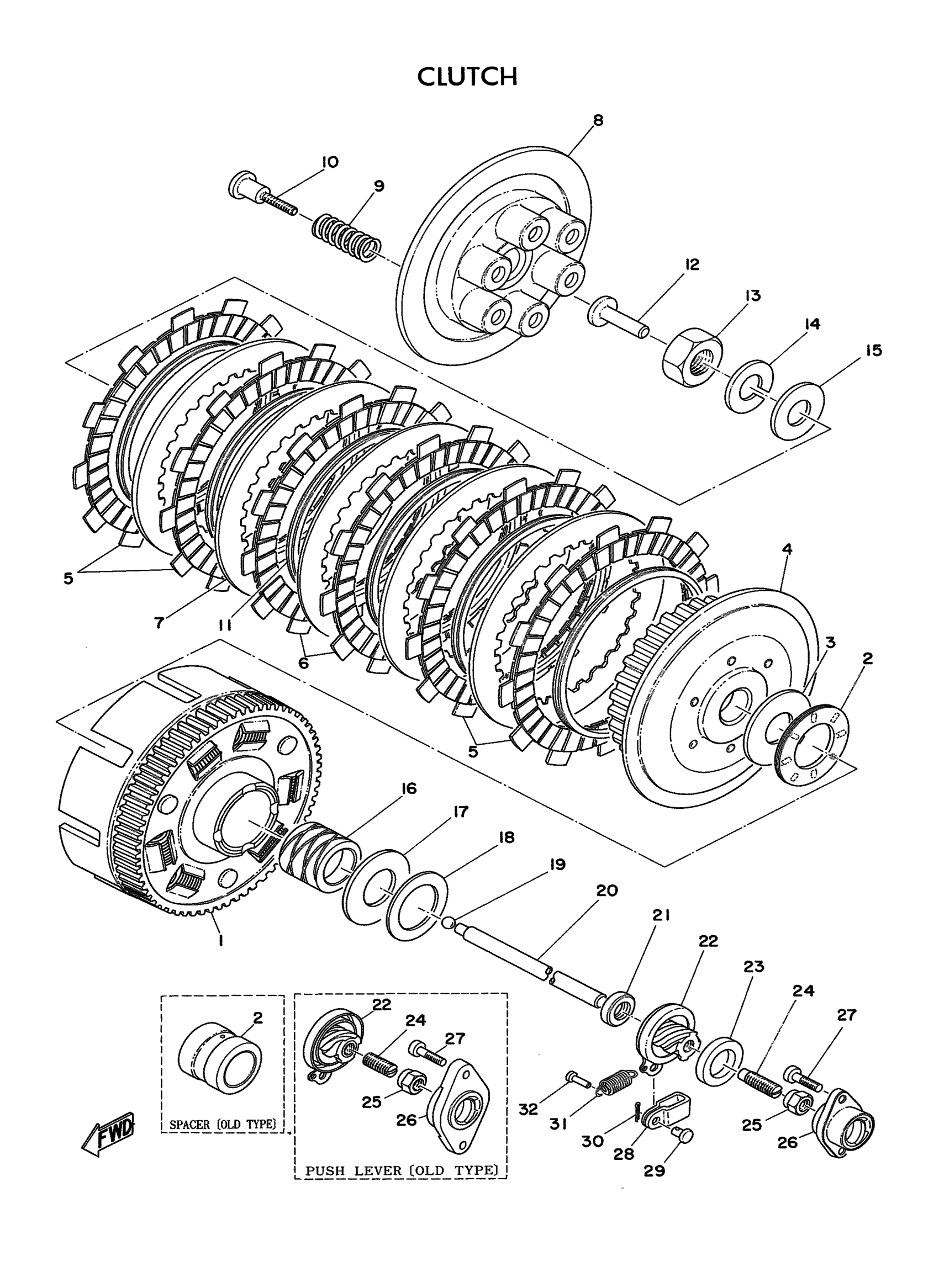

Yamaha XS1 (XS1_XS1) 1970 CLUTCH Diagram
#
1
PRI DRVN GEAR
(256-16150-02-00)
Unavailable
1
CLUTCH ASSEMBLY
(256-16301-60-00)
Unavailable
2
BEARING, FLAT #41
93341-23504-00
Unavailable
4
. BOSS, CLUTCH
(256-16371-09-00)
Unavailable
7
.. PLATE, CLUTCH 2
256-16325-00-00
Unavailable
8
. PLATE, PRESSURE 1
(256-16351-00-00)
Unavailable
10
SCREW (584)
90149-06102-00
Unavailable
11
. RING, CUSHION
256-16367-00-00
Unavailable
12
ROD, PUSH 1
256-16356-00-00
Unavailable
13
NUT
90170-18089-00
Unavailable
14
WASHER(N15)
92907-18100-00
Unavailable
15
WASHER (6E5)
92990-18200-00
Unavailable
16
SPACER
90560-25131-00
Unavailable
18
WASHER, PLATE(1FK)
90201-256K6-00
Unavailable
19
BALL
93505-16006-00
Unavailable
20
ROD, PUSH 2
256-16357-00-00
Unavailable
21
OIL SEAL (3G1)
93102-08206-00
Unavailable
21
OIL SEAL (3G1)
93102-08206-00
Unavailable
22
PUSH LEVER ASSEMBLY
1T3-16340-00-00
Unavailable
22
PUSH LEVER ASSEMBLY
(256-16340-09-00)
Unavailable
23
SEAL, DUST
214-16347-01-00
Unavailable
24
BOLT, SET (214-16343-00)
90113-08017-00
Unavailable
24
BOLT SET 256163430100
90113-08021-00
Unavailable
25
NUT
90179-08179-00
Unavailable
26
HOUSING, PUSH SCREW
256-16396-00-00
Unavailable
26
HOUSING, PUSH SCREW
371-16396-00-00
Unavailable
27
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
27
SCREW, PAN HEAD(6E5)
97880-06018-00
Unavailable
28
JOINT
214-16389-00-00
Unavailable
29
PIN W/HOLE 214163790000
90240-06005-00
Unavailable
30
. PIN, COTTER
91401-10015-00
Unavailable
31
SPRING, TENSION
90506-10020-00
Unavailable
31
SPRING, TENSION
90506-10023-00
Unavailable
32
HOOK, SPRING
132-16346-00-00
Unavailable
