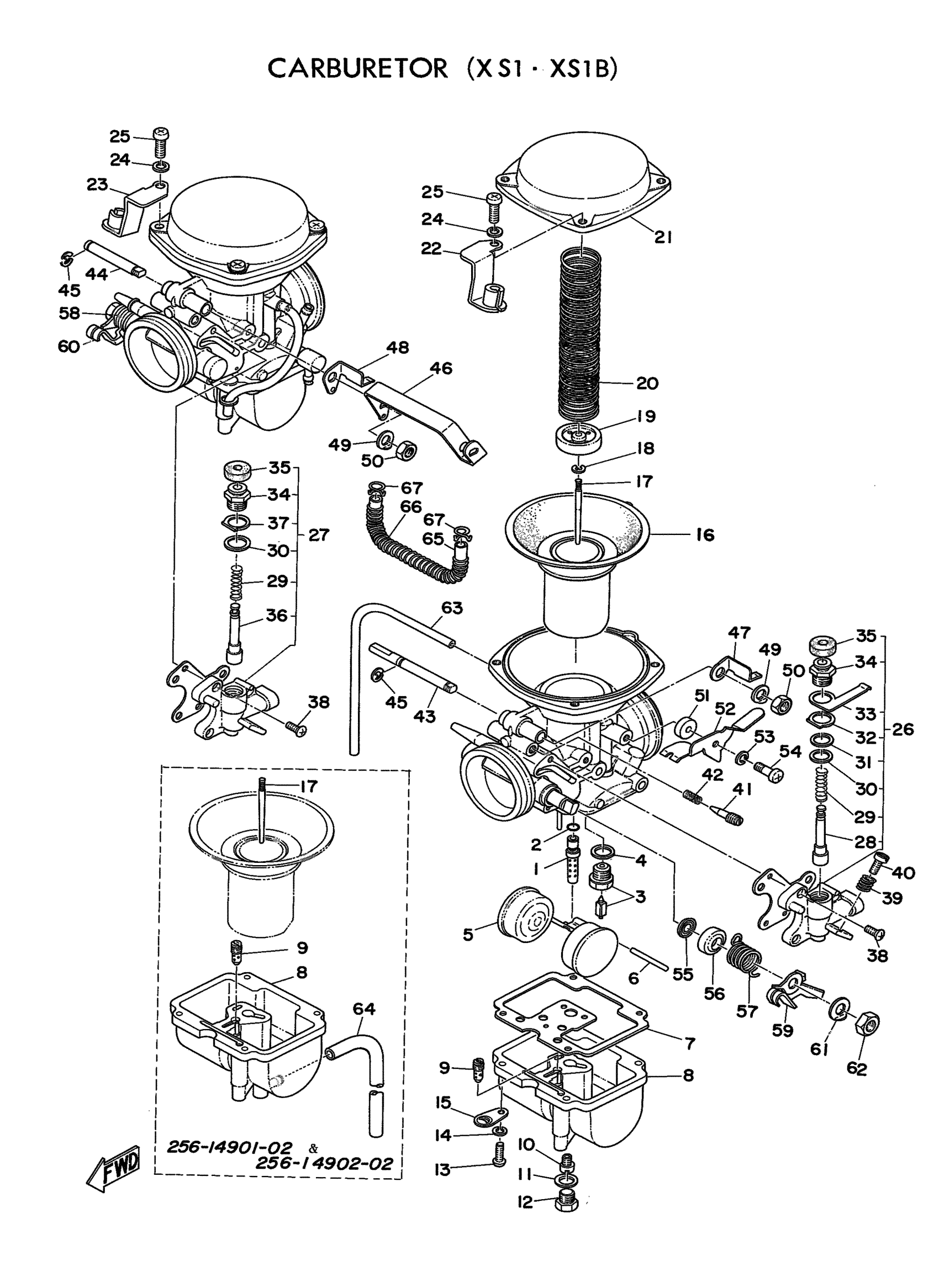

Yamaha XS1 (XS1_XS1) 1970 CARBURETOR (XS1 - XS1B) Diagram

#

Description
Price

1

Z-6

(256-14941-86-00)

Unavailable

1

CARBURETOR ASSEMBLY 1

(306-14901-03-00)

Unavailable

2

CARBURETOR ASSEMBLY 2

306-14902-03-00

Unavailable

2

O-RING (256)

93210-03142-00

$12.49

3

VALVE SEAT ASSY

168-14190-15-00

$42.99

3

NEEDLE VALVE SET

23L-14107-25-00

$42.99

4

. WASHER

256-14955-00-00

Unavailable

5

FLOAT

256-14985-00-00

$93.99

6

PIN, FLOAT

127-14186-00-00

$6.65

7

GASKET, FLOAT CHAMBER

256-14984-01-00

$44.99

8

BODY, FLOAT CHAMBER

(256-14981-00-00)

Unavailable

8

BODY, FLOAT CHAMBER 002

(256-14981-01-00)

Unavailable

9

. JET, PILOT (NO 45)

256-14942-45-00

Unavailable

9

JET, PILOT (# 42.5)

4G0-14142-42-A0

$14.49

10

JET, MAIN (#130)

3G2-14231-26-A0

$10.99

10

JET,MAIN(#120)

3G2-14231-24-00

Unavailable

10

JET, MAIN (#140)

3G2-14231-28-00

Unavailable

10

JET, MAIN (#150)

3G2-14231-30-A0

Unavailable

11

WASHER

256-14956-01-00

Unavailable

12

.. SCREW, PLUG

256-14991-00-00

Unavailable

13

SCREW, PAN HEAD

98511-04012-00

Unavailable

14

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

15

PLATE

500-14146-00-00

Unavailable

16

.. DIAPHRAGM ASSY (256-14940-01-00)

256-14940-00-00

Unavailable

17

. NEEDLE (4JN19-4)

256-14916-19-00

Unavailable

18

CLIP

256-14919-00-00

Unavailable

19

.. PLATE, NEEDLE FITTING

256-14946-00-00

Unavailable

20

. SPRING, DIAPHRAGM

256-14933-00-00

Unavailable

21

COVER, DIAPHRAGM

(256-14958-00-00)

Unavailable

22

BRACKET, THROTTLE 1

(447-14926-00-00)

Unavailable

23

BRACKET, THROTTLE 2

(341-14927-00-00)

Unavailable

24

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

25

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

26

BODY, STARTER 1

(256-14971-00-00)

Unavailable

27

BODY, STARTER 2

(256-14972-00-00)

Unavailable

28

PLUNGER, STARTER

(256-14993-00-00)

Unavailable

29

. SPRING, PLUNGER

256-14135-00-00

Unavailable

30

WASHER

256-14954-00-00

Unavailable

31

BRACKET

(256-14995-00-00)

Unavailable

32

WASHER

(256-14957-00-00)

Unavailable

33

SPRING

(256-14938-00-00)

Unavailable

34

. CAP, PLUNGER

802-14174-00-00

Unavailable

35

. COVER, PLUNGER CAP

802-14173-00-00

Unavailable

36

.. PLUNGER, STARTER

603-14171-00-00

Unavailable

37

WASHER

(256-14962-00-00)

Unavailable

38

SCREW, FLAT HEAD (716)

98780-05010-00

Unavailable

39

.. SPRING, THROTTLE STOP

256-14934-01-00

Unavailable

40

.. SCREW, THROTTLE STOP

256-14922-01-00

Unavailable

41

SCREW, PILOT

(256-14923-00-00)

Unavailable

42

SPRING, AIR ADJUSTING

127-14134-00-00

Unavailable

43

. GASKET, STARTER

256-14979-00-00

Unavailable

44

SHAFT, STARTER LVR

(256-14978-00-00)

Unavailable

45

. CLIP

256-14937-00-00

Unavailable

46

LEVER, CONNECT

(256-14974-00-00)

Unavailable

47

LEVER, STARTER 1

(256-14975-00-00)

Unavailable

48

LEVER, STARTER 2

(256-14976-00-00)

Unavailable

49

WASHER

(256-14973-00-00)

Unavailable

50

NUT (682)

95380-10700-00

Unavailable

51

.. RING

256-14918-00-00

Unavailable

52

LEVER, STARTER

(256-14905-00-00)

Unavailable

53

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

54

SCREW, PAN HEAD

98511-04012-00

Unavailable

55

.. SEAL

256-14997-00-00

Unavailable

56

CAP

(256-14969-00-00)

Unavailable

57

SPRING, THRTL LEVER

(256-14931-00-00)

Unavailable

58

SPRING, THRTL 2

(256-14932-00-00)

Unavailable

59

LEVER, THROTTLE

(256-14914-00-00)

Unavailable

60

LEVER, THROTTLE

(256-14915-00-00)

Unavailable

61

.. WASHER

256-14953-00-00

Unavailable

62

NUT(3DM)

95304-12600-00

Unavailable

63

PIPE, AIR VENT

183-14197-01-00

Unavailable

63

PIPE, AIRVENT

(256-14197-01-00)

Unavailable

64

HOSE

(256-14987-00-00)

Unavailable

65

HOSE (L420)

90445-092K1-00

Unavailable

66

SPRING, COMPRESSION

(90501-06028-00)

Unavailable

67

CLIP 101235600

90467-08003-00

Unavailable
