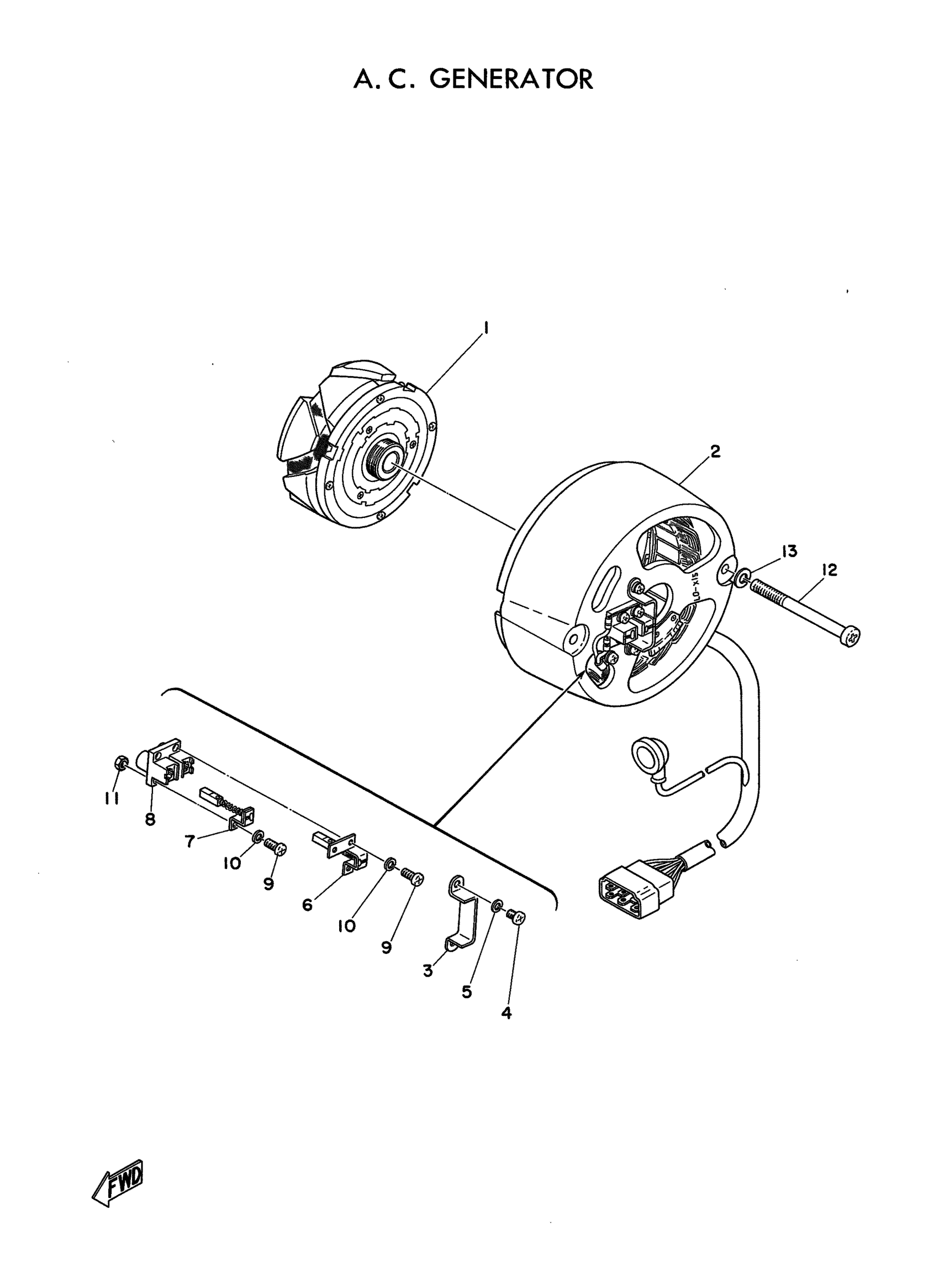

Yamaha XS1 (XS1_XS1) 1970 A - C - GENERATOR Diagram

#

Description
Price

1

NEUTRAL SWITCH ASSY

136-82540-03-00

$31.99

1

. ROTOR ASSEMBLY

256-81650-11-00

Unavailable

1

AC GENERATOR ASSEMBLY

306-81600-14-00

Unavailable

1

A C GEN ASSEMBLY

(99999-00904-00)

Unavailable

1

A C GEN ASSEMBLY

(99999-00904-00)

Unavailable

2

. STATOR ASSEMBLY

306-81610-12-00

Unavailable

3

PROTECTOR

(256-81614-10-00)

Unavailable

4

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

5

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

6

.. BRUSH 1

256-81611-11-00

Unavailable

7

.. BRUSH 2

256-81612-11-00

Unavailable

8

.. HOLDER, BRUSH

256-81613-10-00

Unavailable

9

SCREW, PAN HEAD

98511-04012-00

Unavailable

10

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

11

NUT(6TA)

95307-04600-00

$8.49

12

SCREW PAN HEAD

98580-06575-00

Unavailable

13

WASHER, SPRING

92995-06100-00

Unavailable
