Description

Price

1

ADJUSTER, R. CHAIN

40544-MN1-670

$11.70

2

ADJUSTER, L. CHAIN

40545-MY6-670

$15.31

3

SPROCKET, FINAL DRIVEN (45T)

41201-MY6-700

$98.68

4

RETAINER, BEARING

41231-429-000

$29.54

5

AXLE, RR. WHEEL

42301-MY6-670

$82.14

6

COLLAR, RR. WHEEL SIDE

42312-MY6-670

$32.58

7

COLLAR, RR. WHEEL SIDE

42313-KZ1-670

$17.22

8

HUB, RR. WHEEL

42601-MN1-680

Unavailable

9

SPOKE SET A, RR.

42610-MY6-405

$4.85

10

SPOKE SET B, RR.

42611-MY6-405

$4.85

11

COLLAR, RR. AXLE DISTANCE

42620-KAE-000

$15.12

13

WHEEL SUB-ASSY., RR.

42650-MY6-305

Unavailable

14

RIM, RR. WHEEL (DAIDO) This part replaces 42701-MY6-671.

42701-MY6-672

$299.32

15

TIRE, RR. (4.60-18) (63S) (DUNLOP) This part replaces 42711-MY6-671.

42711-MY6-673

Unavailable

15

TIRE, RR. (4.60-18) (63S) (DUNLOP)

42711-MY6-673

Unavailable

16

TUBE, TIRE This part replaces 42712-KS7-641.

42712-KT1-673

$34.91

16

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$34.91

16

TUBE, TIRE This part replaces 42712-KV6-009.

42712-KT1-673

$34.91

16

TUBE, TIRE This part replaces 42712-300-004.

42712-KT1-673

$34.91

16

TUBE, TIRE This part replaces 42712-400-003.

42712-KT1-673

$34.91

17

FLAP, TIRE (1.85/2.15-18) (DUNLOP)

42713-300-004

$6.11

18

CAP, RIM HOLE

42717-329-000

$4.18

19

DISK, RR. BRAKE This part replaces 43251-KEA-000.

43251-MEE-000

$219.84

19

DISK, RR. BRAKE This part replaces 43251-MV4-000.

43251-MEE-000

$219.84

20

STOPPER, RR. AXLE

52162-KF0-000

$5.43

21

BOLT, DISK (8X22)

90105-MK5-010

$4.91

22

BOLT, SPROCKET FIXING

90125-MN1-671

$4.91

23

NUT, U (10MM)

90304-KAE-871

$4.31

24

NUT, AXLE (16MM)

90305-KE8-003

$8.54

25

WASHER, SPECIAL (11X21X2.3)

90438-463-000

$2.57

26

WASHER, PLAIN (16MM)

90559-469-000

$5.17

27

OIL SEAL (25X40X7)

91216-729-921

$7.42

27

OIL SEAL (25X40X7) This part replaces 91252-428-000.

91216-729-921

$7.42

28

BEARING, RADIAL BALL (6203U)

96140-62030-10

$11.42

29

BEARING, RADIAL BALL (6303U)

96140-63030-10

$13.90

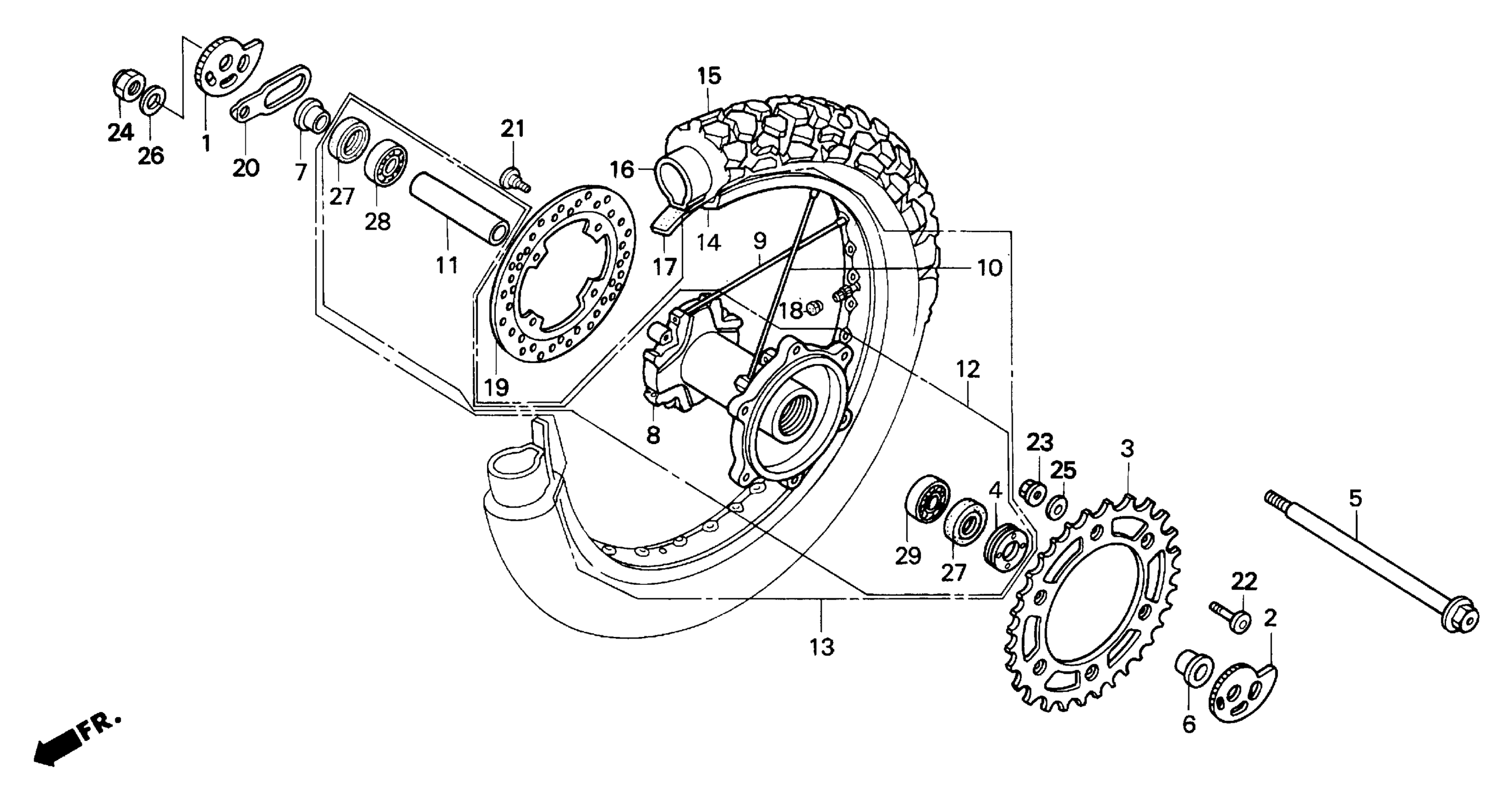

Honda XR650LA (94) MOTORCYCLE, JPN, VIN# JH2RD060-RM100007 TO JH2RD060-RM103099 REAR WHEEL Diagram

HUB, RR. WHEEL

WHEEL SUB-ASSY., RR.

TIRE, RR. (4.60-18) (63S) (DUNLOP) This part replaces 42711-MY6-671.

TIRE, RR. (4.60-18) (63S) (DUNLOP)
