Description

Price

1

GUIDE, LIFTER ROD

15171-KN8-000

$14.38

2

MAINSHAFT, TRANSMISSION (13T)

23211-MN1-670

Unavailable

3

COUNTERSHAFT

23220-MN9-980

Unavailable

4

GEAR, COUNTERSHAFT LOW (31T)

23411-MN1-670

Unavailable

5

GEAR, MAINSHAFT SECOND (17T)

23421-MN9-641

$65.02

6

BUSH (20MM)

23422-MG2-000

$22.23

7

GEAR, COUNTERSHAFT SECOND (28T)

23431-MN9-000

$142.85

8

BUSH (25MM)

23432-MK2-000

$27.00

9

BUSH (25MM)

23432-MN1-670

$27.00

10

GEAR, MAINSHAFT THIRD (20T)

23441-MK2-000

Unavailable

11

GEAR, COUNTERSHAFT THIRD (25T)

23451-MN9-000

$133.06

12

GEAR, MAINSHAFT FOURTH (23T)

23461-MN1-671

Unavailable

13

GEAR, COUNTERSHAFT FOURTH (23T) This part replaces 23471-MN1-670.

23471-MN9-000

$173.98

13

GEAR, COUNTERSHAFT FOURTH (23T)

23471-MN9-000

$173.98

14

GEAR, MAINSHAFT FIFTH (25T)

23481-MN1-670

Unavailable

15

BUSH, SPLINE (28MM)

23485-369-000

$28.60

16

GEAR, COUNTERSHAFT FIFTH (21T)

23491-MN9-000

$158.52

17

PLATE, BEARING SETTING

23531-MG2-790

$4.31

18

SPROCKET, DRIVE (14T)

23801-MN1-680

Unavailable

19

PLATE, FIXING

23811-MN8-000

$11.28

20

GEAR, KICK STARTER IDLE (33T)

28221-MN1-670

Unavailable

21

BUSH (16MM)

28222-MG3-000

Unavailable

22

BOLT, FLANGE SOCKET (6X14)

90071-MF5-000

$3.33

23

BOLT, FLANGE

90118-958-003

$3.23

24

WASHER, THRUST (25MM)

90412-ZE5-000

$5.00

25

PLATE, THRUST (20MM)

90451-MG3-000

$4.00

26

WASHER, THRUST (25MM)

90451-413-000

$2.25

27

CIRCLIP (25MM)

90601-107-000

$3.73

28

BEARING, RADIAL BALL (6305) (TOYO)

91002-MG2-791

$39.71

29

BEARING, RADIAL BALL (5205A)

91002-422-008

$66.14

30

BEARING, RADIAL BALL (6204U) This part replaces 91003-MK2-680.

96140-62040-10

$20.95

30

BEARING, RADIAL BALL (6204U)

96140-62040-10

$20.95

31

BEARING, NEEDLE (20MM)

91022-MG2-791

$45.23

32

OIL SEAL (25X45X7) (ARAI)

91204-MG3-003

$9.41

33

OIL SEAL (20X35X5.5) (ARAI)

91204-216-003

$6.28

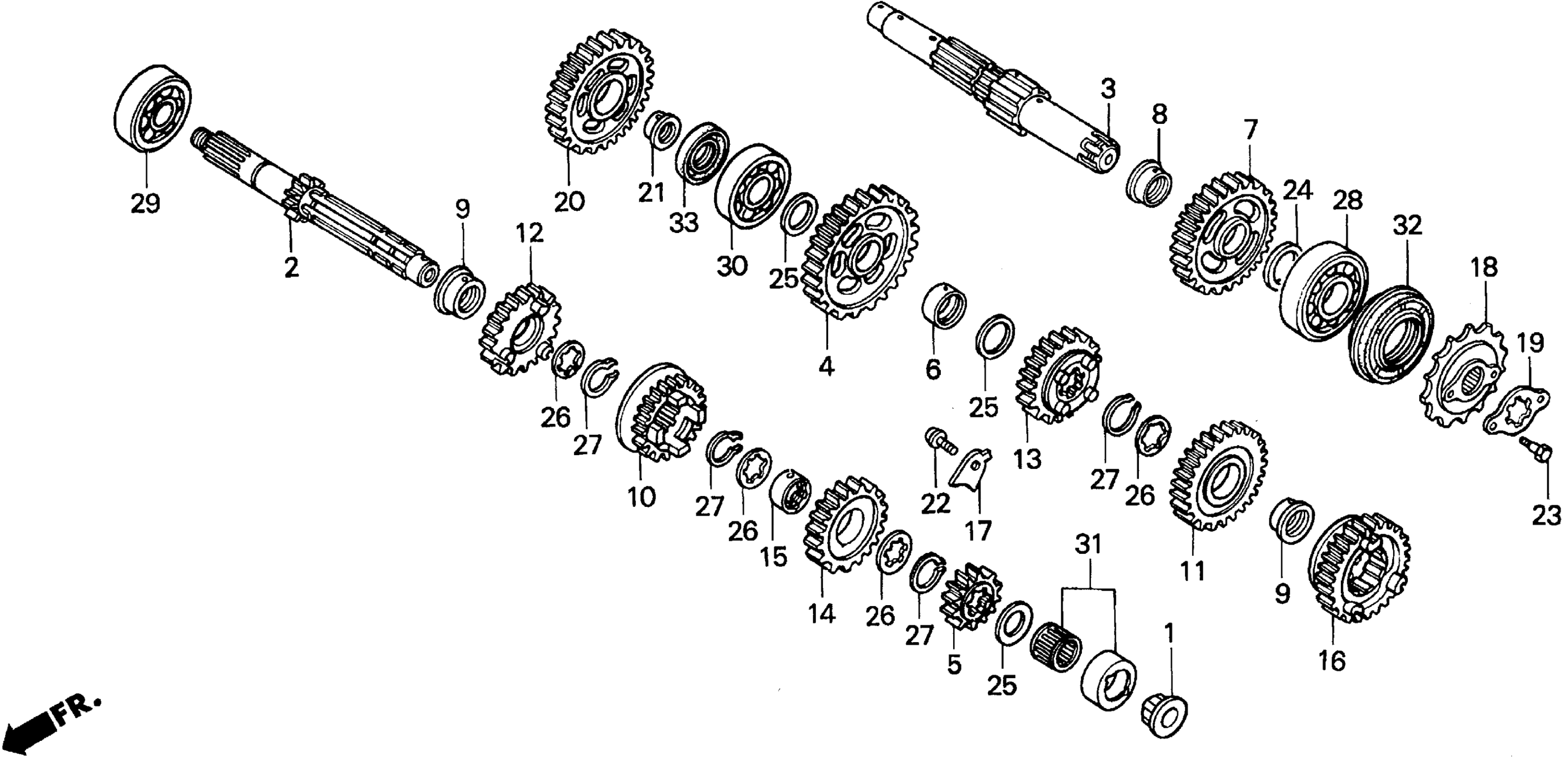

Honda XR600RA (97) MOTORCYCLE, JPN, VIN# JH2PE040-VM200001 TO JH2PE040-VM201508 TRANSMISSION Diagram

MAINSHAFT, TRANSMISSION (13T)

COUNTERSHAFT

GEAR, COUNTERSHAFT LOW (31T)

GEAR, MAINSHAFT THIRD (20T)

GEAR, MAINSHAFT FOURTH (23T)

GEAR, MAINSHAFT FIFTH (25T)

SPROCKET, DRIVE (14T)

GEAR, KICK STARTER IDLE (33T)

BUSH (16MM)
