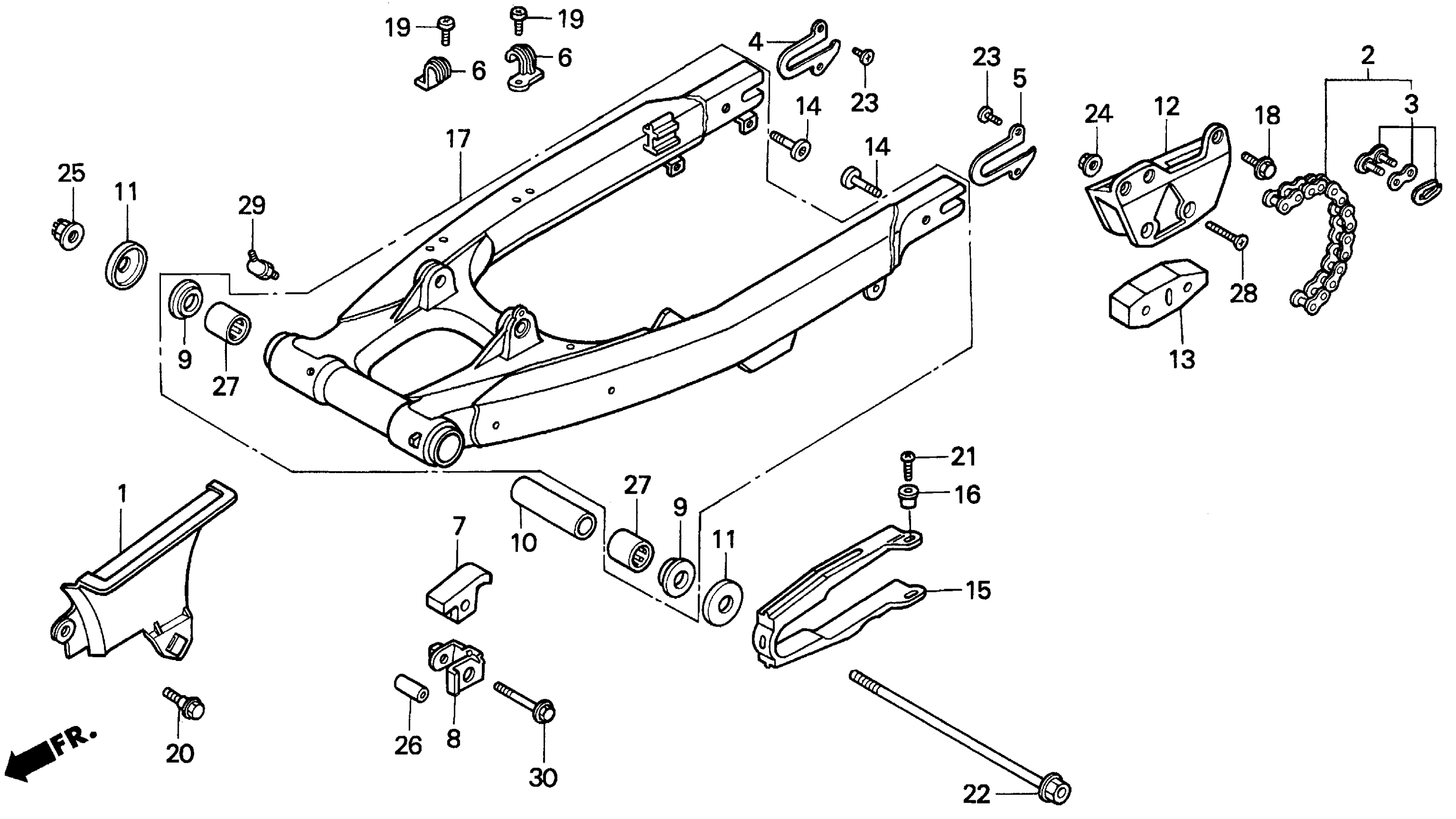

Honda XR600RA (97) MOTORCYCLE, JPN, VIN# JH2PE040-VM200001 TO JH2PE040-VM201508 SWINGARM Diagram

#

Description
Price

1

CASE, DRIVE CHAIN

40510-KT1-780

$25.24

2

CHAIN, DRIVE (DID520V.8-110FJ) (D-F16) (DAIDO)

40530-MN1-681

Unavailable

2

CHAIN, DRIVE (RK520M04X110FJ)

40530-MN1-682

Unavailable

3

MASTER LINK

40531-MN1-682

Unavailable

3

MASTER LINK (DAIDO)

40531-MN1-672

$7.05

4

WASHER, R. RR. SWINGARM

42307-KT1-770

Unavailable

5

WASHER, L. RR. SWINGARM

42308-KT1-770

Unavailable

6

GUIDE, RR. BRAKE HOSE

43468-KAE-000

$5.43

7

SLIPPER, CHAIN

50911-MN1-670

$23.51

8

STAY, CHAIN SLIPPER

50912-MN1-670

$15.80

9

BUSH, PIVOT THRUST

52109-430-300

$15.36

10

COLLAR, SWINGARM

52141-MN1-670

$64.38

11

CAP, SWINGARM DUST SEAL (NOK)

52144-356-005

$16.61

12

GUIDE, CHAIN

52146-KT1-770

$35.87

13

SLIDER, CHAIN GUIDE

52147-KN5-005

$14.77

14

PIN, CHAIN ADJUSTER

52156-KV6-000

$10.94

15

SLIDER, CHAIN

52170-MN1-681

$55.15

16

WASHER, CHAIN SLIDER

52171-KR6-000

$2.49

17

SWINGARM SET This part replaces 52200-MN1-305.

52200-MN1-306

Unavailable

18

BOLT, FLANGE (6X16)

90103-MY6-670

$3.71

19

SCREW, PAN (5X10)

90104-ML7-920

$2.92

20

BOLT, FLANGE (6MM)

90111-KT1-780

$13.96

21

SCREW, PAN (5X8)

90115-KV3-700

$2.52

22

BOLT, SWINGARM PIVOT

90121-KK3-830

$33.62

23

SCREW, FLAT (5X4)

90124-KA3-711

$5.85

24

NUT, U (6MM)

90301-473-003

$4.05

25

NUT, U (14MM)

90305-GE8-003

$3.84

26

COLLAR, CHAIN SLIPPER

90501-MN1-680

$3.66

27

BEARING, NEEDLE (20X26X20) (NTN)

91070-GC4-601

$23.73

28

SCREW, FLAT (6X45)

93600-06045-0A

$0.91

29

NIPPLE, GREASE (B.T6S)

96201-80000

$2.48

30

BOLT, FLANGE (6X32)

96400-06032-00

$1.74
