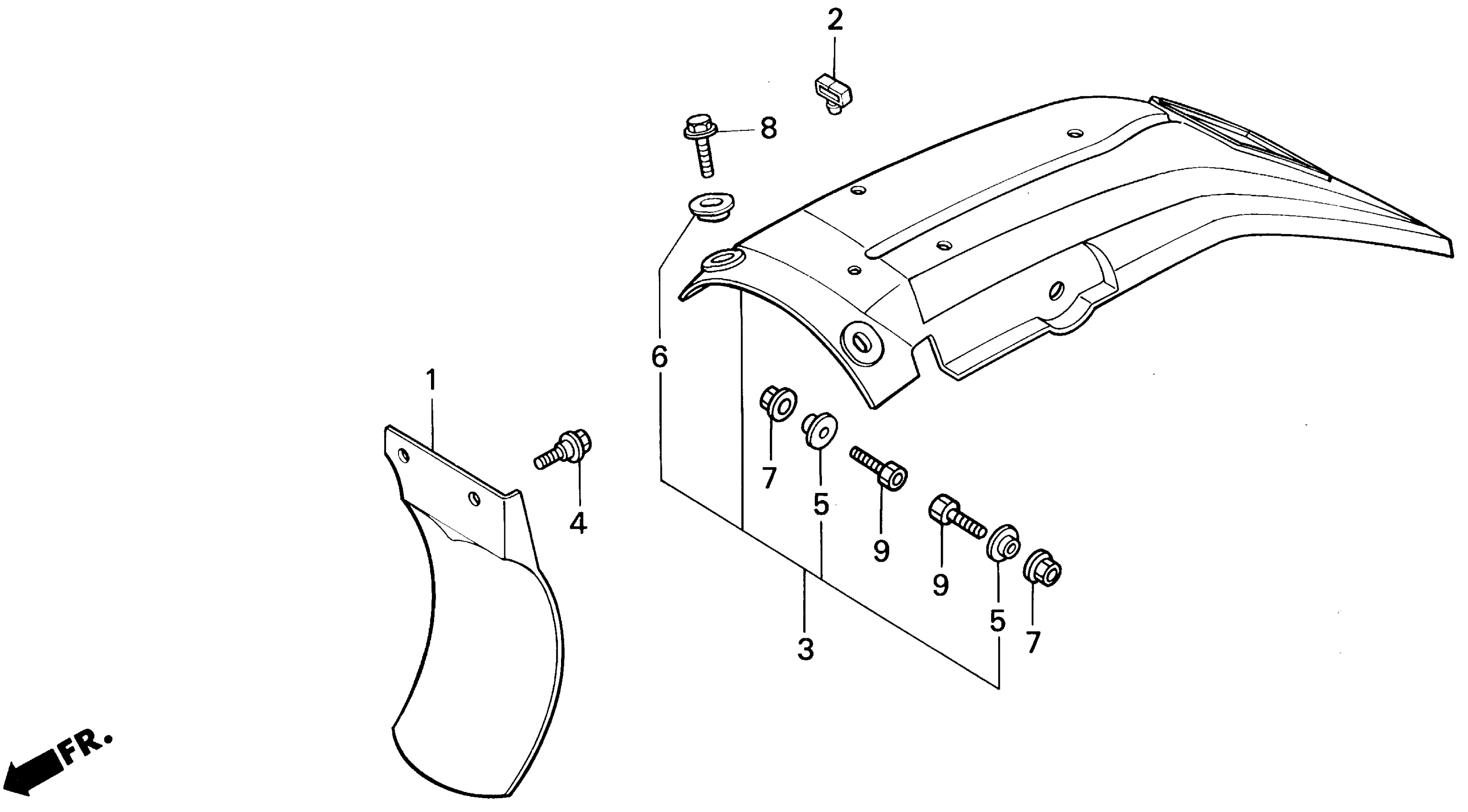

Honda XR600RA (97) MOTORCYCLE, JPN, VIN# JH2PE040-VM200001 TO JH2PE040-VM201508 REAR FENDER Diagram

#

Description
Price

1

SPLASH GUARD A, AIR CLEANER HOUSING

17245-MN1-670

$18.26

2

GROMMET, WIRE

32985-300-000

$3.33

3

FENDER, RR. *NH138* (SHASTA WHITE) FENDER, RR. *R134*

80100-MN1-670ZB

Unavailable

4

BOLT, FLANGE (6MM)

90112-GC6-000

$3.77

5

WASHER (6X20)

90512-300-000

$3.99

6

WASHER (6X9)

90513-323-000

$1.77

7

NUT, FLANGE (6MM)

94050-06000

$0.63

8

BOLT, FLANGE (6X14)

96300-06014-00

$0.91

9

BOLT, SOCKET (6X25)

96700-06025-00

$1.74
