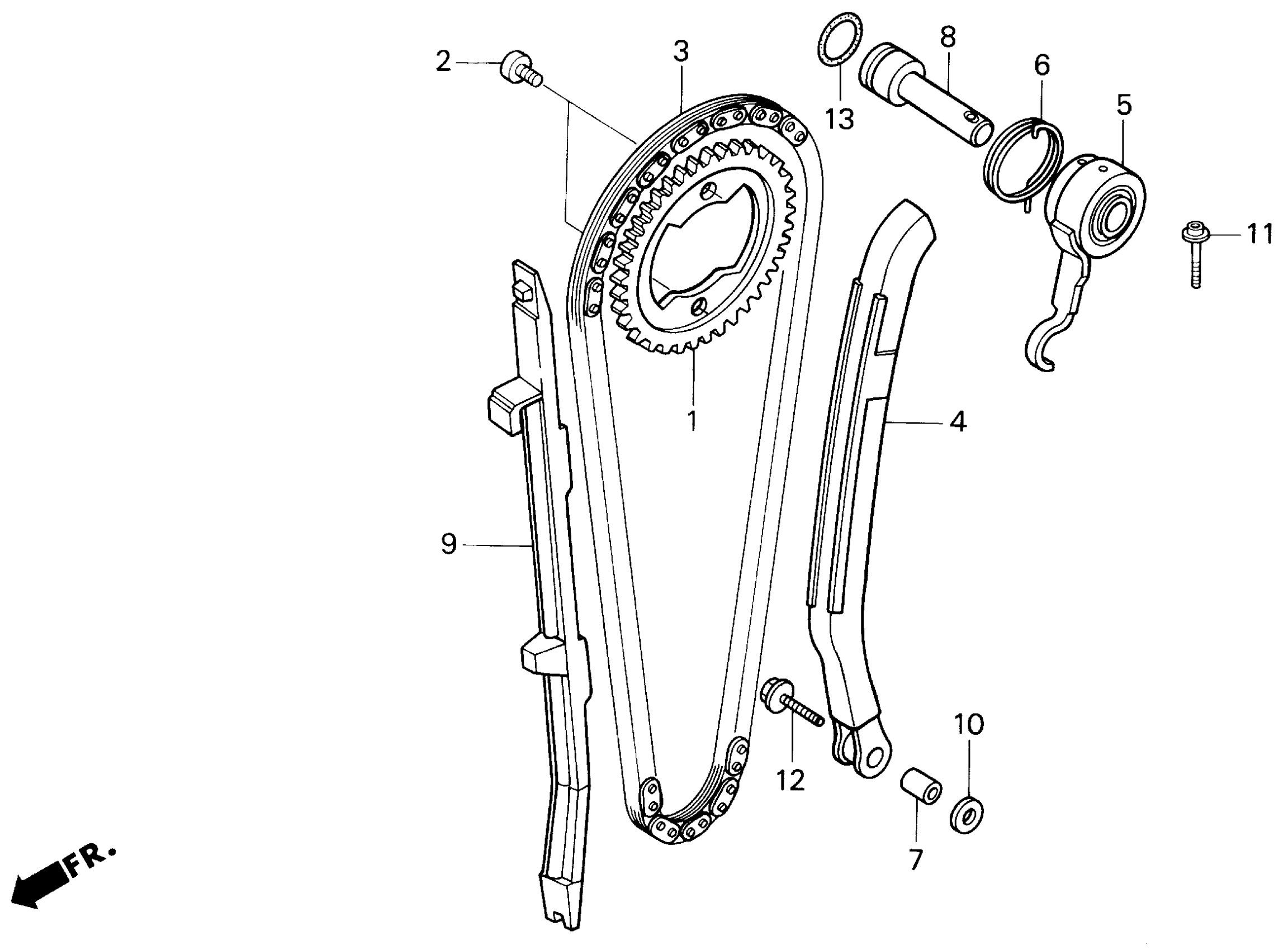

Honda XR600RA (97) MOTORCYCLE, JPN, VIN# JH2PE040-VM200001 TO JH2PE040-VM201508 CAM CHAIN Diagram

#

Description
Price

1

SPROCKET, CAM (38T)

14321-MN1-670

$37.34

2

BOLT, SPECIAL KNOCK (7X10.4)

14322-MN1-670

$7.85

3

CHAIN, CAM (118L) (BORG WARNER)

14401-MN1-671

$126.24

4

TENSIONER, CAM CHAIN

14511-MN1-670

Unavailable

5

LIFTER, DAMPER

14512-MG3-000

$65.72

6

SPRING, CAM CHAIN TENSIONER

14514-MG3-000

$6.21

7

COLLAR, TENSIONER (6X9)

14515-KF0-000

$5.76

8

SHAFT, TENSIONER LOCK

14516-MN1-670

$30.09

9

GUIDE, CAM CHAIN

14620-MN1-770

$56.75

10

WASHER (6.5MM) (NOT AVAILABLE)

22415-551-000

Unavailable

11

BOLT, SOCKET (6X20)

90003-KN8-730

$3.20

12

BOLT, FLANGE (6X25)

90088-MK4-600

Unavailable

13

O-RING (14.5X2.4) (ARAI)

91303-MG2-792

$3.19
