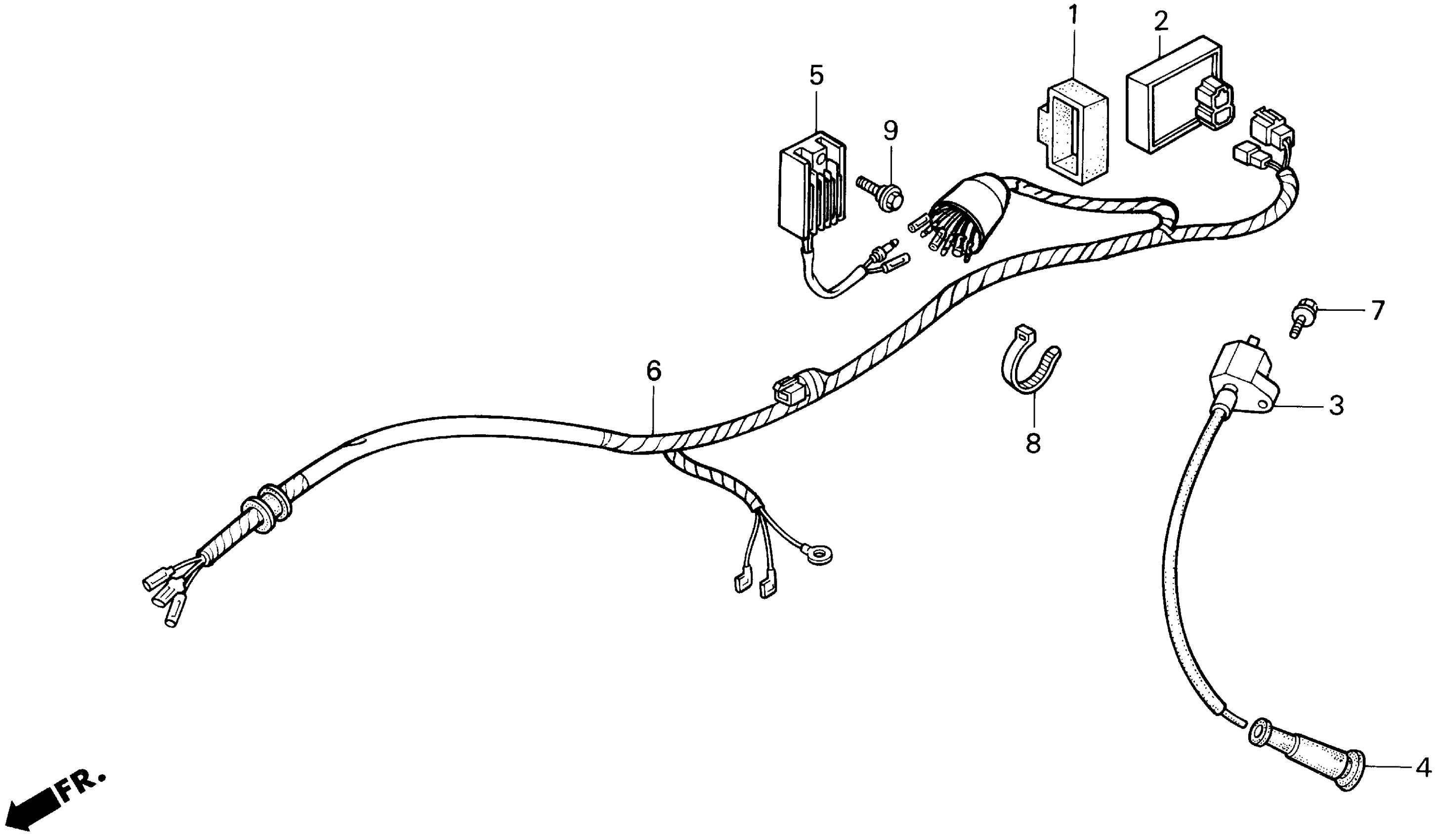

Honda XR600RA (94) MOTORCYCLE, JPN, VIN# JH2PE040-RM900001 TO JH2PE040-RM903011 WIRE HARNESS Diagram

#

Description

Price

1

CUSHION, IGNITION CONTROL MODULE (CDI) This part replaces 30401-KK0-770.

30401-KT1-670

$5.50

2

MODULE, IGNITION CONTROL (CDI)

30410-MN1-670

Unavailable

3

COIL, IGNITION

30510-MN1-680

$74.05

4

CAP ASSY. This part replaces 30700-KF0-163.

30700-MK4-612

$19.09

4

CAP ASSY. This part replaces 30700-MK4-611.

30700-MK4-612

$19.09

5

REGULATOR, A.C.

31400-MN1-680

$168.82

6

WIRE HARNESS

32100-MN1-680

Unavailable

7

BOLT, FLANGE (5X20)

90197-MN5-000

$2.55

8

BAND, WIRE (BLACK)

90652-KT1-771

$4.46

9

BOLT, FLANGE (6X30) This part replaces 96500-06030-00.

96300-06030-00

$1.94

9

BOLT, FLANGE (6X30)

96300-06030-00

$1.94
