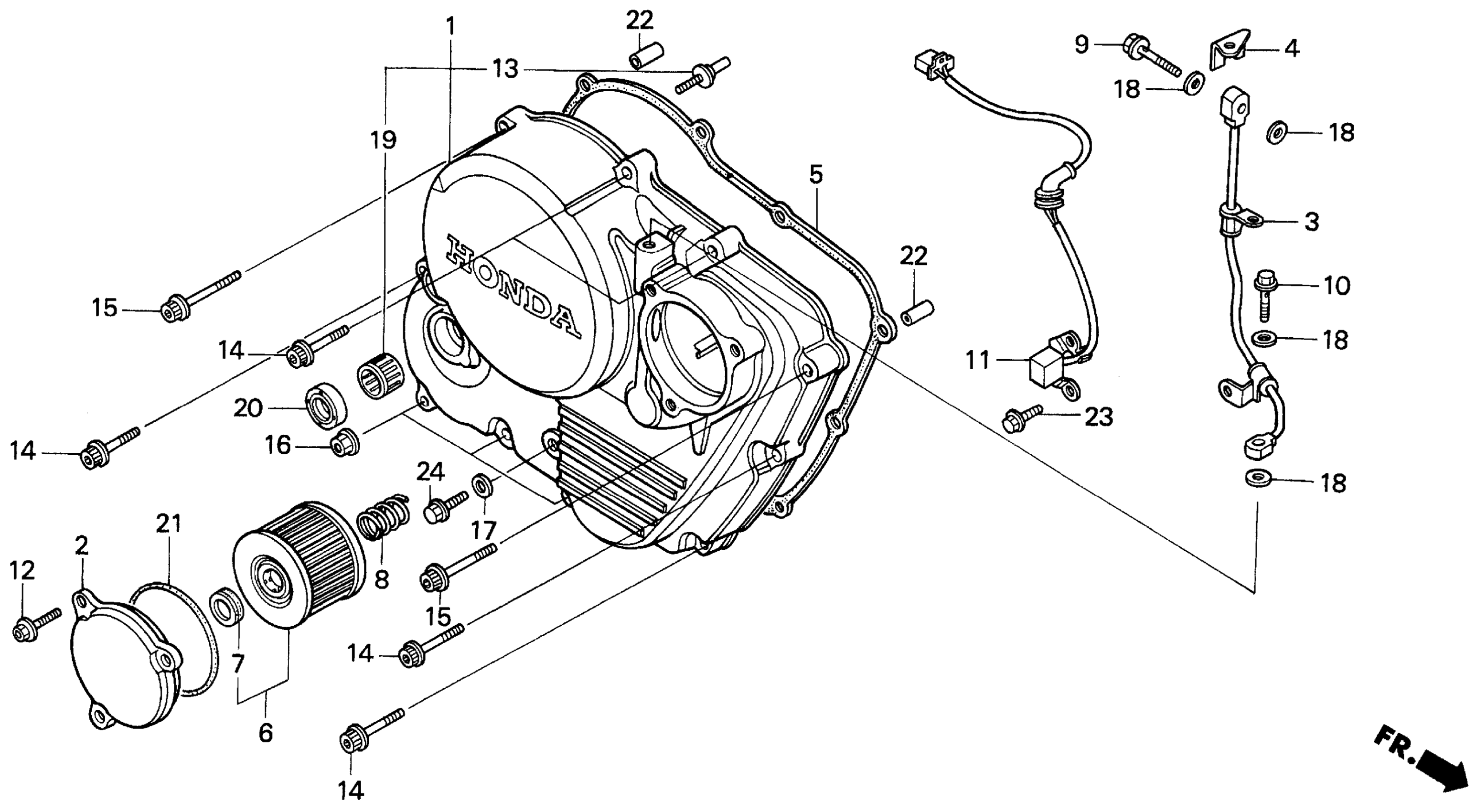

Honda XR600RA (00) MOTORCYCLE, JPN, VIN# JH2PE040-YK600001 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE

11330-MN1-680

Unavailable

2

COVER, OIL FILTER

11333-MN1-870

$47.69

3

PIPE, OIL PASSAGE

11335-MN9-000

$63.72

4

STOPPER, OIL PIPE

11336-MN1-670

$12.05

5

GASKET, R. CRANKCASE COVER

11394-MN1-700

$20.42

6

ELEMENT, OIL FILTER This part replaces 15410-KF0-305.

15410-KF0-315

$5.82

6

ELEMENT, OIL FILTER

15410-KF0-315

$5.82

6

ELEMENT, OIL FILTER This part replaces 15412-KF0-010.

15410-KF0-315

$5.82

7

RUBBER, FILTER

15413-MC8-000

Unavailable

8

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.22

9

BOLT, FLANGE (8X30)

15531-KN8-730

$7.83

10

BOLT, FLANGE (8X30)

15532-MA6-000

$8.84

11

GENERATOR ASSY., PULSE

30300-MN1-680

$75.27

12

BOLT, SOCKET (6X18)

90002-KN8-730

Unavailable

13

BOLT, SPECIAL (6MM)

90041-MG3-000

Unavailable

14

BOLT, FLANGE SOCKET (6X25)

90080-MG8-000

$3.87

15

BOLT, SOCKET (6X40)

90007-KN8-730

$4.54

15

BOLT, SOCKET (6X40) This part replaces 90093-KL8-000.

90007-KN8-730

$4.54

16

NUT, U (6MM)

90301-473-003

$4.05

17

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

18

GASKET

90544-439-930

Unavailable

19

BEARING, NEEDLE (20X26X12) (NTN) This part replaces 91106-KF0-008.

91051-V19-003

$19.73

20

OIL SEAL (20X32X6) This part replaces 91201-444-005.

91202-KJ9-003

$4.73

20

OIL SEAL (20X32X6) This part replaces 91202-KJ9-000.

91202-KJ9-003

$4.73

20

OIL SEAL (20X32X6)

91202-KJ9-003

$4.73

21

O-RING (54X2.4) (ARAI)

91302-KF0-003

$3.45

22

PIN, DOWEL (8X20)

94301-08200

$2.89

23

BOLT, FLANGE (6X16)

95701-06016-00

$1.57

24

BOLT, FLANGE (6X12)

95701-06012-00

$2.12
